Schneider SPM3KI-TR

SPM 3000VA 2700W 230V On-Line Easy UPS

High-Quality Power Protection:

The Schneider SPM3KI-TR SPM 3000VA 2700W 230V On-Line Easy UPS is designed for essential power protection needs, particularly in environments with unstable power conditions.
This double-conversion online UPS ensures high-quality performance, providing uninterrupted power to critical systems.

Key Specifications and Run Time:

This UPS supports a load range of 270W to 2700W, with a maximum run time of 2 minutes and 7 seconds at full load.
It operates at 230V, with options for 220V and 240V output, making it versatile for different power requirements.
The unit's efficiency stands at 90% at full load, contributing to energy savings and operational reliability.

Input and Output Versatility:

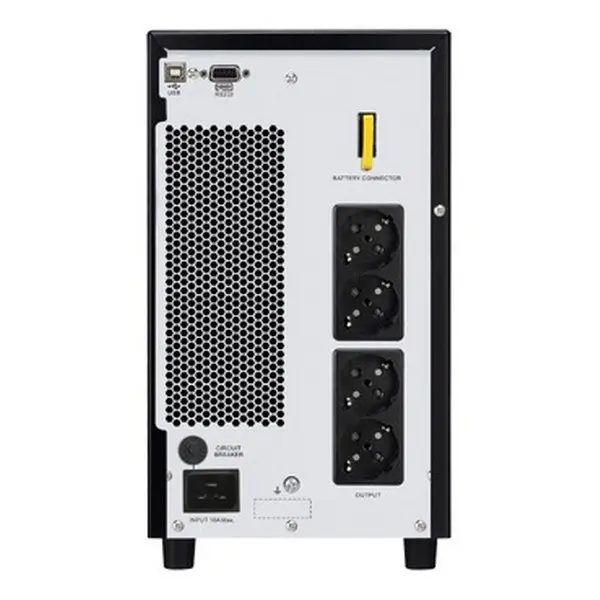

The main input voltage for the UPS is 230V, with compatibility for 220V and 240V. It features a Schuko input connection type and provides four Schuko output connections.
The UPS comes with a 1.50m cable and includes essential accessories such as an IEC 60320 C19 to Schuko power cable, USB cable, RS-232 configuration cable, and a user manual.

Battery and Runtime Efficiency:

Equipped with a lead-acid battery, the UPS operates at a battery voltage of 72V. The battery recharge time is 4 hours, with a charger power rated at 118W.
It does not support extended runtime or additional battery slots, but replacement batteries (APCRBCV205) are available to ensure continued performance.

Compact and Durable Design:

The UPS has a compact design with dimensions of 33.6 cm in height, 19 cm in width, and 42.5 cm in depth.
It weighs 25.3 kg and features a sleek black color (RAL 7010). The unit is designed for vertical mounting and is not rack-mountable, making it suitable for various installation environments.

Advanced Input and Output Features:

The UPS operates within an input voltage limit range of 110 to 285V at half load and 180 to 280V at full load.
It supports a network frequency range of 40 to 70 Hz with auto-sensing capabilities.
The output frequency is 50/60 Hz with a harmonic distortion of 3%, providing a clean sine wave output ideal for sensitive electronic equipment.

Comprehensive Protection and Conformance:

The Schneider SPM3KI-TR SPM UPS features an internal bypass (both automatic and manual) and a crest factor of 3:1. It meets CE product certifications and provides an IP20 degree of protection.
The unit is equipped with alarms for battery status, low battery, and overload conditions, ensuring users are always informed of the UPS status.

Environmental and Operational Resilience:

Designed to operate in ambient temperatures ranging from 0 to 40°C and relative humidity levels from 0 to 95% (non-condensing), the UPS is built to perform in diverse environments.
It can operate at altitudes up to 3000 meters and be stored at altitudes up to 15000 meters.
The acoustic level of the UPS is maintained at a low 50 dBA, ensuring minimal noise disruption.

Enhanced Communication and Management:

The UPS is USB compatible and features a multifunction LCD status and control console for easy management and monitoring.
Surge protection is rated at 300 J, providing additional security against power surges and spikes.

Sustainability and Warranty:

Schneider Electric’s Green Premium™ label highlights the UPS's commitment to environmental performance, compliance with regulations, and low-CO2 design.
The unit comes with a 2-year repair or replace warranty, ensuring peace of mind and long-term reliability.

The Schneider SPM3KI-TR SPM 3000VA 2700W 230V On-Line Easy UPS is an ideal solution for protecting critical systems from power interruptions.
Its high efficiency, advanced features, and robust design make it a reliable choice for both commercial and residential applications.
