APC SRV10KIL Easy On-Line UPS, 10000VA/10000W, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime, Tower

APC SRV10KIL Easy On-Line UPS - Description

10000VA/10000W, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime, Tower

High-Capacity Double-Conversion Online UPS for Critical Power Protection:

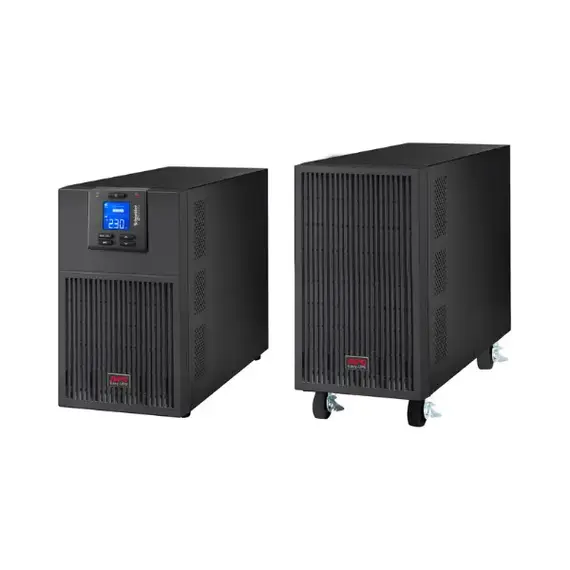

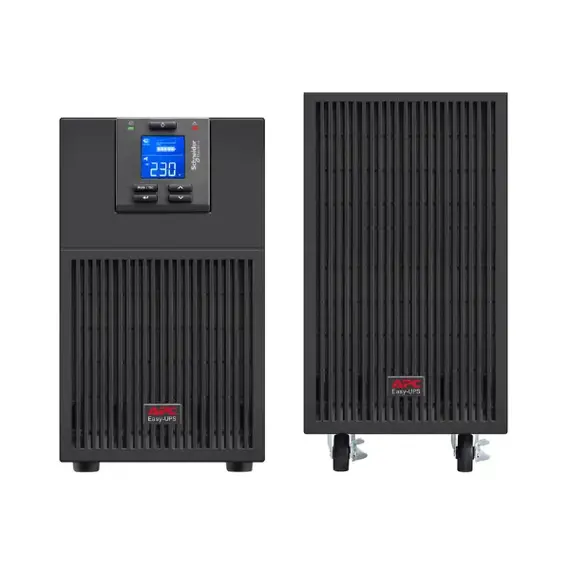

APC SRV10KIL Easy On-Line UPS is a powerful and reliable uninterruptible power supply solution designed specifically for IT professionals, data centers, and critical business operations. With a robust power capacity of 10,000VA / 10,000W, this single-phase UPS ensures uninterrupted power delivery during outages and fluctuations. Featuring double-conversion online technology, it delivers consistent, pure sine wave output, making it ideal for sensitive and high-performance equipment.

User-Friendly LCD Display and Intelligent Monitoring:

Equipped with a multifunction LCD control panel, the APC SRV10KIL UPS provides real-time insights into operational status, power conditions, and system alerts. The intuitive interface simplifies monitoring and management, making it easy to access detailed information even in high-stress scenarios. The UPS also includes an intelligent card slot, allowing users to integrate advanced monitoring or remote management solutions.

Energy Efficiency and Eco Mode Functionality:

Despite its high power output, the UPS is designed to operate with maximum energy efficiency. It achieves up to 94% efficiency at full load in eco mode, which helps lower energy costs and reduce heat generation. The internal automatic and manual bypass ensures uninterrupted operation during maintenance or overload events, enhancing system resilience and uptime.

Flexible Input and Output Configuration:

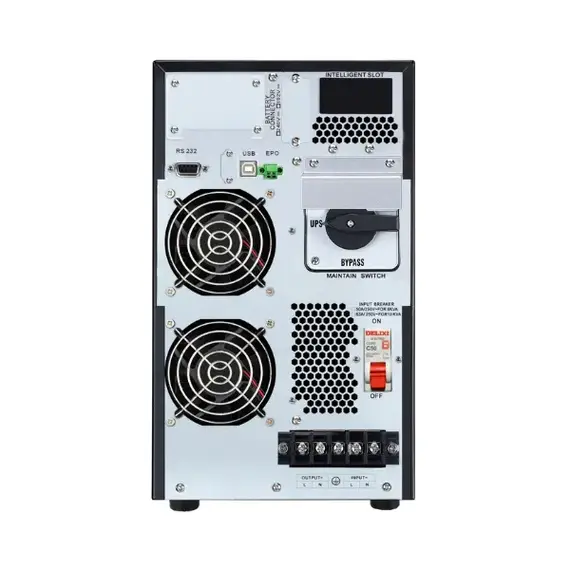

The unit supports input voltages from 110V to 300V and operates at 230V output by default, configurable to 220V or 240V to meet local standards. It features a hard wire 3-wire (1P+N+E) connection for both input and output. The UPS supports 50/60 Hz auto-sensing, making it suitable for various regional and international installations.

Extended Runtime and Scalable Battery Support:

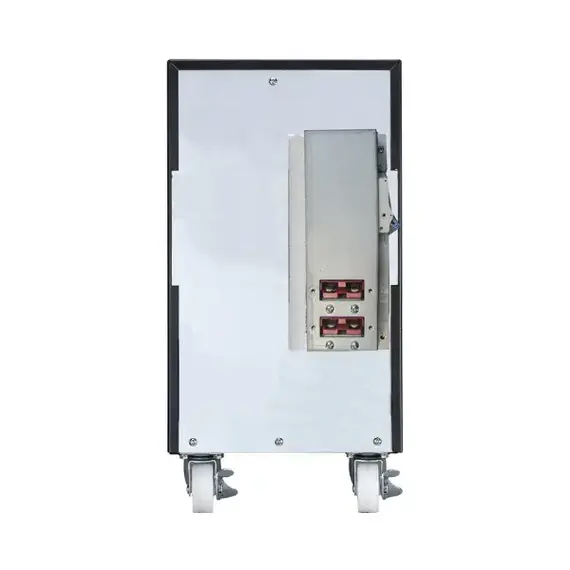

One of the standout features of this UPS is its extended runtime capability. Users can connect up to four external battery packs (SRV240BP-9A) to significantly extend backup time. With a default runtime of 2 minutes and 32 seconds at full load, the modular battery expansion allows the system to adapt to diverse runtime requirements. The lead-acid battery is rated for 3 to 5 years and can be fully recharged in approximately 5 hours, ensuring reliable long-term performance.

Rugged Build for Professional Environments:

This tower-style UPS is built for front mounting in server rooms, control centers, and high-demand environments. Measuring 36.8 x 38 x 48.5 cm and weighing 76.5 kg, the unit is sturdy and stable. With an IP20 protection rating and operating temperature range of 0–40°C, it's engineered to perform in demanding conditions, including up to 3000 meters above sea level.

Advanced Safety, Surge Protection, and Communication:

The APC SRV10KIL includes 600 Joules of surge protection and audible alarms for battery mode, overload, and low battery levels. It comes with RS-232 and USB cables, plus an emergency power off (EPO) function for added safety. Compliance with global standards like CE, UKCA, and EAC, and adherence to IEC 62040 norms ensure international compatibility and reliability.

Reliable Warranty and Long-Term Value:

Backed by a 2-year repair or replace warranty, the APC SRV10KIL Easy UPS offers peace of mind and a strong return on investment. With high efficiency, extended runtime, intelligent features, and superior build quality, this UPS is a comprehensive power protection solution for mission-critical environments.
