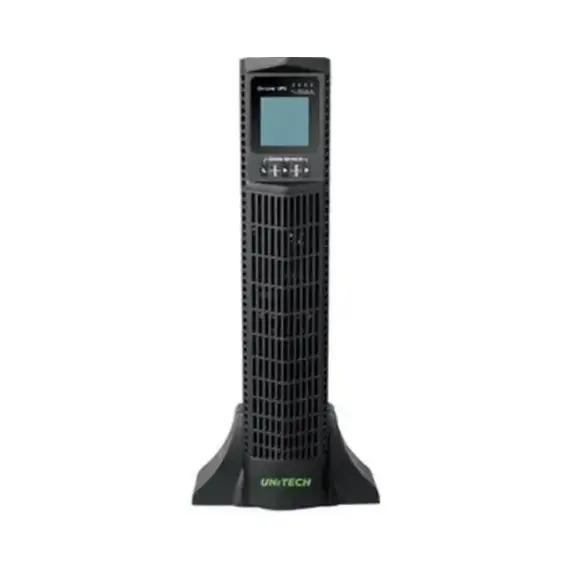

Unitech ASG1000-0-RT On-Line UPS, 1000VA/900W, Rack/Tower

Unitech ASG1000-0-RT On-Line UPS - Description

1000VA/900W, Rack/Tower

High Capacity and Versatile Input Options:

Unitech ASG1000-0-RT On-Line UPS offers a robust capacity of 1000VA/900W, making it an excellent choice for maintaining stable power to sensitive equipment. Designed with single-phase input and grounded configurations, it supports a wide range of nominal voltages, from 100Vac to 240Vac, ensuring flexibility across different setups. The input voltage range adjusts dynamically to varying loads, offering stable operation at 60% and 100% load levels. Auto-detection of frequency between 45Hz and 65Hz enhances adaptability to fluctuating power sources.

Consistent Output Performance and Precision:

This UPS delivers pure sinewave output with a remarkable voltage regulation of ±1%, ensuring consistent performance. Its power factor options of 0.9 or 0.8 suit various applications, while harmonic distortion (THDv) remains minimal—≤3% for linear loads and ≤6% for non-linear loads. The zero transfer time from AC to DC and a typical 4ms inverter-to-bypass transfer ensure seamless operation during power interruptions. The system operates within a synchronized frequency range of 45–64Hz, guaranteeing precision and stability for connected devices.

Efficient Operation in AC and Battery Modes:

Unitech ASG1000-0-RT boasts high efficiency in both AC and battery modes, with rates of 88% and 83%, respectively. Equipped with two 12V/9AH batteries, it provides adequate backup time, displayed in real-time on the LCD panel. The standard model features a quick recharging time of 4 hours to restore 90% capacity, while long-run models allow for customization with external battery configurations and higher charging currents. This adaptability ensures reliable power backup tailored to specific needs.

Advanced Monitoring and Alerts:

An intuitive LCD display keeps users informed with indicators for load levels, battery status, and operating modes, including AC, battery, bypass, and fault conditions. Audible alarms provide immediate alerts for battery mode, low battery, overload, or fault conditions, ensuring users stay aware of system status. These features enhance reliability and prevent unexpected disruptions.

Compact Design and Silent Operation:

With dimensions of 430×440×86.5 mm and a net weight of 13.9 kg for the standard model, the UPS combines compactness with portability. Its noise level of less than 50 dB ensures quiet operation, making it suitable for office and residential environments. The system operates efficiently under humidity levels of 20–90% RH and temperatures from 0°C to 40°C.

Comprehensive Management Capabilities:

The UPS supports advanced management options, including Smart RS-232/USB interfaces and optional SNMP compatibility. Users can monitor and control power conditions through SNMP managers or web browsers on various operating systems, such as Windows, Linux, FreeBSD, and macOS. This feature makes the UPS a versatile solution for modern networked environments.
