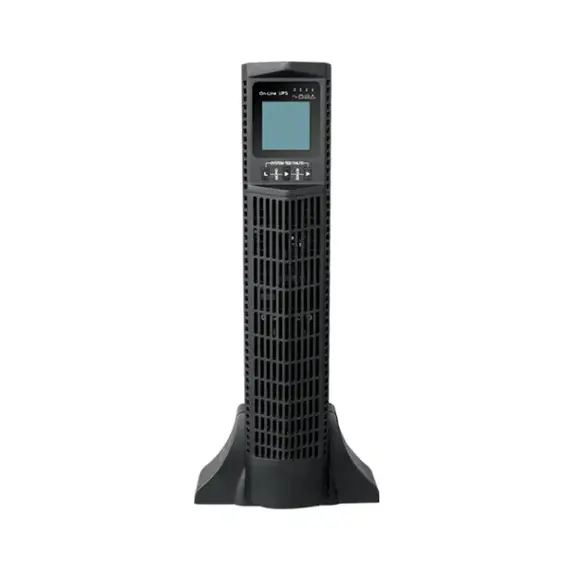

Unitech ASG3000-0-RT On-Line UPS, 3000VA/2700W, Rack/Tower

Unitech ASG3000-0-RT On-Line UPS - Description

3000VA/2700W, Rack/Tower

Superior Input Performance for Stable Operation:

Unitech ASG3000-0-RT On-Line UPS offers exceptional input adaptability, supporting single-phase power with a wide nominal voltage range from 200V to 240V or 100V to 127V. With an extended input voltage range (55–150V or 110–300V at 60% load and 80–145V or 160–300V at 100% load), this UPS is engineered to handle fluctuating power conditions. The frequency auto-detection capability ensures seamless compatibility with 45–55Hz or 55–65Hz frequencies. A power factor of ≥0.99 at full load minimizes energy loss and optimizes efficiency.

Precise Output Control with Advanced Features:

This UPS delivers consistent and reliable output with a selectable voltage range of 200V to 240V or 100V to 127V. Designed with a power factor of 0.9 or 0.8, it provides stable voltage regulation within ±1%. In battery mode, it maintains frequency accuracy of ±0.1Hz, ensuring smooth operation of sensitive equipment. The pure sinewave output waveform, with minimal harmonic distortion (≤3% for linear loads and ≤6% for non-linear loads), guarantees clean and reliable power delivery.

Efficient Operation and Seamless Transfer:

Unitech ASG3000-0-RT boasts high efficiency rates of 90% in AC mode and 86% in battery mode, reducing energy waste and operational costs. It supports zero transfer time from AC to DC, with a minimal 4ms inverter-to-bypass switch, ensuring uninterrupted power delivery to connected devices. This feature is critical for mission-critical applications.

Dependable Battery System for Extended Backup:

Equipped with six 12V/9AH batteries, this UPS ensures robust energy storage. The LCD display provides real-time backup time estimates, while the rapid recharging system restores 90% capacity in just four hours. The maximum charging current of 1.0A and precise charging voltage (82.1Vdc ±1%) enhance battery longevity and reliability.

User-Friendly Indicators and Alarm System:

The UPS features an intuitive LCD panel displaying load level, battery level, and operational modes. Audible alarms notify users of battery mode, low battery, overload, and fault conditions, enabling swift action to safeguard equipment.

Compact Design with Versatile Management Options:

With dimensions of 710×440×86.5 mm and a lightweight design of 23.3 kg, the UPS is suitable for rack or tower installations. Its noise level remains under 50dB, ensuring a quiet operating environment. The smart RS-232/USB interfaces, along with optional SNMP support, enable seamless power management across multiple operating systems, including Windows, Linux, FreeBSD, and macOS.

Optimized for Challenging Environments:

This UPS operates efficiently in 20–90% relative humidity and temperatures from 0–40°C. Its robust build ensures reliable performance even in demanding conditions, making it a versatile choice for diverse applications.
