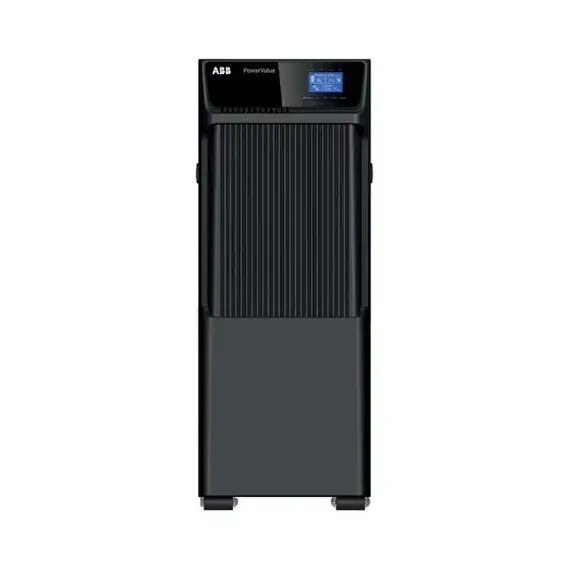

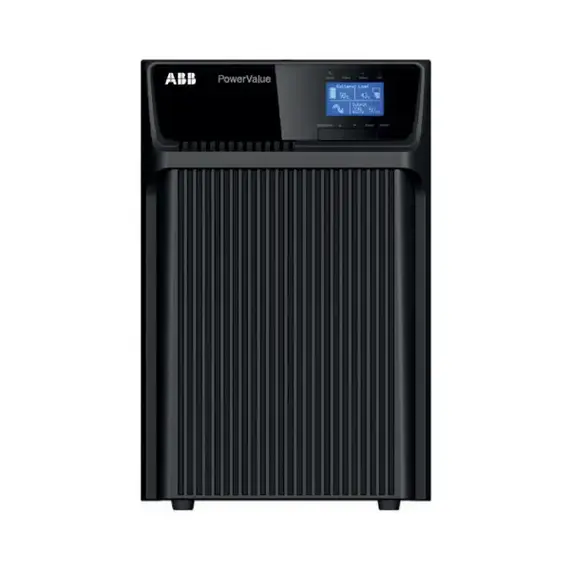

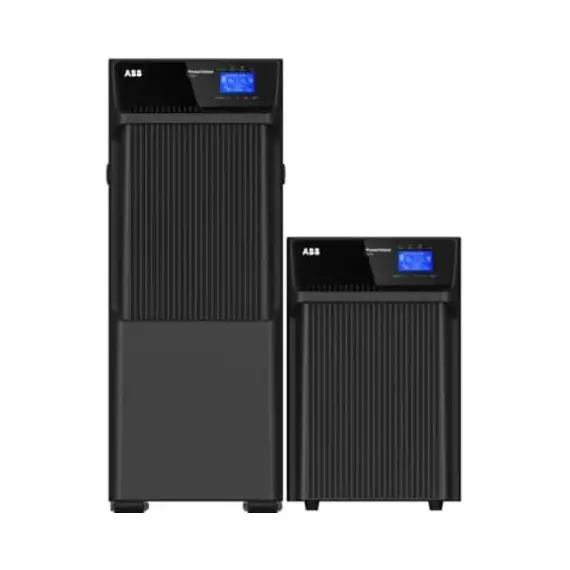

ABB 11T G2 6KVA B On-Line UPS, 6000VA/6000W, Tower

ABB 11T G2 6KVA B On-Line UPS - Description

6000VA/6000W, Tower

High-Performance Power Backup with 1.0 Power Factor:

ABB 11T G2 6KVA B On-Line UPS is a robust and efficient solution for critical power backup needs. With a power factor of 1.0, it provides an impressive output of 6000VA/6000W, ensuring maximum efficiency and reliability. Designed with online double-conversion topology, it guarantees continuous and clean power supply, making it ideal for sensitive electronic equipment. Its parallel configuration support allows up to three units to be connected, enhancing scalability and redundancy for mission-critical applications.

Flexible Input and Output Options for Versatile Applications:

This UPS supports a nominal input voltage range of 208/220/230/240 VAC, with an input voltage tolerance of 100-276 VAC, adapting easily to fluctuating power conditions. It boasts a low input current THDi of less than 3%, ensuring minimal distortion even under full load. The rated output voltage mirrors the input flexibility and maintains tight voltage regulation within ±1%, making it suitable for varied applications, including IT systems, industrial equipment, and medical devices.

Superior Overload and Efficiency Capabilities:

The ABB 11T G2 UPS offers exceptional overload capacity, handling 102-125% loads for up to 10 minutes and 126-150% loads for 30 seconds, ensuring continuous operation during temporary surges. Its overall efficiency reaches up to 95%, while eco-mode delivers an impressive 98% efficiency, reducing energy costs and environmental impact. This combination of performance and efficiency makes it a cost-effective and sustainable power backup solution.

Advanced Battery System with Rapid Recharge:

Equipped with 16 VRLA (valve-regulated lead-acid) batteries, the UPS provides reliable backup power. The inbuilt batteries feature adjustable charging currents (up to 4A for standard configurations), with a fast recharge time of just 4 hours to reach 90% capacity. This ensures quick recovery and readiness for the next power outage.

User-Friendly Design and Communication Features:

The UPS features an intuitive LCD display, providing real-time insights into operating parameters and battery status. Communication options include USB, RS-232, and optional SNMP/Modbus cards, enabling seamless integration with network management systems. Additional features like environmental monitoring and auto-shutdown functions add convenience and safety.

Durable and Environmentally Resilient Construction:

With an IP20 protection rating and an operating temperature range of 0°-40°C, the UPS is built to perform in challenging environments. It supports operation up to 50°C with a 50% load and handles altitudes up to 1000 meters without derating. Compliance with stringent standards, including IEC/EN 62040 and ISO certifications, underscores its reliability and quality.

Compact Design and Lightweight Build:

Despite its high capacity, the UPS has a compact form factor, measuring 225mm in width, 589mm in height, and 452mm in depth, with a manageable weight of 61.2kg. This allows easy installation in various setups without occupying excessive space.
