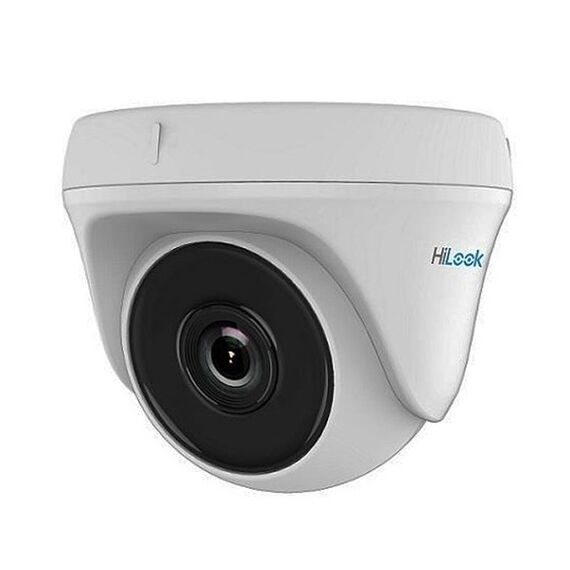

HiLook THC-T120-P

2.8MM 1080mp 2 MP Indoor Fixed Turret Camera

1080p turret camera

Smart IR: up to 20 m IR distance

4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS).

Camera

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Min. Illumination

0.01 Lux@(F1.2, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s

Day & Night

IR Cut Filter

Angle Adjustment

Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

Signal System

PAL/NTSC

Lens

Lens Type

2.8 mm, 3.6 mm and 6 mm fixed focal lens

Focal Length & FOV

2.8 mm, horizontal FOV: 103

3.6 mm, horizontal FOV: 80.7

6 mm, horizontal FOV: 50.1

Lens Mount

M12

Illuminator

Supplement Light Type

IR

Supplement Light Range

Up to 20 m


Image Settings

Brightness;Sharpness;Mirror;Smart IR;AGC

Frame Rate

PAL: 1080p@25fps

NTSC: 1080p@30fps

Day/Night Mode

Auto/Color/BW (Black and White)

Image Enhancement

BLC;DWDR

Noise Reduction

2D DNR

Interface

Video Output

Switchable TVI/AHD/CVI/CVBS;1 HD analog output

General

Power

12 VDC ±15%, max. 4 W

Material

Plastic

Dimension

Ø 85.4 mm × 76.12 mm ( Ø 3.38" × 2.67")

Weight

Approx. 130 g (0.29 lb.)

Operating Condition

-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)

Language

English
