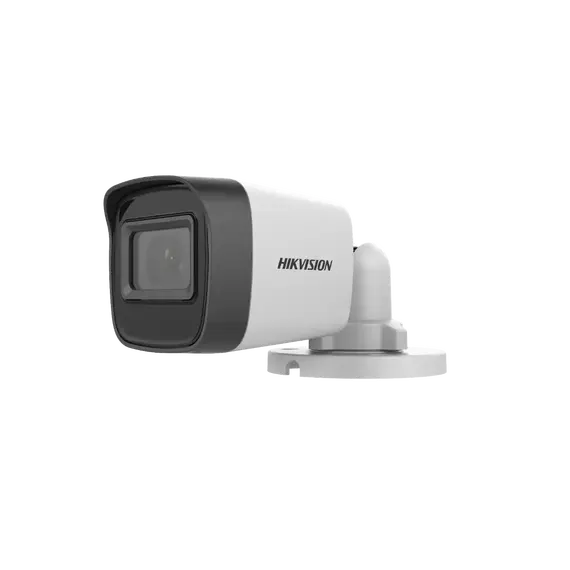

Hikvision DS-2CE16D0T-ITPF

3.6MM 1080P 2 MP Fixed Mini Bullet Camera

2 MP, 1920 × 1080 resolution

2.8 mm, 3.6 mm, 6 mm fixed lens

4 in 1 video output (switchable TVI/AHD/CVI/CVBS)

Smart IR, up to 25 m IR distance

IP67

Camera

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Min. Illumination

0.01 Lux@(F1.2, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/25 s to 1/50, 000 s

NTSC: 1/30 s to 1/50, 000 s

Day & Night

ICR

Angle Adjustment

Pan: 0° to 360°; Tilt: 0° to 90°; Rotate: 0° to 360°

Signal System

PAL/NTSC

Lens

Lens Type

2.8 mm, 3.6 mm, 6 mm fixed lens

Focal Length & FOV

2.8 mm, horizontal FOV: 101°, vertical FOV: 60°, diagonal FOV: 122°

3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°

6 mm, horizontal FOV: 51.9°°, vertical FOV: 30°, diagonal FOV: 58.8°

Lens Mount

M12


Image Parameters Switch

STD/HIGH-SAT

Image Settings

Brightness, Sharpness, Smart IR

Frame Rate

TVI: 1080P@30fps, 1080P@25fps

CVI: 1080P@30fps, 1080P@25fps

AHD: 1080P@30fps, 1080P@25fps

CVBS: PAL/NTSC

Day/Night Mode

Auto/Color/BW (Black and White)

Wide Dynamic Range (WDR)

Digital WDR

Image Enhancement

BLC, HLC

White Balance

ATW/MANUAL

AGC

Support

Interface

Video Output

Switchable TVI/AHD/CVI/CVBS

General

Material

Plastic

Dimension

57.9 mm × 60.9 mm × 138.8 mm (2.28" × 2.39" × 5.47")

Weight

Approx. 141 g (0.31 lb.)

Operating Condition

-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)

Communication

HIKVISION-C

Language

English

Power Supply

12 VDC ± 25%

Consumption

Max. 2.2 W

IR Range

Up to 25 m

Approval

Protection

IP67
