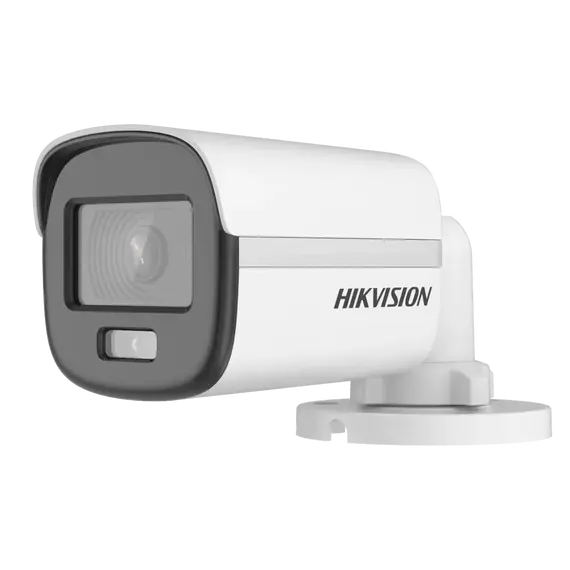

Hikvision DS-2CE10DF0T-PF

2 MP ColorVu Fixed Mini Bullet Camera

High quality imaging with 2 MP, 1920 × 1080 resolution

24/7 color imaging with F1.0 aperture

3D DNR technology delivers clean and sharp images

2.8 mm, 3.6 mm, 6 mm fixed focal lens

Up to 20 m white light distance for bright night imaging

One port for four switchable signals (TVI/AHD/CVI/CVBS)

Water and dust resistant (IP67)

Camera

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Min. Illumination

0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light

Shutter Time

PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s

Angle Adjustment

Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°

Signal System

PAL/NTSC

Lens

Lens Type

2.8 mm, 3.6 mm, 6 mm fixed focal lens

Focal Length & FOV

2.8 mm, horizontal FOV: 98°, vertical FOV: 51°, diagonal FOV: 115°

3.6 mm, horizontal FOV: 76°, vertical FOV: 41°, diagonal FOV: 90°

6 mm, horizontal FOV: 50°, vertical FOV: 27°, diagonal FOV: 58°

Lens Mount

M12

Illuminator

Supplement Light Type

White Light

Supplement Light Range

White Light Distance: Up to 20 m

Smart Supplement Light

Yes


Image Parameters Switch

STD/HIGH-SAT/HIGHLIGHT

Image Settings

Brightness;Mirror;Sharpness;Anti-Banding;AGC

Frame Rate

TVI: 1080p@25fps/30fps

CVI: 1080p@25fps/30fps

AHD: 1080p@25fps/30fps

CVBS: PAL/NTSC

Day/Night Mode

Color

Wide Dynamic Range (WDR)

Digital WDR

Image Enhancement

BLC;HLC;Global

Noise Reduction

3D DNR/2D DNR

White Balance

Auto/Manual

Interface

Video Output

Switchable TVI/AHD/CVI/CVBS

Alarm

Solid Light Alarm (White Light)

General

Power

12 VDC ± 25%

*You are recommended to use one power adapter to supply the power for one camera.

Max. 2.4 W

Material

Plastic

Dimension

161.1 mm × 70 mm × 70 mm (6.34" × 2.76" × 2.76")

Weight

Approx. 229 g (0.50 lb)

Operating Condition

-40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing)

Communication

HIKVISION-C

Language

English

Approval

Protection

IP67
