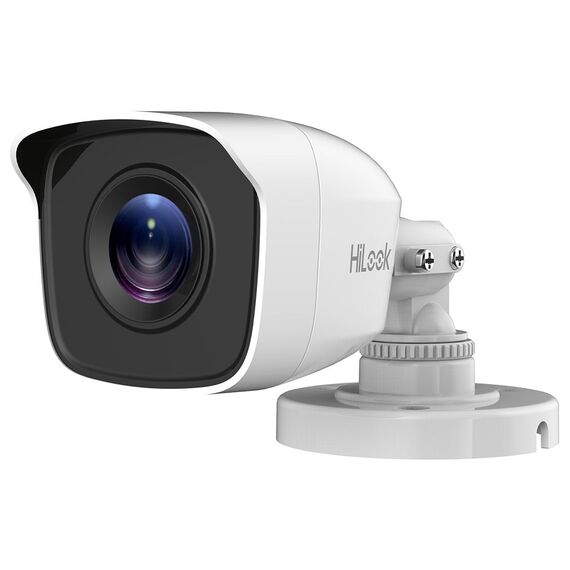

HiLook THC-B123-P

3.6MM 1080mp 2 MP Outdoor Ultra Low Light Fixed Mini Bullet Camera

1080p bullet camera

Good night-time performance with ultra-low light 0.005 lux

Clear imaging against strong back light due to 120 dB true WDR technology

3D DNR technology delivers clean and sharp images

EXIR 2.0: advanced infrared technology with 30 m IR distance.

Camera

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Min. Illumination

0.005 Lux@(F1.2, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s

Day & Night

IR Cut Filter

Angle Adjustment

Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°

Signal System

PAL/NTSC

Lens

Lens Type

2.8 mm, 3.6 mm, 6 mm

Focal Length & FOV

106° (2.8 mm), 82° (3.6 mm), 51° (6 mm)

Lens Mount

M12

Illuminator

Supplement Light Type

IR

Supplement Light Range

Up to 30 m

Smart Supplement Light

Yes


Image Parameters Switch

STD/HIGH-SAT

Image Settings

Brightness;Sharpness;Mirror;AGC

Frame Rate

PAL: 1080p@25fps

NTSC: 1080p@30fps

Day/Night Mode

Auto/Color/BW (Black and White)

Wide Dynamic Range (WDR)

≥120 dB

Image Enhancement

WDR;BLC;HLC

Noise Reduction

3D DNR

Interface

Video Output

1 HD analog output;Switchable TVI/AHD/CVI/CVBS

General

Power

12 VDC ±25%, max. 4.6 W

*You are recommended to use one power adapter to supply the power for one camera.

Material

Plastic

Dimension

165 mm × 62 mm × 58 mm (6.50" × 2.44" × 2.28")

Weight

153 g (0.34 lb.)

Operating Condition

-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)

Language

English

Approval

Protection

IP66
