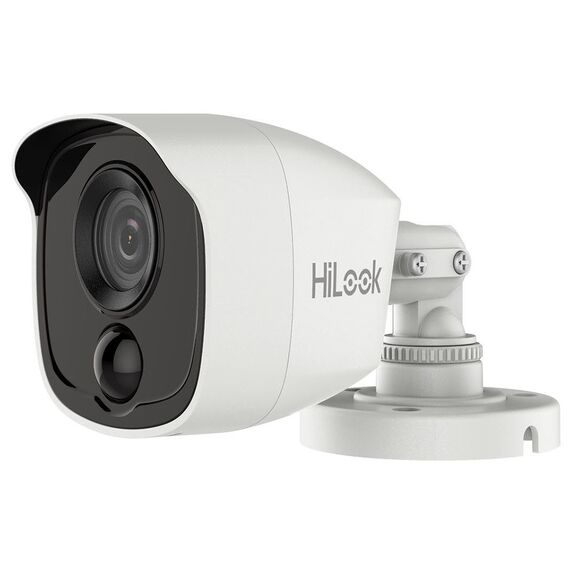

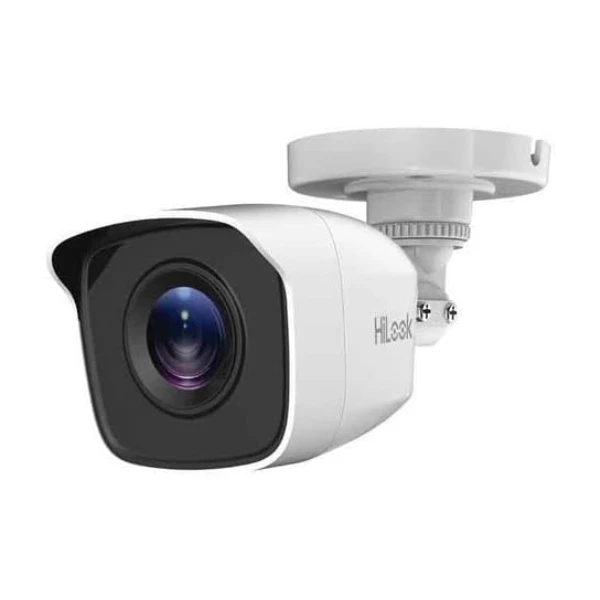

HiLook THC-B120-P

3.6MM 1080mp 2 MP Fixed Mini Bullet Camera

1080p bullet camera

Smart IR: up to 20 m IR distance

Water and dust resistant (IP66)

4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS).

Camera

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Min. Illumination

0.01 Lux@(F1.2, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s

Day & Night

IR Cut Filter

Angle Adjustment

Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°

Signal System

PAL/NTSC

Lens

Lens Type

2.8 mm, 3.6 mm and 6 mm

Focal Length & FOV

2.8 mm, horizontal FOV: 103°

3.6 mm, horizontal FOV: 80.7°

6 mm, horizontal FOV: 50.1°

Lens Mount

M12

Illuminator

Supplement Light Range

Up to 30 m


Image Settings

Brightness;Sharpness;Mirror;AGC

Frame Rate

PAL: 1080p@25fps

NTSC: 1080p@30fps

Day/Night Mode

Auto/Color/BW (Black and White)

Image Enhancement

BLC;DWDR

Supplement Detection(PIR)

PIR Range

Up to 20 m

Interface

Video Output

1 HD analog output;Switchable TVI/AHD/CVI/CVBS

General

Power

12 VDC ± 25%, max. 4 W

Material

Plastic

Dimension

165 mm × 62 mm × 58 mm (6.50" × 2.44" × 2.28")

Weight

150 g (0.33 lb.)

Operating Condition

-40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)

Language

English

Approval

Protection

IP66
