Xprinter

XP-N260H, Receipt, Thermal Printer,

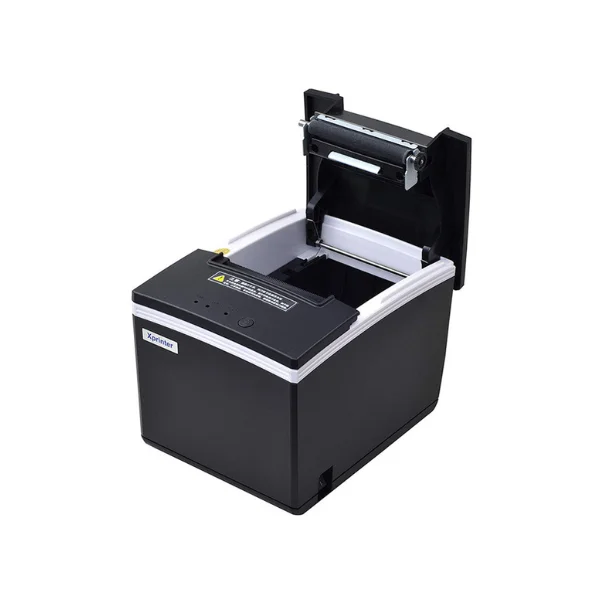

Printer XP-N260H:

Stylish high-end thermal printer 260 mm / sec low noise, high speed printing Standard Chinese simplified GB18030 large character library Simplified / Traditional can be freely converted by instructions 83MM large capacity paper warehouse Low power consumption, low operating costs. Support cash box drive With automatic paper cutting features. Built-in wall hanging function

Supports many uses:

 Support kitchen printing, network printing  Support IAP online upgrade, save time and worry. Support NVLOGO download image printing picture format is BMP. Support free lost function, prevent lost orders. Adopt new Tool return calibration technology, prevent card cutter. Support single reminder, error alarm function. Support multiple kinds of one-dimensional bar code printing. Support QR code (QR code type: QR CODE, PDF417) Support energy control, print head overheating protection, the life of the print head is longer

Receipt  Printer:

The network port interface is 100M network speed, and the data transmission speed is fast Support Linux system, advanced OPOS driver Compatible with ESC/POS command, has strong compatibility. Easy loading paper structure, convenient loading Paper with out of paper detection, support for black mark detection.

Specifications:

Print

Printing method Thermal printing
Print width 72mm paper width
Point density 576 points / line or 512 points / line
Printing speed 260 mm / sec
Interface type 9P serial port + USB + network port
Printer paper 79.5 ± 0.5 mm × φ 80 mm
Line spacing 3.75 mm (can adjust the line spacing with commands)
Number of
columns
80mm paper: 80mm paper: Font A - 42 columns or 48 columns
/ Font B - 56 columns or 64 columns / simple, traditional - 21
columns or 24 columns
Character size
ANK character, Font A: 1.5 × 3.0mm (12 × 24 points)
Font B: 1.1 × 2.1mm (9 × 17 points)
Jane / Traditional: 3.0 × 3.0mm (24 × 24 points)
Bar Code
Character
Extended
character table
PC347 (Standard Europe), Katakana,
PC850 (Multilingual), PC860 (Portuguese),
PC863 (Canadian-French), PC865 (Nordic),
West Europe, Greek, Hebrew, East Europe, Iran, WPC1252,
PC866 (Cyrillic#2) , PC852 (Latin2), PC858, IranII, Latvian,
Arabic, PT151 (1251)
One-dimensional
code
UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/
CODE39/ITF/CODABAR/CODE93/CODE128
QR code QRCode, PDF417
Buffer
Input buffer 64k bytes
NV Flash 256k bytes
Power supply
Power supply Output: DC 24V/2.5A
Cash box output DC 24V/1A
Physical
Characteristics
Weight 1.12 kg
Dimensions 192 × 140 × 140 mm (depth × width × height)
Environmental
Requirements
Working
environment
Temperature: 0～45°C, Humidity: 10～80%
Storage
environment
Temperature: -10～60°C, Humidity: 10～90% (no
condensation
