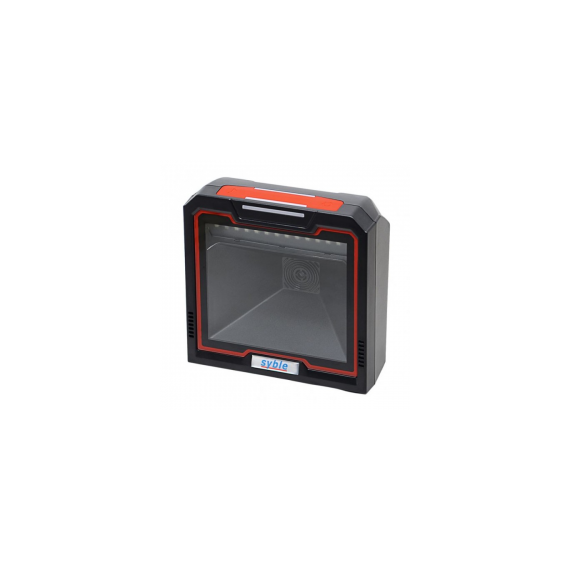

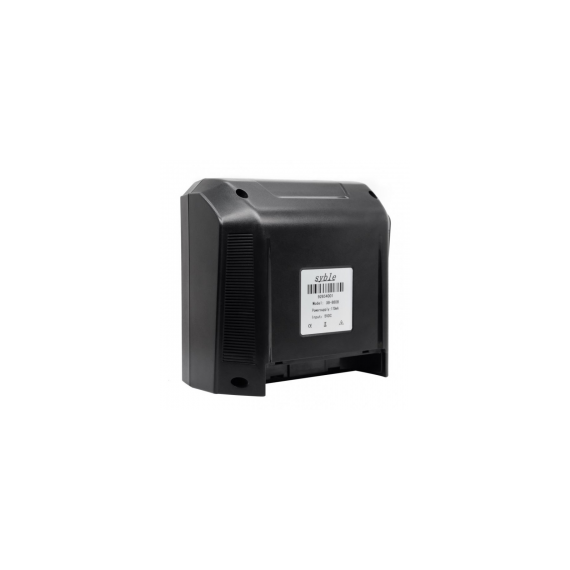

Syble 8808 Imager Scanner
Syble
8808, Imager, Scanner,
Advanced digital Technology:
The XB-8808 2D Barcode Scanner uses the latest advanced digital imaging technology to provide 1d and 2d barcodes easily recognizable and fast scan quality without compromising performance and performance. It can also read damaged, weak, dirty and damaged barcodes. Like mobile device barcodes, fast scanning and reliability make this universal 2D barcode scanner suitable for supermarkets, pharmacies, gas stations and other similar retail stores.
Automatic Sleep:
Automatic sleep and wake modes to save energy and extend life
Easy To Use:
Easy switching with multiple interfaces and cable replacement
High Performance:
High performance and reliable decoding
Fast Scan:
High-speed scanning up to 150 ips for 1D barcodes and up to 60 ips for 2D barcodes Excellent exercise durability Read all 2D and 2D barcodes from printed paper and mobile screens
Tech Parameters
| Model Number | XB-8808 |
| Performance Parameters | |
| Light Sources | SXGA-W(Width1280*high1024) Ratio（5：4） |
| Supported Symbologies | 1D:EAN-8、EAN-13、EAN-13 2 add-on、EAN-13 5 add-on、ISSN、ISBN、UPC-A、UPC-E、Code11、Code 32、Code 39、Code 93、Code 128、Codabar、Industrial 2 of 5、Interleaved 2 of 5、Matrix 2 of 5、ISBT-128、GS1-128、GS1 DataBar（RSS14）、GS1 DataBar Limited、GS1 DataBar Expanded. 2D:PDF417、MicroPDF417、QR-code、MicroQR, Data Matrix、QR、Aztec. |
| Scan Range | 5mil(Code39) 1cm~15cm; UPC-13mil 1cm~33cm; 20mil(code39) 1cm~40cm; 20mil(QR Code) 1cm~28cm |
| System compatibility | Linux、Android、Windows XP、7、8、10、MAC |
| Minimum recognition accuracy | Code 39 4mil |
| Barcode Type | 1d or 2d barcodes for Paper or Film；1d and 2d for screen ,like Phone tablets |
| Motion tolerance | 3.8meters/second |
| Scan Mode | Automatic continuous reading mode |
| Support Keyboard | Support Multi-Language |
| Barcode output editing | Support for adding suffixes |
| Print contrast | 20% |
| Recognition angle range | Turn angle ±360°, elevation angle ±60°, declination angle ±70° |
| Mutual Move | Led: Red and blue bi-color indicator: red light reading code, blue light power indicator. Beeper: Startup prompts, reading tips. Keys (touch keys): Key Switch and 2d barcodes. |
| Interfaces | USB(Drive - Free)、RS232 |
| Physical Parameters | |
| Dimensions | 119mm*135mm*166mm |
| Weight | 390g |
| Material | ABS+PC |
| Cable Length | 180CM(±3CM) |
| Environmental Parameters | |
| Operating Temperature | -20℃~55℃ |
| Storage Temperature | -20℃~60℃ |
| Relative Humidity | 5%~95% RH(non-condensing/non-freezing) |
| Shock Resistance: | Withstands three times1 . 5 meters drops to concrete |
| Waterproof and Dustproof | IP54 standard |
| Ambient Ligh | 0-70000LUX |
| Electrical Parameters | |
| Working Voltage | DC5V |
| Power | USB Interface: Standby Power 0.2mA/1W; Operating Power 0.33mA/1.65W Maximun Operating Power 0.481mA/2.405W. RS232 Interface: Standby Power 0.2mA/1W; Operating Power 0.33mA/1.65W; Maximun Operating Power 0.484mA/2.42W |
