Xprinter XP-DT325B Barcode Printer
Xprinter
XP-DT325B
Barcode Printer,
Compact Design:
Compact and compact design

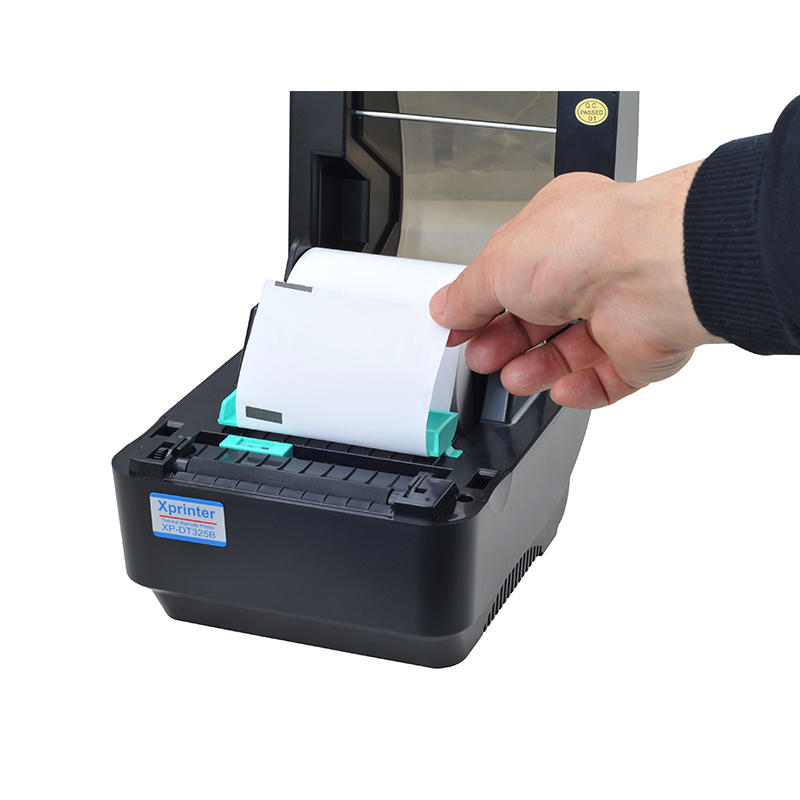

Easy paper loading with adjustable paper guides
Maximum printing speed. 152 mm / s
Maximum label diameter 100 mm, external quantity and panel options
Thermal resistance, black mark sensor, photoelectric sensor
Interface options USB
High Performance:
XP-DT325B Direct Thermal Desktop Thermal Printers improve performance and reliability at a competitive price, offering a wide range of advanced features for a variety of low to medium volume printing applications with rich interfaces and looks. To do.
Support Application:
The XP-DT325B Desktop Barcode Printer supports more printing applications than any other printer in the class. With three models, the 3-inch wide XP-DT325B can handle everything from large labels, high-quality product labels and graphics solutions, to high-end labels used in electronic lab applications.
Specification:
| Printing Features | |
| Resolution | 203 DPI |
| Printing method | Direct Thermal |
| Max.print speed | 152 mm/s Max. |
| Max.print width | 80mm (3.15") |
| Max.print length | 1778 mm (70") |
| Media | |
| Media type | Continuous, gap, black mark, fan-fold and punched hole |
| Media width | 20 ~ 82 mm (0.78 " ~ 3.2 ") |
| Media thickness | 0.06 ~ 0.20 mm |
| Media core diameter | 25.4 ~ 76.2 mm (1 "~ 3 ") |
| Label length | 10 ~ 1778 mm (0.39 " ~ 70 ") |
| Label roll capacity | 80mm (3.15") |
| Performance Features | |
| Processor | 32-bit CPU |
| Memory | 8MB Flash Memory/8MB SDRAM |
| Interface | Standard: USB |
| Sensors | Gap sensor Cover opening sensor Black mark sensor |
| Fonts/Graphics/Symbologies | |
| Internal fonts | 8 alpha-numeric bitmap fonts, Windows fonts are downloadable from software. |
| 1D barcode | Code 39, Code 93, Code 128UCC, Code 128 ，subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST |
| 2D barcode | PDF-417, Maxicode, DataMatrix, QR code |
| Rotation | 0°、90°、180°、270° |
| Emulaion | TSPL、EPL、ZPL、DPL、ESC、POS |
| Physical Features | |
| Dimension | 187(D) x 162(W) x146(H)mm |
| Weight | 1.1kg |
| Reliability | |
| Print head life | 30 km |
| Software | |
| Driver | Windows/Linux/Mac |
| SDK | Windows/Android/iOS |
| Power adaptor | |
| Input | AC 100-240V, 50-60Hz |
| Output | DC 24V, 2.5A, 60W |
| Options | |
| Factory Options | ①WIFI ②Bluetooth |
| Dealer Options | ①External paper roll holder and 1 "paper roll ②Extension board for external paper roll holder ③Shipment waybill box |
| Environmental Conditions | |
| Operation | 5 ~ 40°C（41~104°F），Humidity: 25 ~ 85% non-condensing |
| Storage environment | -40 ~ 60°C（-40~140°F），Humidity:10 ~ 90% non-condensing |
