XPrinter XP-330B Label Printer
Please sign in so that we can notify you about a reply
Brand:
Xprinter
Point Of Sale Spec
Printer Method
Thermal Line
Print Speed
127 mm/s
Printer Resolution
203 Dpi
Barcode Size
5 CM
IO Ports
USB
Power Supply Adapter
24VDC, 2.5A
Dimension
212.4 x 143 x 145.5 mm
Weight
1.42 Kg
XPrinter XP-330B
XPrinter, XP-330B, Label, Printer,

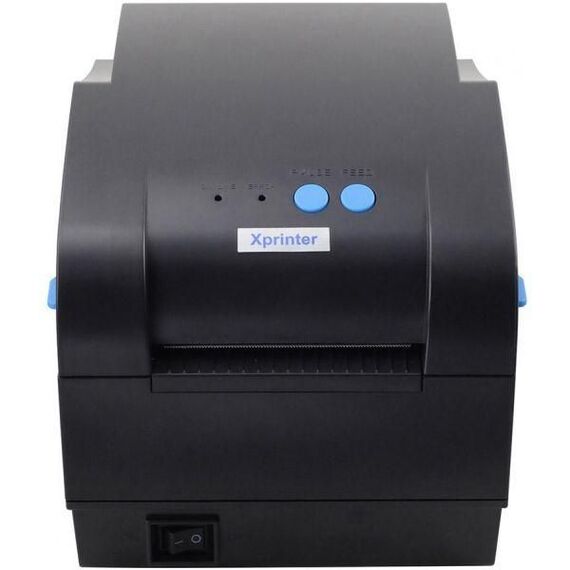

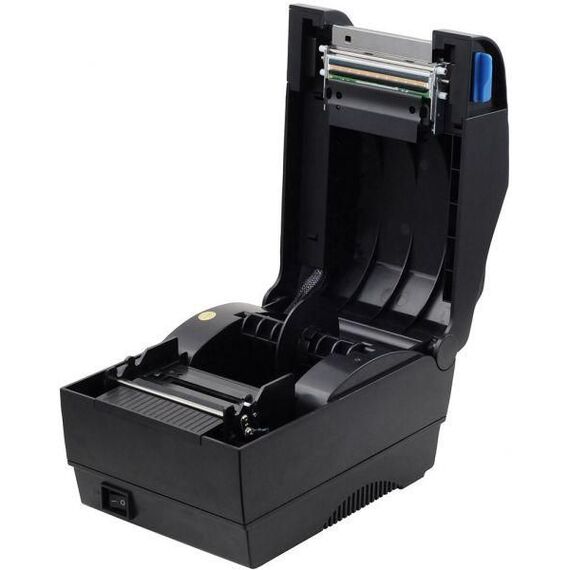

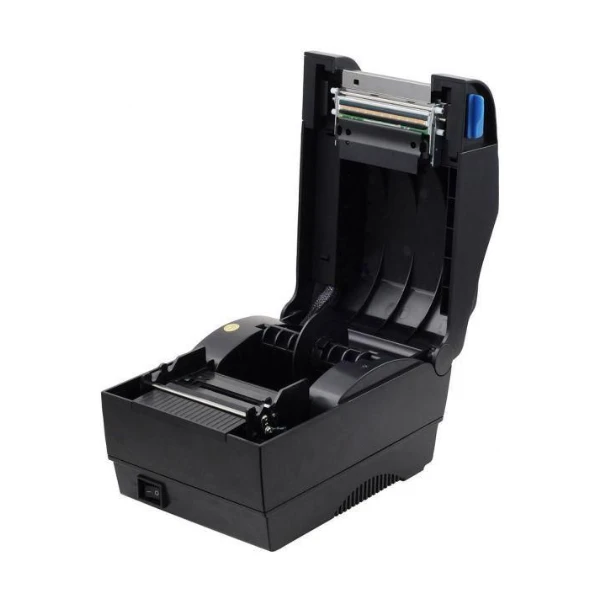

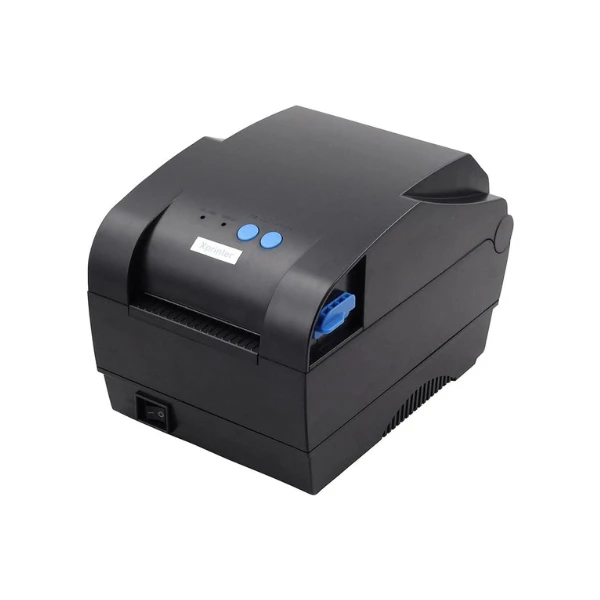

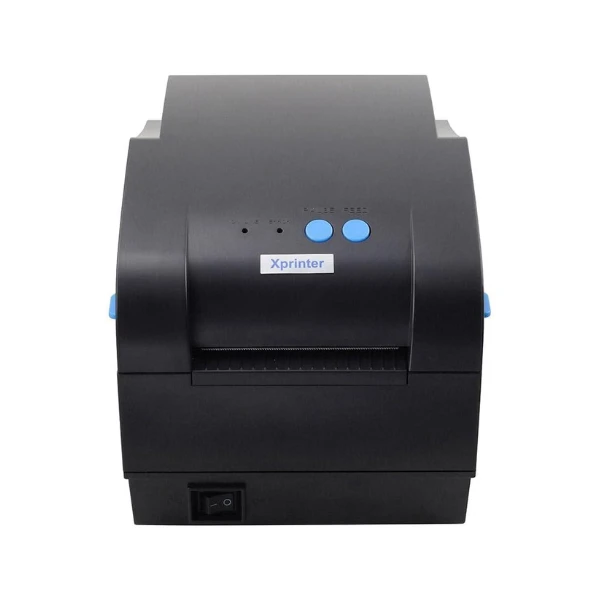

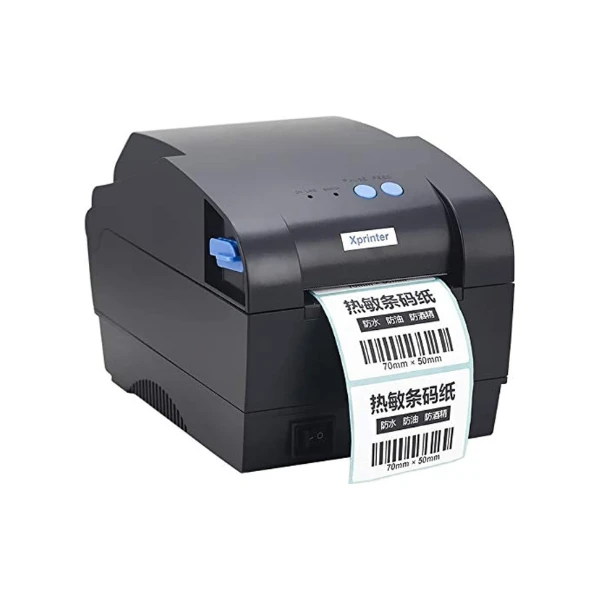

XP-330B is the 3 inch direct thermal label printer, the printing speed can up to 152mm/sec. Designed with no losable parts and user-friendly clamshell that allows users to easy open the cover and drop labels into the media bay. Gap auto detection and the black mark sensor is completely adjustable from side to side.
spesification:
| Printing | ||
| Printing method | Direct thermal | |
| Resolution | 203DPI | |
| Print width | 80mm | |
| Printing speed | MAX: 127mm/s?MIN: 50.8mm/s | |
| Memory | DRAM: 4M FLASH: 4M | |
| Print head temperature sensor | Thermal sensitive resistance | |
| Paper exists detection | Photosensor | |
| Interface | USB | |
| Character size | ANK?Font A?1.5×3.0mm?12×24 dots? Font B?1.1×2.1mm?9×17 dots? Chinese,traditional Chinese:3.0×3.0mm?24×24 dots? | |
| Barcode Character | ||
| Barcode | CODE128?EAN128?ITF?CODE39?CODE93?EAN13? EAN13+2?EAN13+5?EAN8?EAN8+2?EAN8+5? CODABAR?POSTNET?UPC-A?UPCA+2?UPCA+5? UPC-E?UPCE+2?UPC-E+5?CPOST?MSI?MSIC? PLESSEY?ITF14?EAN14 | |
| Internal font | FONT 0 to FONT 8 | |
| Enlargement & rotation | ?0°?90°?270°? 360°? 1 to 10 times enlargement in both direction; 0°?90°?270°? 360° rotation | |
| Image | Monochromatic PCX, BMP image files can be load to FLASH, DRAM | |
| Media type | ||
| Paper type | Paper roll, sticker, adhesive sticker, etc | |
| Paper width | 20mm?82mm | |
| Roll external diameter | MAX 100mm | |
| Roll inner diameter | MIN 25mm | |
| Paper off type | Peel off | |
| Power | ||
| Power supply input | 24VDC, 2.5A | |
| Physical characteristics | ||
| Weight | 1.42KG | |
| Dimensions | 212.4(D) x 143(W) x 145.5(H)mm | |
| Environmental Requirements | ||
| Work environment | 5?45?, 20?80%RH(no condensation) | |
