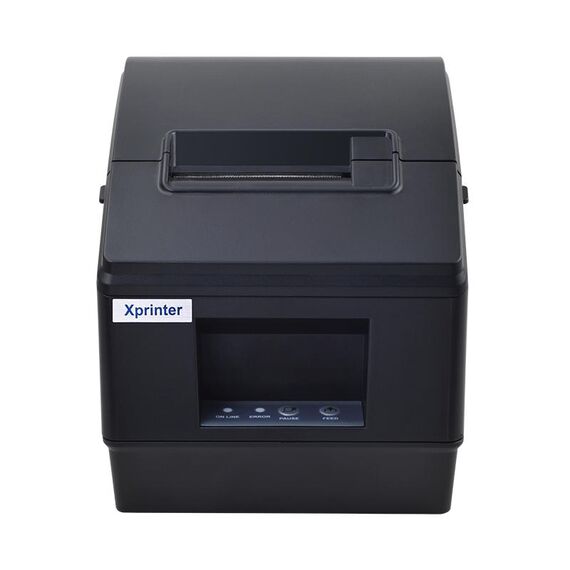

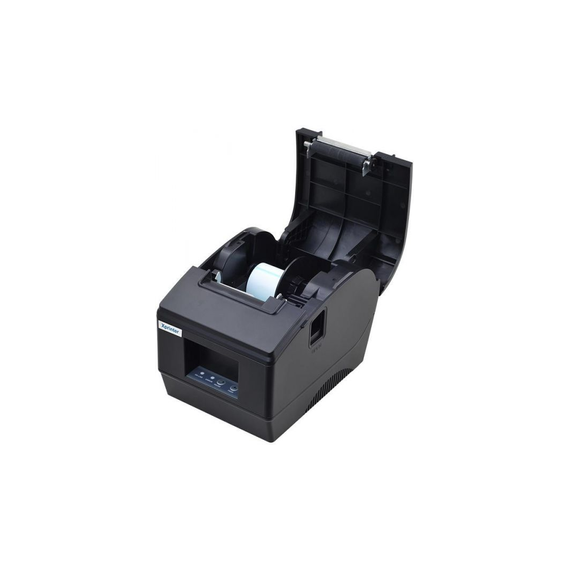

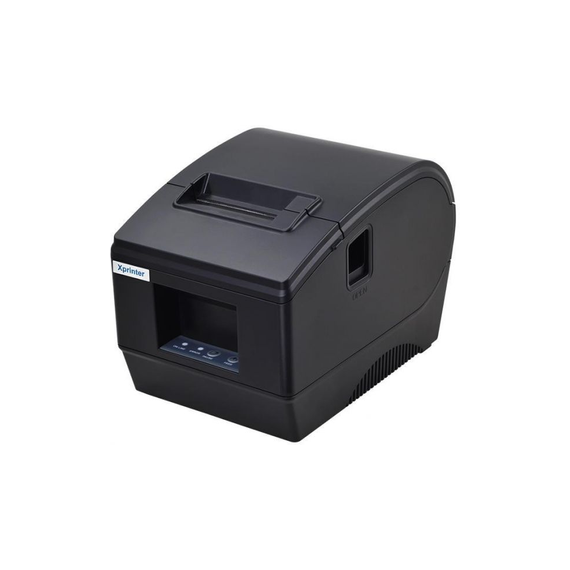

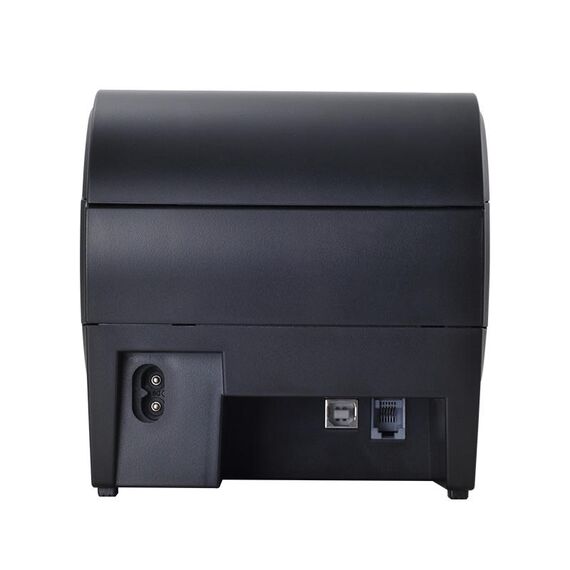

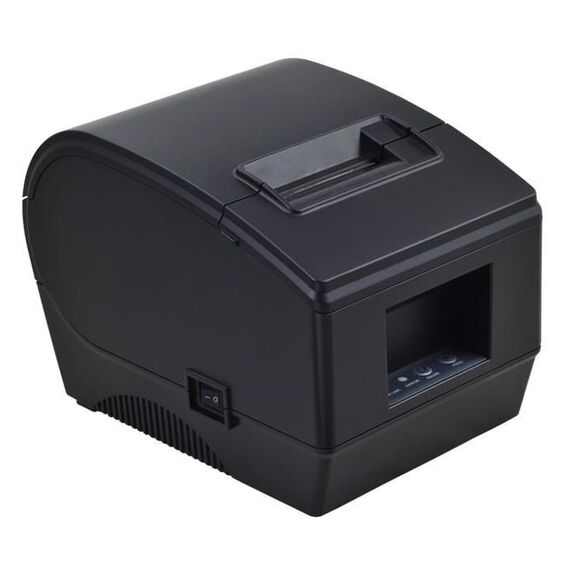

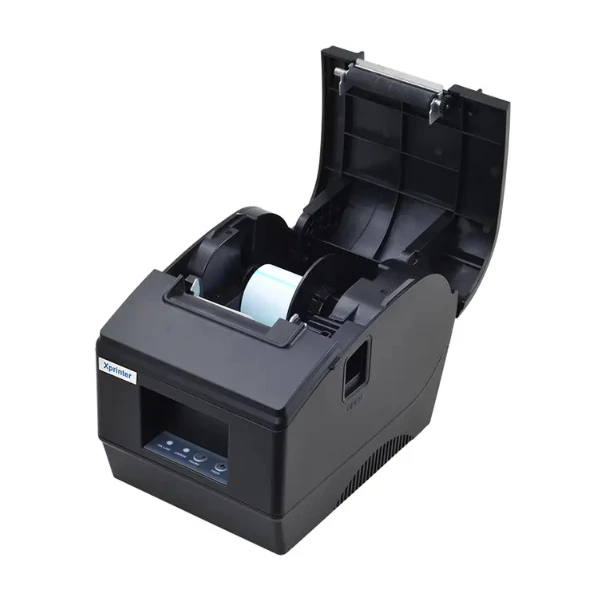

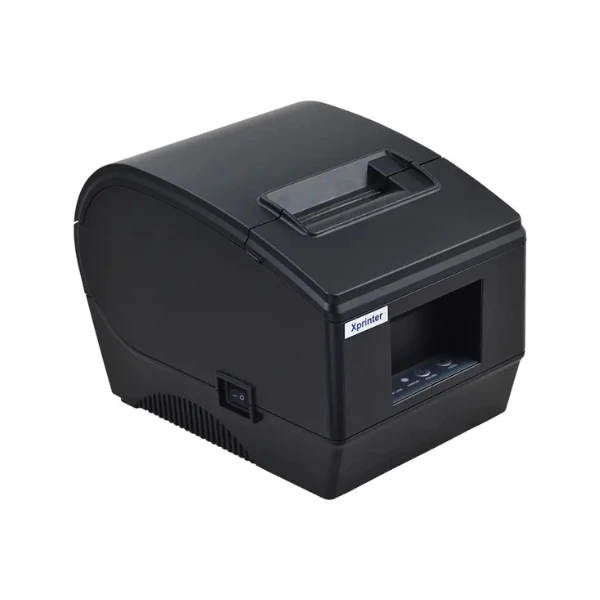

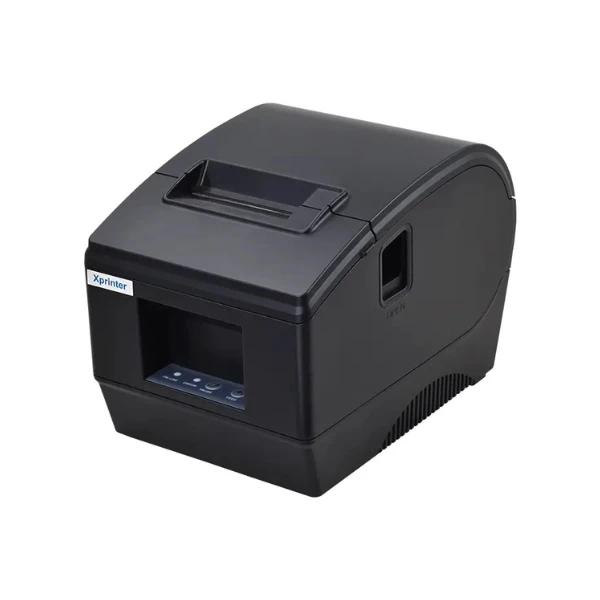

Xprinter XP-236B Barcode Printer
Xprinter XP-236B
Receipt Printer,
Adjustable print speed: Min 50.8mm/s, Max 101mm/s
Maximum paper roll diameter:
80mm
Adjustable paper width:
Min 20mm, Max 60mm
Support QR CODE Printing
Applications:
Super Market
Medical Care
Storage
post
store
Specification:
| Model | XP-236B | ||
| Mode | Label print mode | Receipt print mode | |
| Printing Features | |||
| Resolution | 203 DPI | 203 DPI | |
| Printing method | Direct Thermal | ||
| Max.print speed | 50.8~101 mm/s | 90 mm/s Max. | |
| Max.print width | 56 mm | 48 mm | |
| Media | |||
| Media type | Thermal paper/Thermal stickers paper | Thermal paper | |
| Media width | 20~60 mm | 58 mm | |
| Media roll diameter | Max.80 mm | ||
| Supply method | Easy Paper Loading | ||
| Performance Features | |||
| Memory | DRAM 64Kb Flash 4 MB | ||
| Interfaces | USB/USB+Bluetooth/USB+WiFi | ||
| Sensors | Print head temperature sensor/ Paper end/ Cover open / Gap | Print head temperature sensor/ Paper end/ Cover open | |
| Drawer port | 1 ports (Pin 2 for cashdrawer) | ||
| Fonts/Graphics/Symbologies | |||
| Character sizes | Font 0 to Font 8 | Font A: 12x24, Font B: 9x17, CHN: 24*24 | |
| 1D barcode | CODE128、EAN128、ITF、CODE39、CODE39C、CODE39S、CODE93、EAN13、EAN13+2、EAN13+5、EAN8、EAN8+2、EAN8+5、CODABAR、POSTNET、UPC-A、UPCA+2、UPCA+5、UPCE、UPCE+2、UPCE+5、MSI、MSIC、PLESSEY、ITF14、EAN14 | Coda Bar, Code 39, Code 93, Code 128, EAN-8, EAN-13, ITF, UPC-A, UPC-E | |
| 2D bar code | PDF-417/ QR code | QR code | |
| Emulaion | TSPL | ESC/POS | |
| Physical Features | |||
| Dimension | 189*130*135mm (D×W×H) | ||
| Weight | 1.08 kg | ||
| Reliability | |||
| Print head life | 50 km | ||
| Software | |||
| Driver | Windows | Windows/Linux/Mac/Android | |
| SDK | iOS/ Android/ Windows | ||
| Power supply | |||
| Input | DC 9V/3A | ||
| Environmental Conditions | |||
| Operation | 5～45℃， Humidity:RH 20～80>#/p### | ||
| Storage environment | -40～55 ℃ Humidity:RH ≤93%(40℃) | ||
