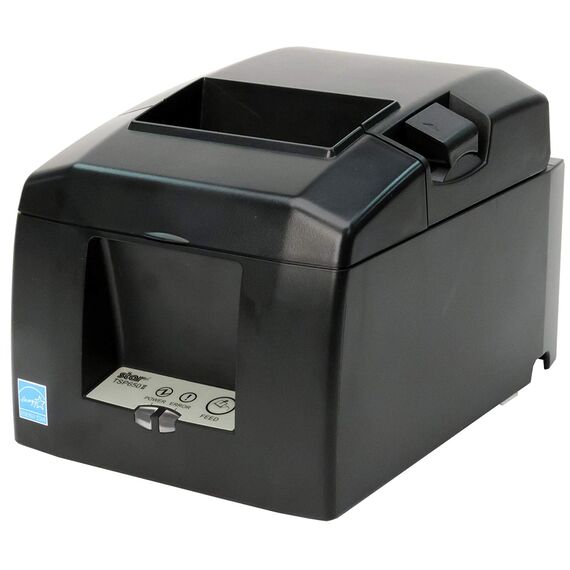

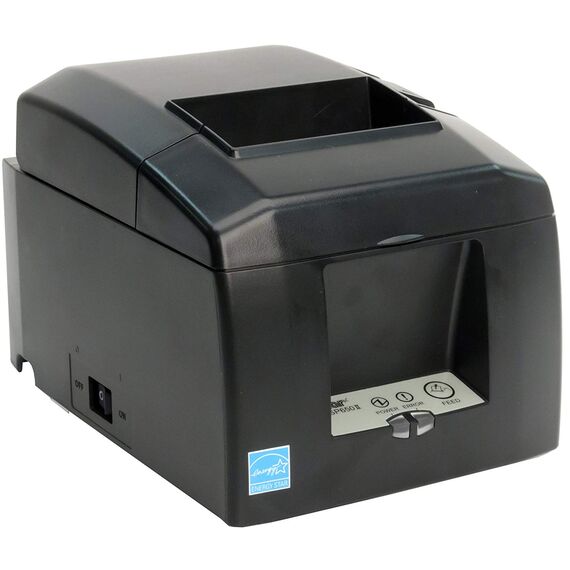

Star TSP654II
Star, TSP654II, Receipt Printer,
Smart and full of features
Star Micronics' TSP654II High Speed Thermal Receipt Printer is always a pioneer and innovator with a wide range of interface options. Updated to further improve one of Star's most popular printers, the TSP654II boasts fast printing speeds of 60 RPM (receipt per minute), improved automatic guillotine for cutting and easy Equipped with paper loading "drop-in and printing".
Some interface options:
Available interface options include serial, parallel, USB, Ethernet, and Apple AirPrint communication protocols. In addition, these interfaces are interchangeable. This means you don't have to buy a brand new printer if you need new connectivity options.
Perspective connection:
The TSP654II is ready today and tomorrow. Years of success with AirPrint, which allows users to print seamlessly while using the Apple iOS POS system, and Cloud PRNT, which allows users to receive and print orders directly from online ordering services such as DoorDash, Grubhub, and UberEats, are essential...
Specifications:
| Printer Method | Direct Line Thermal |
| Print Speed | 60 Receipts per Minute (300mm/s) |
| Printer Case Color | Gray |
| Print Resolution | 203 dpi |
| No. of Columns | 48 / 64 |
| Font Size | 12 x 24 |
| Character Set | ANK 95, 32 Int 128 Graphic |
| International Code Pages | Star Mode=40. ESC/POS™= 6 + 1 blank allowing an additional character page to be added |
| Bar Codes | 9 versions / PDF 417 Option |
| Line Spacing | 3 mm or 4 mm or programmable |
| Paper Specifications | |
| Width | 80mm standard, 58mm with paper guide |
| >td >0.053 ~ 0.085 mm | |
| Roll Diameter | Up to 83 mm |

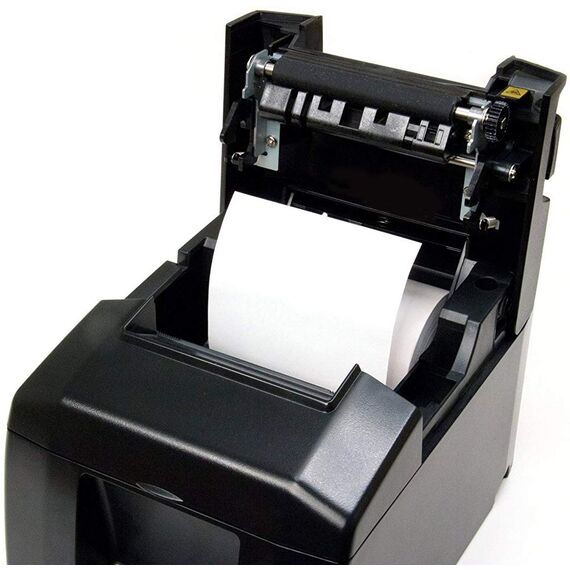

| Easy – Load | “Drop-In & Print” |
| Paper Out Sensor | Standard |
| Paper Low Sensor | Standard |
| Maximum Print Width | 80mm paper = 72mm, 58mm paper = 52mm |
| Top Margin | 11 mm or 13 mm minimum default |
| Auto Cutter | Guillotine (Partial Cut Only) |
| Cover Open Sensor | Yes |
| Logo Store Capacity | 2 Mbit Flash ROM with Graphic Management Software |
| Flash ROM | 16 Mbit |
| Multiple Copy Support | Available through Star Raster Driver |
| Power Supply | PS60A External Power Supply Included |
| Drivers Available | Windows 10, Windows 8.1, Windows® XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, POSReady 2009, OPOS™, JavaPOS™, USB Vendor Class, Linux™, Mac OS X, StarIO SDK with support for iOS and Android |
| Swappable Interfaces | Yes |
| Connectivity | Serial, Parallel, USB, Ethernet, WebPRNT Browser App, AirPrint |
| Emulation Modes | Star Mode, ESC/POS™ |
| Peripheral Drive Circuit | 2 circuits, (24V max. 1A), 1 Compulsion input |
| Power Consumption | Average 1.8 Amp. Printing, 0.15 Amp. Standby PS60A External Power Supply |
| Operating Conditions | Temperature: 5oC to 45oC Humidity: 10% – 90% RH (without condensation) |
| Storage Conditions | Temperature: -20oC to 60oC Humidity: 10% – 90% RH |
| Dimensions Weight: | 142 x 132 x 204mm (w x h x d) 1.60 kg
|
| Safety Standards | UL, C-UL, TüV, FCC, VCCI, EN55022, CE, Gost |
| Reliability MCBF Print Head Auto Cutter | 60 Million Lines 100km 2 Million Cuts |
| Included with Printer | Installation CD with Drivers and Configuration Utility, Wall Mount Bracket, Vertical Mount Accessory, 58mm Paper Guide, Power Switch Cover, Set Up Guide, Start Up Paper Roll, PS60A External Power Supply |
| Warranty | 2 Year Full Manufacturer Warranty |
| Options | Splash Proof Cover (SPC-T100) Display Stand for Vertical Use (VS-T650) Kitchen Buzzer (BU01-24-A) Swappable Interfaces 24V Mobile Power Supply Swap-A-Star Extended Warranty Program (US) Extend-A-Star Extended Warranty Program (US and Canada) |
