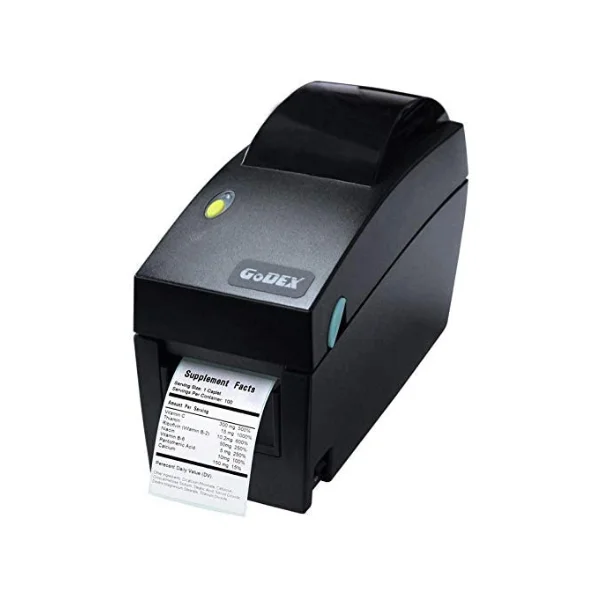

Godex DT2 Thermal Barcode Printer
Godex
DT2
Thermal Barcode Printer
The Godex DT2 Thermal Label Printer is a simple, compact, and economical 2.5inch direct thermal printer that is perfect for small or temporary labeling applications. The direct thermal printer, with fixed transmissive, central aligned, and adjustable reflective sensors, prints 102mm per seconds at a resolution of 203dpi. It can print code pages, barcodes, and graphics on thermal paper in a snap. Compact space saving design with wall mounted features, standard USB 2.0 serial port, and support for Ethernet connections makes this device ideal for use in a wide range of business settings, from hospitals to recreation.
Key Features:
203 dpi
1.2 Kg
Fast Printing:
The Godex DT2 Thermal Label Printer offers printing speed of up to 102mm per second. The fast print speed enhances your business efficiency by reducing customer waiting time, thereby improving your customer’s satisfaction.
Easy to Use:
The Godex DT2 Thermal Label Printer can print content on thermal paper from 4 to 1727mm. Its small, space saving design, wall mounting option, standard USB 2.0 serial port, and support for Ethernet connections makes this 2.5inch direct thermal printer ideal for use in hospitals to club.
Godex DT2 Specifications:
| Print Method | Direct Thermal |
| Resolution | 203 dpi (8 dots/mm) |
| Print Speed | 7 IPS (177 mm/s)** |
| Print Width | 2.12” (54 mm) |
| Print Length | Min. 0.16” (4 mm)**; Max. 68” (1727 mm) |
| Processor | 32 Bit RISC CPU |
| Memory | Flash: 4 MB Flash (2 MB for user storage) SDRAM: 16MB |
| Sensor Type | Fixed transmissive sensor and reflective sensor, central aligned |
| Media | Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming Width: Min. 0.6” (15 mm) – Max. 2.36” (60 mm) Thickness: Min. 0.003” (0.06 mm) – Max. 0.008” (0.20 mm) Label Roll Diameter: Max. 5” (127 mm) Core Diameter: 1” (25.4 mm), 1.5” (38.1mm) |
| Printer Language | EZPL, GEPL, GZPL auto switch |
| Software | Label Design Software: GoLabel (for EZPL only) Driver: MAC, Linux, Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1 DLL: Win CE, .NET, Andriod, Windows Mobile, Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1 |
| Resident Fonts | Bitmap Fronts : 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Bitmap fonts 8 times expandable in horizontal and vertical directions TTF Fonts (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable |
| Download Fonts | Bitmap Fonts: Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Asian Fonts: 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions TTF Fonts: 90°, 180°, 270° rotatable |
| Barcodes | 1-D Bar codes: Code 39, Code 93, EAN 8 /13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar, German Post Code, Planet 11 & 13 digit, Japanese Postnet, I 2 of 5 with human readable check digit, Standard 2 of 5, Industrial 2 of 5, Logmars, Code 11, Code 49 and Cadablock 2-D Bar codes: PDF417, Datamatrix code, MaxiCode, QR code, Micro PDF417, Micro QR code and Aztec code. |
| Code Pages | CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737 WINDOWS 1250, 1251, 1252, 1253, 1254, 1255, 1257 Unicode UTF8、UTF16BE、UTF16LE |
| Graphics | Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software |
| Interfaces | USB 2.0 Serial port: RS-232 (DB-9) IEEE 802.3 10/100Base-Tx Ethemet port (RJ-45) |
| Control Panel | One Tri-color LED : Power (Green, Orange and Red) Function Key : FEED |
| Real Time Clock | Standard |
| Power | Auto Switching 100-240VAC, 50-60Hz. |
| Environment | Operation Temperature: 41°F to 104°F (5°C to 40°C) Storage Temperature : -4°F to 122°F (-20°C to 50°C) |
| Humidity | Operation: 30-85%, non-condensing. Storage: 10-90%, non-condensing. |
| Agency Approvals | CE (EMC), FCC Class A, CB, CCC, cUL |
| Dimension | Length: 8.58” (218 mm) Height: 6.77” (172 mm) Width: 3.94” (100 mm) |
| Weight | 2.65 lbs (1.2 Kg) ,excluding consumables |
| Options | Cutter module Label Dispenser External label roll holder for 10” (250 mm) O.D. label rolls External label rewinder |
| Note | **Specifications are subject to change without notice. All company and/or product names are trademarks and/or registered trademarks of their respective owners. Minimum print height and maximum print speed specification compliance can be dependent on non-standard material variables such as label type,thickness, spacing, liner construction, etc. GoDEX is pleased to test non-standard materials for minimum print height, and maximum print speed capability. |
