Epson

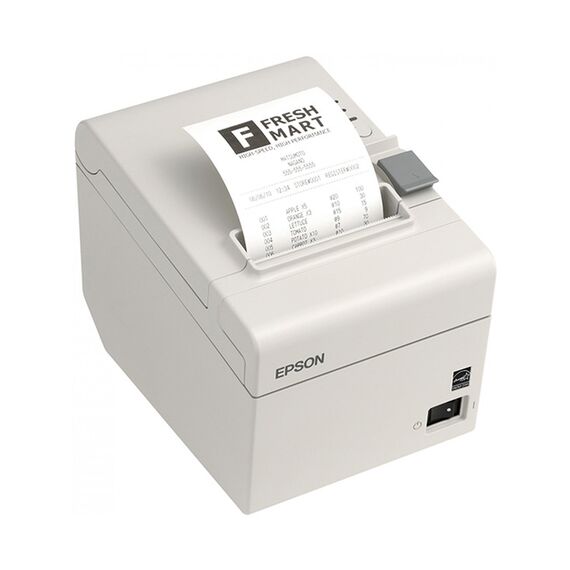

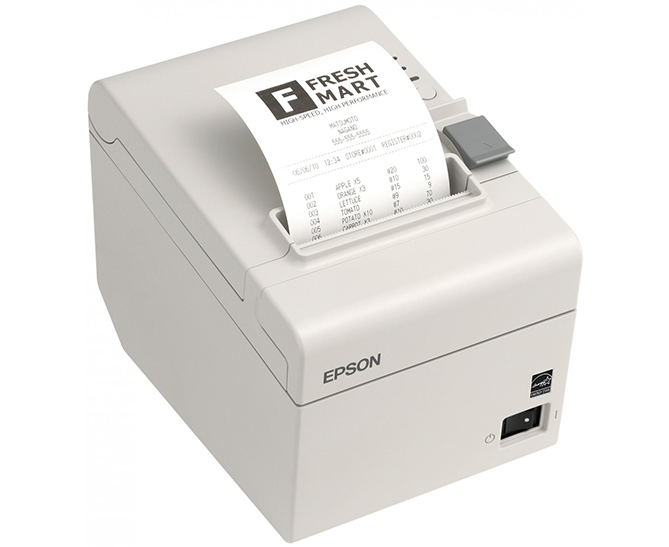

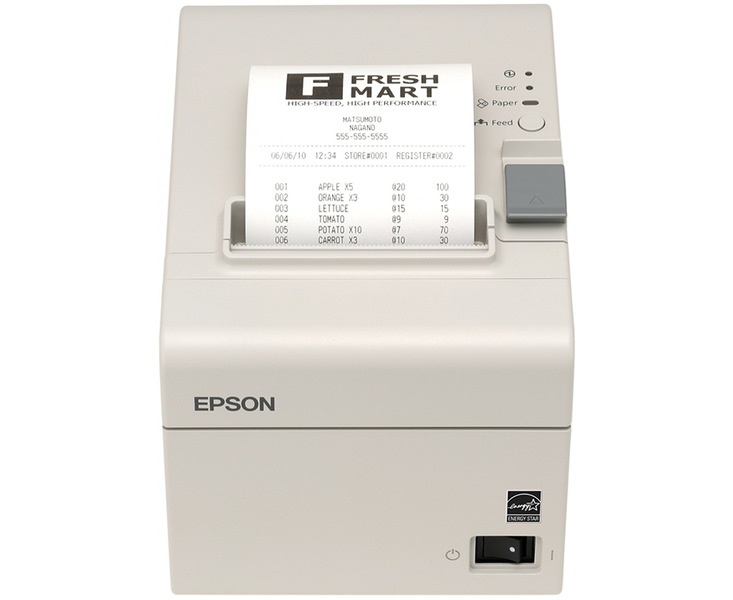

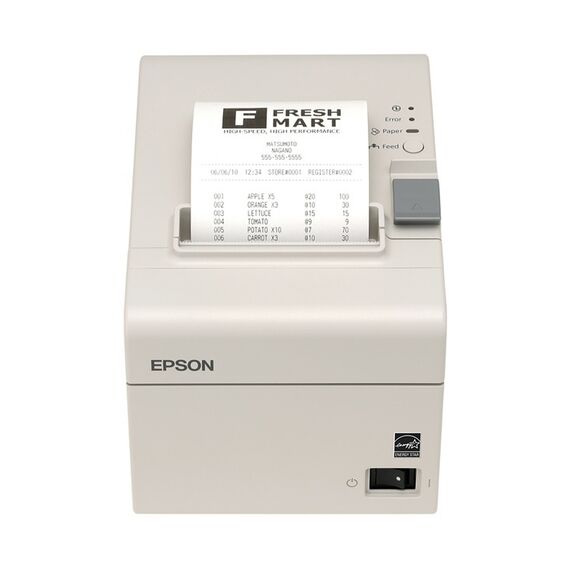

TM-T20, Receipt Printer,

Reliable receipt:

Get fast and reliable receipt printing for your business with Affordable printer Epson TM-T20. Easy to install and us Maintenance, this full-featured thermal printer supports High commercial requirements.

Fast Printer:

This printer is ideal for retail or hospitality applications. Prints patterns on 58 mm or 80 mm thick paper at up to 150 mm / sec. It is extremely compact and can be installed horizontally or hung vertically on a wall.

Qualified printer:

This comprehensive package includes everything you need, from drivers to professionals.

Support for operating system, cable and 24 languages for wall mounting
And even a waterproof keycap.
It also meets the ENERGY STAR requirements for increasing and decreasing energy efficiency.
Environmental impact.

Management:

Smart cable management Enclosure enables Epson TM-T20 is installed correctly It's in the corner of the shelf.

Smart Printer:

All features are available from Front to allow printers It joins smaller space.

Special Design:

The paper cover Easy to access and completely unlocked When mounted on the wall.

 Specifications:

PRINT TECHNOLOGY

Printing method Thermal line printing
PRINT FONT
Font
Column capacity standard
Column capacity 42 column mode
Character size (W x H)
Character set
Characters per inch2
9×17 / 12×24
Paper width 80mm: 48 / 64, paper width 58mm: 35 / 46
Paper width 80mm: 42 / 60, paper width 58mm: 42 / 31
0.88 × 2.13mm / 1.25 × 3mm
95 Alphanumeric, 18 set International, 128×43 Graphic
Bar code: UPC-A, UPC-E, JAN13(EAN13), JAN8(EAN), CODE39, ITF,
CODABAR(NW-7), CODE93, CODE128, GS1-128, GS1 DataBar
Two-dimensional code: PDF417, QRCode, MaxiCode, 2D GS1 DataBar,
Composite symbology
22.6cpi / 16.9cpi
INTERFACE Serial, USB or Ethernet. DKD always onboard
RECEIVE DATA BUFFER 4KB or 45bytes
PRINT SPEED Max. 150mm/sec
PAPER DIMENSIONS (mm) Roll paper: 79.5 ± 0.5 (W) × dia. 83.0 / 57.5 ± 0.5 (W) × dia. 83.0
POWER
Power consumption
Power supply
D.K.D. function
100 - 240V AC, 50 / 60 Hz
1.0A
Internal (AC cable included)
2 drives
RELIABILITY
Printer mechanism life
Auto cutter life
MTBF
MCBF
15 million lines
1.5 million cuts
360,000 hours
60,000,000 lines
OVERALL DIMENSIONS (W x D x H) 140 × 199 × 146mm
WEIGHT (approx.) 1.7kg
EMC STANDARDS FCC, VCCI, CE marking, AS / NZS CISPR22 class A, GOST-R
SAFETY STANDARDS UL / CSA / EN / TÜV / GOST-R
OPTIONS Affixing tape, external buzzer unit
STANDARD ACCESSORIES Roll paper × 1 roll (for checking the initial movement of the printer), CD-ROM (drivers, tool
software, user’s manual)3
, power switch cover, power switch waterproof cover, wall
hanging bracket, screws for wall hanging bracket, rubber feet for vertical installation, switch
panel for vertical installation, 58mm width paper guide plate, interface cable, AC cable
INSTALLATION Horizontally / vertically / vertically with wall hanging bracket / wall hangin
