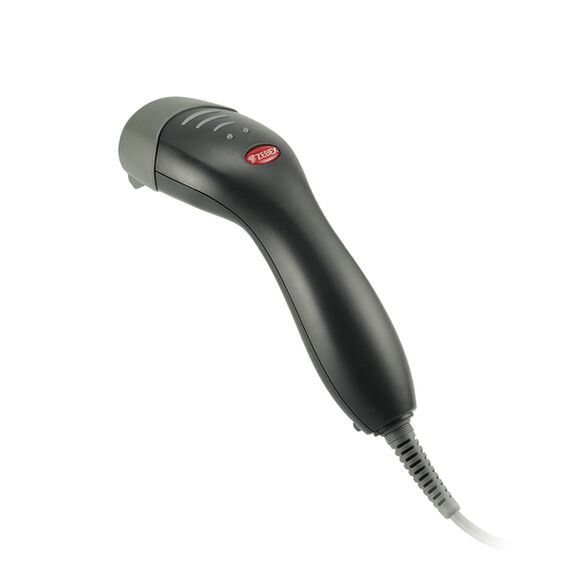

Zebex Z-3151HS Handheld Scanner

Zebex Z-3151HS

Zebex, Z-3151HS, Handheld Scanner,

The Z-3151HS is a high quality portable line laser scanner with a powerful scanning engine. It uses omnidirectional technology to convert seven laser lines into one, achieving an ultra-fast scanning speed of 500 scans per second. Built-in Z-SCAN + decoding technology provides real-time scanning and accuracy, ensuring unmatched first-time read success rates. The 32-bit MPU reads most types of 1D barcodes, GS1DataBar and PDF417.

Features:

Decode most 1D barcode, incl. GS1 DataBar & PDF 417
Excellent scanning ability
Proprietary Z-SCAN + technology
Rugged and comfortable form factor
Flexible connections
Honored by the iF Product Design Award 2009

Specifications:

Light Source
650 nm visible laser diode (VLD)

Optical System
Laser

Microprocessor
32-bit

Depth of Field
5 mil: 50 – 110 mm
7.5 mil: 30 – 150 mm
10 mil: 30 – 180 mm
13 mil: 35 – 210 mm
20 mil: 20 – 280 mm
Note: DOF may vary depending on environment condition and barcode quality.

Scan Angle
52°

Pitch / Roll / Skew angle
65° / 30° / 65°

Scan Rate
500 scans per second

Print Contrast
30% @ UPC/EAN 100%

Indicator
Three-color LED (green, red, blue)

Programmable Operation
Programmable tone & beep time

System Interface
Keyboard, RS-232, HID USB, USB Virtual COM, wand, OPOS, JPOS
