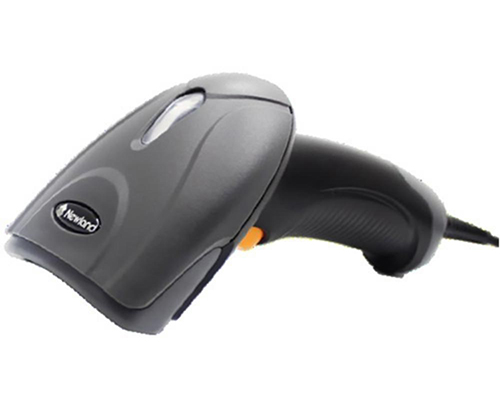

Newland HR2160 Barcode Scanner
Please sign in so that we can notify you about a reply
Brand:
Newland
Barcode Scanner Spec
Scanner Type
2 D
Scan Type
Imager
Scanner Resolution
5 mils
Interface
USB
Newland
HR2160, Barcode Scanner,
Cost-effective Solution:
HR21 Lotta is a cost-effective data acquisition solution that allows customers to enjoy the power of 2D barcode scanners at the price of 1D barcode scanners.
Elegant Appearance:
Combining ergonomics and aesthetics with the design, the HR21 Lotta not only provides operator comfort and performance for intensive manual wiping, but also meets the aesthetic requirements of the 020 era.
Enhanced Performance:
Equipped with Newland's 3rd generation decoder chip, the HR21 Lotta can read high-density, high-capacity, distorted barcodes printed on paper or displayed on the screen.
Durable Construction:
Embedded in an IP42 drop-proof (1.2m) housing with no moving parts, the HR21 Lotta is reinforced both inside and outside.
Specifications:
| Image Sensor | CMOS 640*480 |
| Processor | 1GHz,X1500 |
| Illumination | White LED |
| Aiming | Red LED (625±10nm) |
| Depth of Field EAN 13 (13mil) | 60-215mm |
| Depth of Field QR (15mil) | 40-105mm |
| Minimal Print Contrast | 25>#/td### |
| Scan Angle Roll | 360° |
| Scan Angle Pitch | ±45° |
| Scan Angle Skew | ±50° |
| Field of View Horizontal | 45.6° |
| Field of View Vertical | 34.2° |
| Scan Modes | Trigger(Level,Pulse), Sense, Continuous Mode |
| Scan Rate | 60 frames per second |
Data Capture
| 1D | All major 1D symbologies, including EAN-8, EAN-13, UPC-E, UPC-A, Code 128, UCC/EAN128, I2Of5, ITF14,ITF6, Matrix 25, CodaBar, Code 39, Code 93, ISSN, ISBN, Industrial 25,Standard 25, Plessey, Code 11, MSI Plessey, UCC/EAN Composite, GS1 Databar, Code 49, Code 16K. |
| 2D | All major 2D symbologies, including PDF417, QR Code, Micro QR, Data Matrix, Aztec, Maxicode,Chinese Sensible Code, GM Code, MicroPDF417, Code One. |
Physical
| Dimensions (mm) | 145×101×68mm |
| Weight | 115g |
| Material | PC,ABS |
| Buttons | Trigger |
| Interfaces | RS-232, USB,PS2 |
| Notifications | Beep, LED indicator |
| Input Voltage | 5VDC±5>#/td### |
| Current @ 5VDC Operating | 165.8mA (typical), 170.2mA (max.) |
| Current @ 5VDC Standby | 58.6mA |
| Power Consumption | 794.2mW (typical) |
| Power Supply Input | DC5V, 1.5A |
| Power Supply Output | AC100~240V, 50~60Hz |
Environmental
| Operating Temperature | -20℃ to 60℃ (-4°F to 140°F) |
| Storage Temperature | -40℃ to 70℃ (-40°F to 158°F) |
| Humidity | 5%~95% (non-condensing) |
| Electro Static Discharge (ESD) | ±8 KV (direct discharge); ±15 KV (air discharge) |
| Drop | 1.5m |
| IP Rating | IP42 |
Accessories
| Standard | USB Cable |
| Optional | RS232 Cable,Adapter,Stand |
Software
| Configuration Tools | EasySet (configuration) |
Certifications
| Hardware | CE,FCC,RoHS |
Warranty
| Standard | 5 years |
