Newland

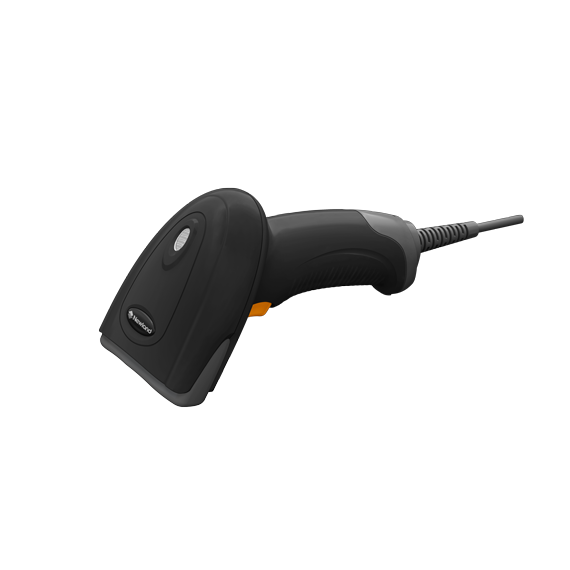

 HR200, Shark, Scanner,

Suitable for various needs:

The HR200 Shark is a 1D device 2D mobile scanner suitable for a variety of Scan bar code required.

Advanced technology:

Includes core UIMG technology Designed and manufactured by ourselves New Zealand self-identification. UIMG Technology Optical, CMOS, CCD, digitizer, Decoder, image processing and integration unit Systems. Scanner supports all files Standard 1D barcodes. This' Reading performance reaches and exceeds World Standards. With accessories Assuming the user can customize the file Scanner for your user area.

Durable and easy to operate:

It is comfortable and high performance A portable CMOS scanner can be used for files. Various applications such as retail and logistics Office automation and more.

Specifications:

Product
Performance
Image Sensor CMOS
Resolution 752 * 480
Interface RS232 / HID-KBW / UDP / USB COM Port Emulation / HID-POS
Symbologies 2D PDF417, QR Code(Model 1/2), DataMatrix (ECC200, ECC000, 050,
080,100,140), Aztec, Maxicode, etc.
1D Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar,
Interleaved 2 of 5, ISBN, Code 93, GS1 Databar, etc
Precision ≥ 5mil
Light Source LED (630 nm ± 10 nm)
Light Intencity 300 LUX (130 mm )
Depth of Field 30 mm ~ 240 mm
Print Contrast Signal ≥30%
Sensitivity** Pitch 360°@0°Roll and 0° Skew
Roll ±55°@0°Roll and 0° Skew
Skew ±60°@0°Roll and 0° Skew
Mechanical/
Electrical
Power Consumption 1.65 W
Voltage DC 5 V
Current Maximum 330mA
Operating 290mA
Idle 200mA
Weight 250g
Environmental Operating Temperature -5℃ to +45℃
Storage Temperature -40℃ to +60℃
Humidity 0 to 95% (non-condensing)
Certifications FCC Part15 Class B, CE EMC Class B
Accessories Flex Cable RS232 This cable connects to the RS232 port of HR200 with a RJ45 port. With a standard female RS232 port to connect to standard male RS232 port. With a power port to accept power adapter supply.
USB Connects to the USB Slave port of HR200 with a RJ45 port. With a standard USB Slave port to connect to standard USB Host port.
Bracket The bracket for HR200, the HR200 could be mounted in the bracket.
Power Adaptor The power adapter for HR200 by the RS232 Cable. Output: DC5V, 1.5A; Input: AC100~240V, 50~60HZ.
