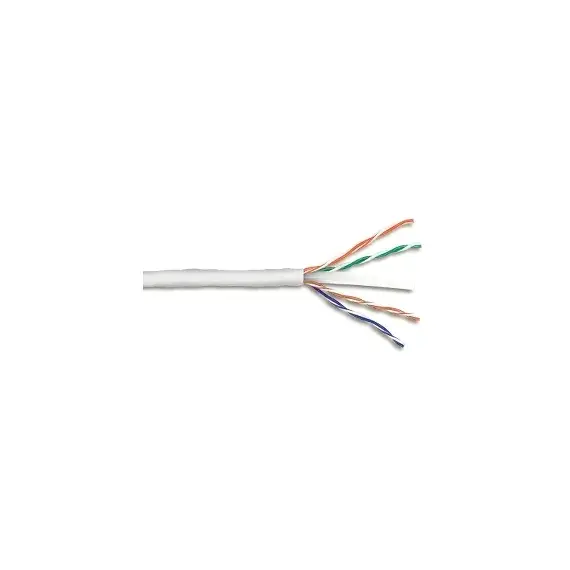

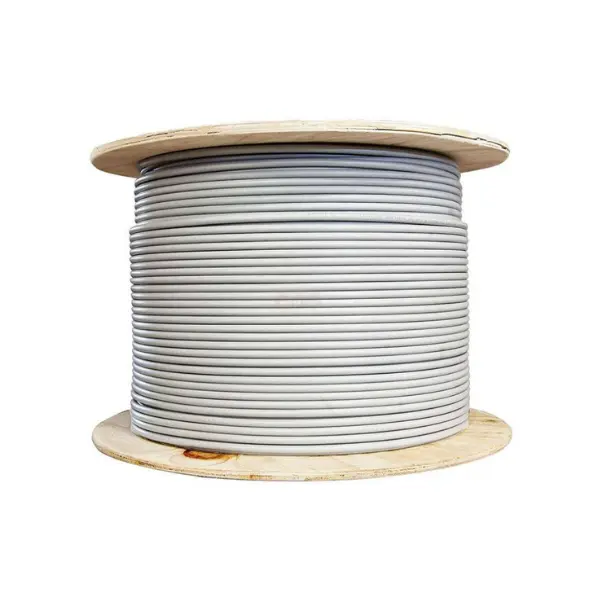

Schneider ACT4P6ULS3RWE Cat6 4pr LSZH UTP Cable 305m
Please sign in so that we can notify you about a reply
Brand:
Schneider
Model :
ACT4P6ULS3RWE
Color
White
Shield
U/UTP
Standard & EU Directives Conformance
ANSI/TIA/EIA-568-B ISO/IEC 11801 UL 444
Schneider ACT4P6ULS3RWE
Schneider ACT4P6ULS3RWE Cat6 4pr LSZH UTP Cable 305m
Main:
| range | Actassi |
|---|---|
| product or component type | Copper cable |
| colour tint | White |
| cable shielding type | U/UTP |
Complementary:
| type of cable | 4 pair cables |
|---|---|
| communication network category | 6 |
| minimum return loss | Guaranteed: 21.0 dB at 1 MHz Guaranteed: 24.0 dB at 4 MHz Guaranteed: 25.5 dB at 8 MHz Guaranteed: 26.0 dB at 10 MHz Guaranteed: 26.0 dB at 16 MHz Guaranteed: 26.0 dB at 20 MHz Guaranteed: 25.3 dB at 25 MHz Guaranteed: 24.6 dB at 31.25 MHz Guaranteed: 22.5 dB at 62.5 MHz Guaranteed: 21.1 dB at 100 MHz Guaranteed: 19.0 dB at 200 MHz Guaranteed: 18.3 dB at 250 MHz |
| attenuation | Guaranteed: 9.5 dB @ 25 kHz per 100 m cable Guaranteed: 10.7 dB @ 31.25 kHz per 100 m cable Guaranteed: 19.8 dB @ 100 kHz per 100 m cable Guaranteed: 32.8 dB @ 250 kHz per 100 m cable Guaranteed: 6 dB @ 10 kHz per 100 m cable Guaranteed: 15.4 dB @ 62.5 kHz per 100 m cable Guaranteed: 29 dB @ 200 kHz per 100 m cable Guaranteed: 8.5 dB @ 20 kHz per 100 m cable Guaranteed: 3.8 dB @ 4 kHz per 100 m cable Guaranteed: 5.3 dB @ 8 kHz per 100 m cable Guaranteed: 7.6 dB @ 16 kHz per 100 m cable Guaranteed: 2 dB @ 1 kHz per 100 m cable |
| power sum near-end crosstalk [PSNEXT] | Guaranteed: 75.3 dB at 1 MHz Guaranteed: 66.3 dB at 4 MHz Guaranteed: 61.8 dB at 8 MHz Guaranteed: 60.3 dB at 10 MHz Guaranteed: 57.2 dB at 16 MHz Guaranteed: 55.8 dB at 20 MHz Guaranteed: 54.3 dB at 25 MHz Guaranteed: 52.9 dB at 31.25 MHz Guaranteed: 48.4 dB at 62.5 MHz Guaranteed: 45.3 dB at 100 MHz Guaranteed: 40.8 dB at 200 MHz Guaranteed: 39.3 dB at 250 MHz |
| near end crosstalk [NEXT] | Guaranteed: 77.3 dB at 1 MHz Guaranteed: 68.3 dB at 4 MHz Guaranteed: 63.8 dB at 8 MHz Guaranteed: 62.3 dB at 10 MHz Guaranteed: 59.2 dB at 16 MHz Guaranteed: 57.8 dB at 20 MHz Guaranteed: 56.3 dB at 25 MHz Guaranteed: 54.9 dB at 31.25 MHz Guaranteed: 50.4 dB at 62.5 MHz Guaranteed: 47.3 dB at 100 MHz Guaranteed: 42.8 dB at 200 MHz Guaranteed: 41.3 dB at 250 MHz |
| input impedance | 100 Ohm (+/- 6) at 1…100 MHz |
| maximum loop resistance | 73.2 Ohm |
| capacitance unbalance | 330 pF / 100 m |
| maximum resistance unbalance | 5 >#/span### |
| wire insulation material | PE |
| conductor material | Solid bare copper |
| AWG gauge | AWG 23 |
| cable outer diameter | 6 mm |
| cable length | 305 m |
Environment:
| ambient air temperature for operation | 75 °C |
|---|---|
| product certifications | IEC |
| flame retardance | LSZH |
| standards | ANSI/TIA/EIA-568-B ISO/IEC 11801 UL 444 |
Packing Units:
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 14.5 kg |
| Package 1 Height | 35 cm |
| Package 1 width | 27 cm |
| Package 1 Length | 33 cm |
Contractual warranty:
| Warranty | 18 months |
|---|
