Ruijie Reyee RG-EST350 V2 5GHz Dual-stream 802.11ac 5KM Wireless Bridge

Ruijie Reyee RG-EST350 V2 - Description

5GHz Dual-stream 802.11ac 5KM Wireless Bridge

Long-Range Wireless Connectivity:

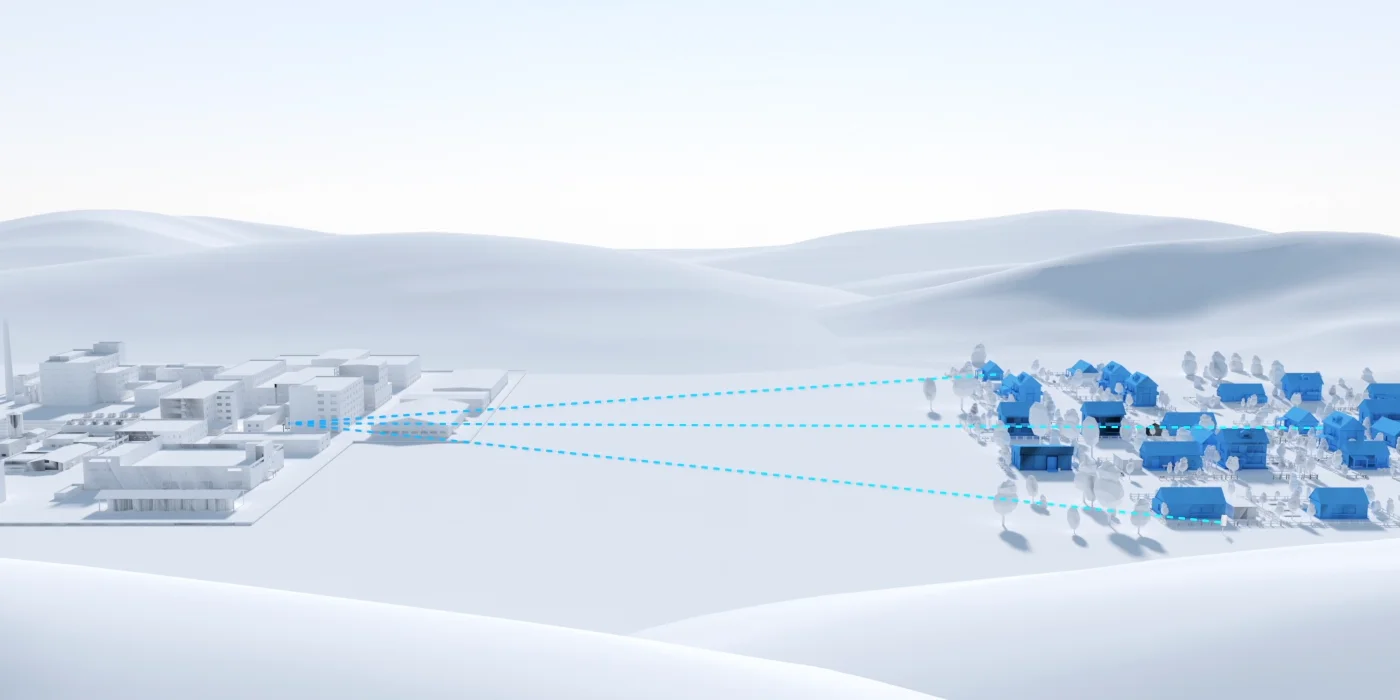

The Ruijie Reyee RG-EST350 V2 5GHz Dual-stream 802.11ac Wireless Bridge is a powerful outdoor networking solution designed to deliver reliable long-distance wireless connectivity. Built for environments such as factories, transportation systems, warehouses, and surveillance deployments, this bridge enables stable point-to-point communication up to 5 kilometers. Using advanced 802.11ac wireless technology and dual-stream transmission, the device provides fast and stable data transfer for demanding network applications. Its plug-and-play configuration allows installers to deploy the bridge quickly without complex setup or alignment, making it ideal for large outdoor installations where wired infrastructure is difficult or expensive to deploy.

High-Speed 5GHz Transmission for Long Distances:

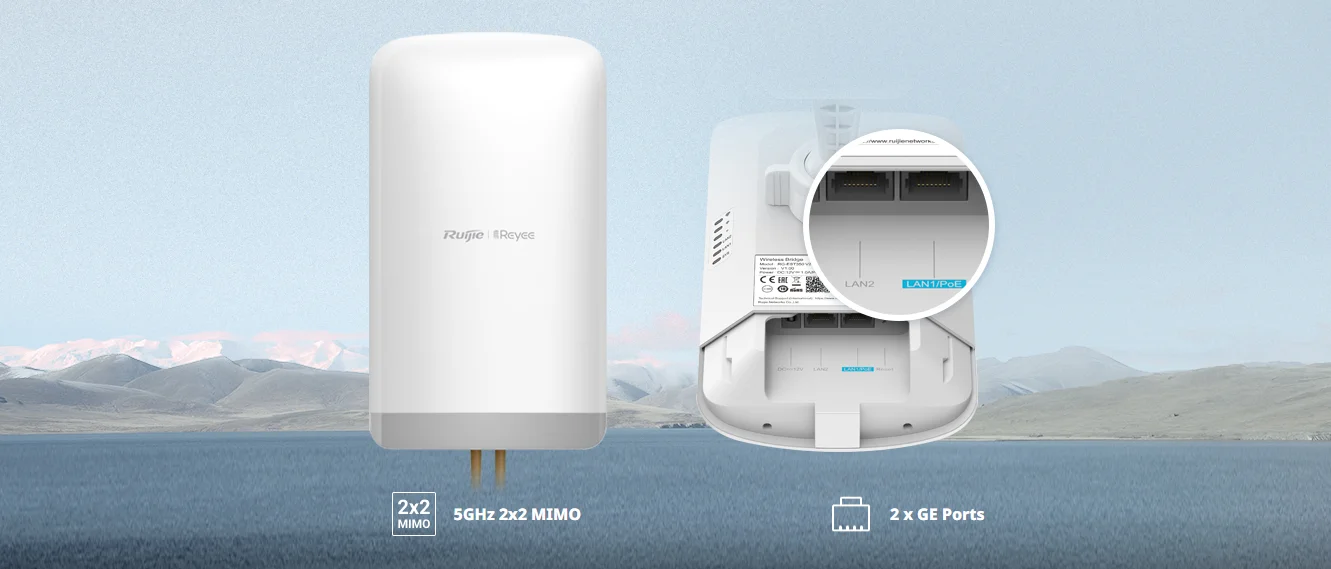

The RG-EST350 V2 operates on the 5GHz frequency band with 2×2 MIMO dual-stream technology, enabling efficient high-speed wireless transmission across long distances. With throughput reaching 230 Mbps at 1 km, 200 Mbps at 3 km, and 150 Mbps at 5 km, the bridge ensures smooth data transmission for IP networks and video surveillance systems. The adjustable channel width options of 20 / 40 / 80 MHz provide flexibility for optimizing performance in different wireless environments. This high-capacity design allows businesses to extend networks between buildings, remote monitoring stations, and infrastructure locations without the need for fiber cabling.

Designed for Large-Scale Surveillance Applications:

One of the key advantages of the RG-EST350 V2 is its ability to support large numbers of security cameras across long distances. The bridge can handle up to 45 × 2MP cameras at 3 km and 20 × 2MP cameras at 5 km, making it a practical solution for city surveillance, industrial facilities, and transportation networks. By delivering stable bandwidth and strong signal reception, the bridge ensures smooth video streaming and reliable monitoring even in large-scale deployments. This capability makes it an excellent choice for security integrators and network installers who need dependable wireless transmission for IP camera systems.

Rugged Outdoor Design and Reliable Operation:

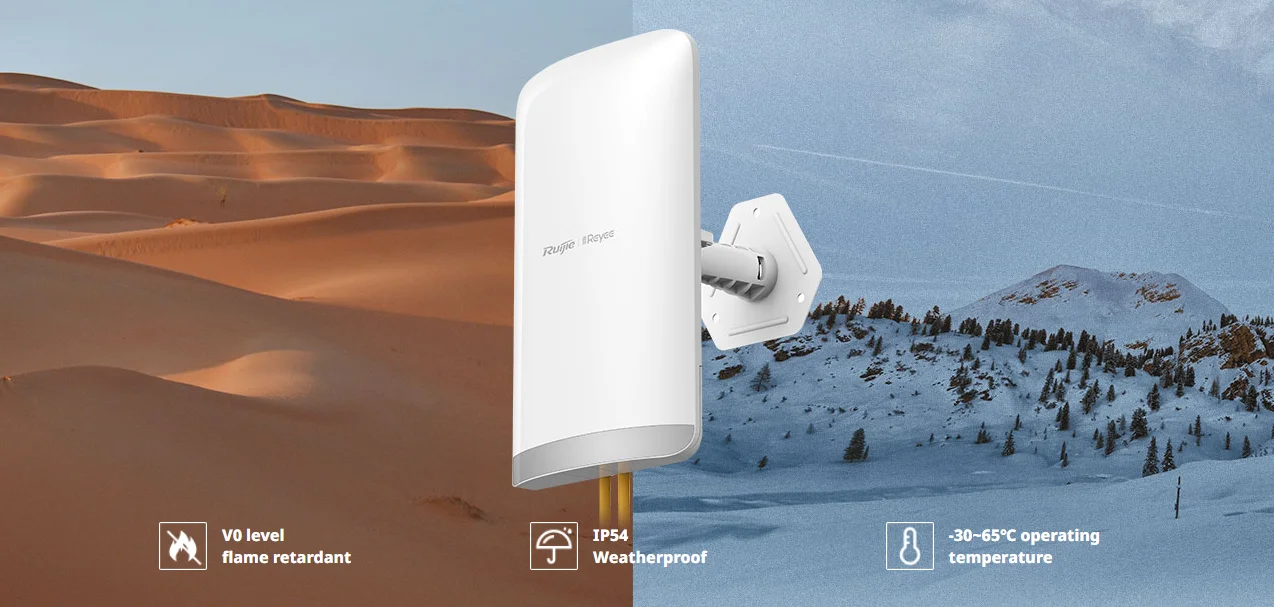

Built for outdoor environments, the RG-EST350 V2 features a durable IP54 weatherproof enclosure that protects the device from dust and water exposure. It also supports an extended operating temperature range from –30°C to +65°C, ensuring stable performance in extreme climates. The device is constructed with V0 level flame-retardant materials, enhancing safety and durability in industrial environments. With an impressive MTBF of 400,000 hours, the wireless bridge offers long-term reliability and minimal maintenance requirements.

Smart Cloud Management and Easy Installation:

The wireless bridge integrates with the Ruijie Reyee cloud management platform, allowing administrators to monitor network performance, check statistics, and remotely manage devices from anywhere. Installers benefit from factory-paired devices, meaning the two bridge units automatically connect once powered on. This significantly simplifies installation and reduces configuration time. Additionally, network administrators can restart or manage devices through the Ruijie Reyee mobile app, making maintenance and troubleshooting easier in remote installations.
