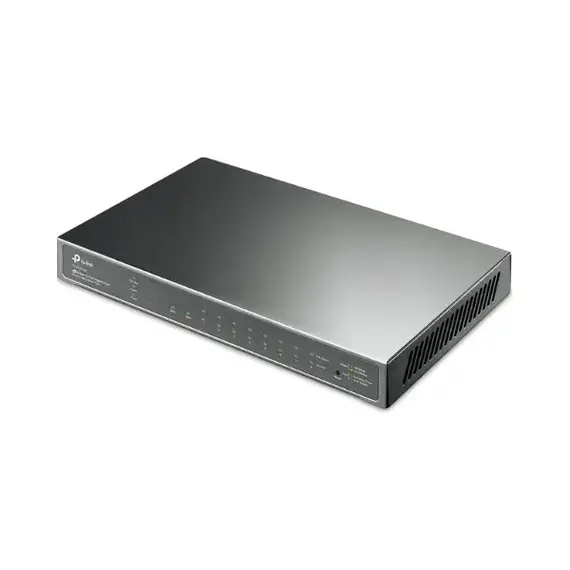

TP-Link TL-SG2210P
TP-Link TL-SG2210P JetStream 8-Port Gigabit Smart Switch with 8-Port PoE+
61W PoE Budget Collection 8 802.3af / PoE + compliant ports for a total power of 61W
Full Gigabit ports provide 8 Gigabit PoE + ports and 2 Gigabit SFP ports with high speed connection.
Built-in Omada SDN ፡ zero zero touch supply (ZTP), centralized cloud management and intelligent monitoring.
Access to centralized cloud administration and cloud applications for maximum convenience and ease of administration.
Powerful Security Strategies Patch IP-MAC Port Bundle, ACL, Port Security, DoS Protection, Hurricane Control, DHCP snooping, 802.1X, Radius Verification and more.
Advanced audio and video applications snooping through L2 / L3 / L4 QoS and IGMP.
Universal control. WEB / CLI, SNMP and RMON management modes offer a wide range of management options.

Software Defined Networking (SDN) with Cloud Access:
Omada Software's Integrated Network (SDN) Platform integrates network hardware, including access points, switches, and access routes to provide 100% centralized cloud management. Omada creates a highly scalable network managed by a single interface. Wireless and wired connections are provided for use in hospitality, education, retail, office and more.

Specifications:
HARDWARE FEATURES |
---|
Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x |
---|

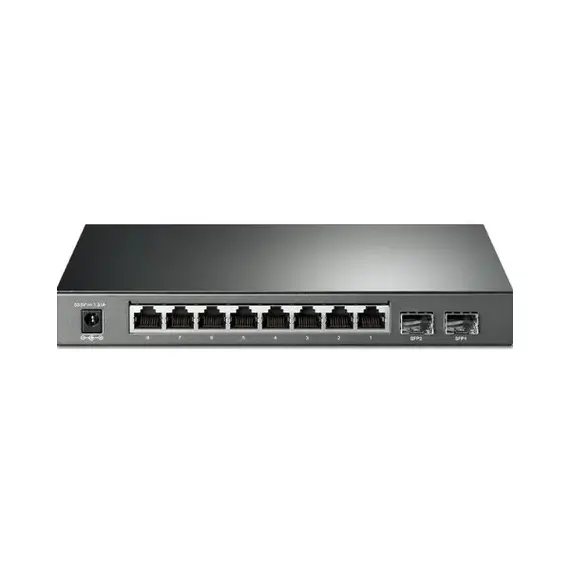

Interface | 8 10/100/1000Mbps RJ45 Ports 2 1000Mbps SFP Slots (Auto-Negotiation/Auto MDI/MDIX) |
---|
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 1000BASE-X: MMF, SMF |
---|
Fan Quantity | Fanless |
---|
Power Supply | 100~240VAC, 50/60Hz External Power Adapter(Output: 54VDC/1.3A) |
---|
Power Consumption | • 10.3W (without POE device connected) • 76.5W (with 61W POE devices connected) |
---|
PoE Ports (RJ45) | • Standard: 802.3af/at compliant • PoE Ports: 8 Ports • Power Supply: 61 W* |
---|
Dimensions ( W x D x H ) | 209 x 126 x 26 mm |
---|
PERFORMANCE |
---|
Bandwidth/Backplane | 20 Gbps |
---|
Packet Forwarding Rate | 14.88 Mpps |
---|
MAC Address Table | 8K |
---|
Packet Buffer Memory | 4.1 Mbit |
---|
Jumbo Frame | 9 KB |
---|
SOFTWARE FEATURES |
---|
Quality of Service | • 802.1p CoS/DSCP priority • 8 priority queues • Priority Schedule Mode - SP (Strict Priority) - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port/Flow based Rating Limit • Smoother Performance • Storm Control - Multiple Control Modes(kbps/ratio) - Broadcast/Multicast/Unknown-Unicast Control |
---|
L2 and L2+ Features | • 16 IP Interfaces - Support IPv4/IPv6 Interface • Static Routing - 32 IPv4/IPv6 Static Routes • DHCP Server • DHCP Relay - DHCP Interface Relay - DHCP VLAN Relay • DHCP L2 Relay • Static ARP • Proxy ARP • Gratuitous ARP • Link Aggregation - Static link aggregation - 802.3ad LACP - Up to 8 aggregation groups and up to 8 ports per group • Spanning Tree Protocol - 802.1D STP - 802.1w RSTP - 802.1s MSTP - STP Security: TC Protect, BPDU Filter/Protect, Root Protect • Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - CPU Mirroring - One-to-One - Many-to-One - Flow-Based - Ingress/Egress/Both • Device Link Detect Protocol (DLDP) • 802.1ab LLDP/ LLDP-MED |
---|
VLAN | • VLAN Group - Max. 4K VLAN Groups • 802.1Q tag VLAN • MAC VLAN • Protocol VLAN • GVRP • Voice VLAN |
---|
Access Control List | • Support up to 230 entries • Time-Range - Time Slice - Week Time-Range - Absolute Time-Range - Holiday • Time-based ACL • MAC ACL - Source MAC - Destination MAC - VLAN ID - User Priority - Ether Type • IP ACL - Source IP - Destination IP - IP Protocol - TCP Flag - TCP/UDP Source Port - TCP/UDP Destination Port - DSCP/IP TOS • IPv6 ACL • Combined ACL • Rule Operation - Permit/Deny • Policy Action - Mirror - Rate Limit - Redirect - QoS Remark • ACL Rules Binding - Port Binding - VLAN Binding • Actions for flows - Mirror (to supported interface) - Redirect (to supported interface) - Rate Limit - QoS Remark |
---|
Security | • AAA • 802.1X - Port based authentication - MAC (Host) based authentication - Authentication Method includes PAP/EAP-MD5 - MAB - Guest VLAN - Support Radius authentication and accountability • IP/IPv6-MAC Binding - 512 Binding Entries - DHCP Snooping - DHCPv6 Snooping - ARP Inspection - ND Detection • IP Source Guard - 253 Entries - Source IP+Source MAC • IPv6 Source Guard - 183 Entries - Source IPv6 Address+Source MAC • DoS Defend • Static/Dynamic/Permanent Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control - kbps/ratio control mode • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC based access control |
---|
Management | • Web-based GUI • Command Line Interface (CLI) through telnet • SNMPv1/v2c/v3 • SNMP Trap/Inform • RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • SNTP • System Log |
---|
OTHERS |
---|
Certification | CE, FCC, RoHS |
---|
Package Contents | TL-SG2210P Power Adapter Installation Guide Rubber Feet |
---|
Environment | Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
---|
TL-SG2210P datasheet (TL-SG2210P_datasheet.pdf, 974 Kb) [Download]
