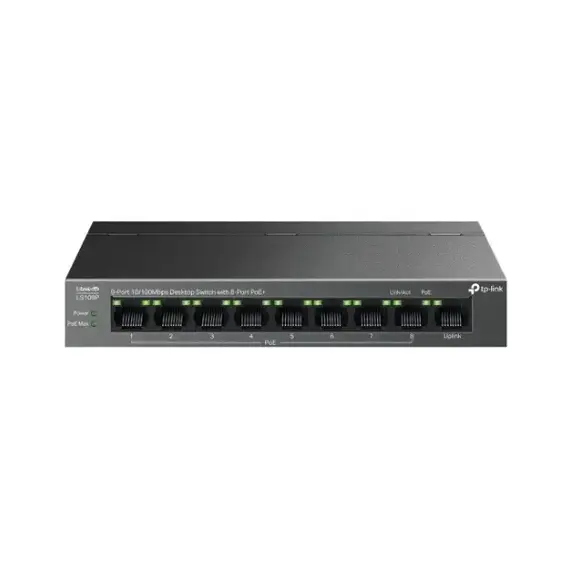

TP-Link ​LS109P PoE+ Switch, 9-Port 10/100Mbps

TP-Link LS109P - Description

PoE+ Switch, 9-Port 10/100Mbps

A High-Performance 9-Port Desktop Switch with PoE+ Capability:

TP-Link LS109P is a versatile 9-port desktop switch designed for small to medium-sized networks that require Power over Ethernet (PoE) capabilities. It features 8 PoE+ ports that comply with the 802.3af/at standards, providing power and data connectivity to devices like IP cameras, access points, and IP phones over a single cable. With a robust 63W poe switch budget, this switch supports up to 30W per port, making it ideal for high-power devices.

Extended PoE Transmission for Larger Networks:

One of the standout features of the TP-Link LS109P is its Extend Mode, which allows poe switch transmission distances to reach up to 250 meters. This makes the switch perfect for surveillance camera deployments in larger areas, such as parking lots or warehouses. However, it's important to note that in Extend Mode, the port speed drops to 10 Mbps, which may affect performance based on the connected devices and distance.

PoE Auto Recovery for Reliable Operation:

The poe switch Auto Recovery feature automatically detects and reboots unresponsive PoE-powered devices, such as IP cameras or wireless access points. This ensures that your network devices stay operational without requiring manual intervention, providing a reliable and stable network infrastructure. This feature is particularly beneficial in scenarios where devices are deployed in hard-to-reach locations.

Traffic Separation for Enhanced Network Security:

For improved security and stability, the tp-link switch includes Isolation Mode. This feature allows you to separate client traffic with a single click, reducing the risk of snooping, tampering, and broadcast storms. This ensures that sensitive data is protected and that your network operates efficiently without unnecessary interruptions.

Silent and Efficient Operation with Fanless Design:

The network switches fanless design ensures silent operation, making it ideal for deployment in noise-sensitive environments like offices, homes, or meeting rooms. In addition to reducing noise, the fanless design also contributes to lower power consumption, ensuring energy-efficient operation. The durable metal casing further enhances the switch's longevity and protects it from environmental wear.

Plug and Play Installation for Easy Setup:

The tp-link switch is designed for plug-and-play installation, meaning no complex configuration is required to get started. Simply connect the switch to your network devices and enjoy instant connectivity. Whether you’re expanding your existing network or setting up a new one, the network switches offers hassle-free deployment with flexible desktop or wall-mounting options.

Intelligent Power Management and Green Technology:

With intelligent power management, the switch can adjust power consumption according to the needs of connected devices, ensuring efficient energy use. The switch also complies with IEEE 802.3af/at standards, supporting green technology to further reduce energy consumption. The switch automatically powers down unused ports and adjusts power output based on cable length, contributing to lower overall energy costs.

Comprehensive PoE and Network Management Features:

The network switches offers various advanced features to improve network performance and management. These include MAC address auto-learning and auto-aging, which help maintain optimal network performance by managing data traffic efficiently. Additionally, the switch supports IEEE 802.3x flow control, which ensures data flow remains smooth even during high network traffic.

Reliable and Durable for Different Environments:

The durable metal casing of the TP-Link LS109P makes it suitable for various environments, including both homes and small business settings. It can operate in temperatures ranging from 0–40°C (32–104°F) and is designed to withstand humidity levels between 10–90%. Its compact design, measuring 171×98×27 mm, ensures that it can fit into tight spaces without compromising functionality.

Package and Environmental Specifications:

The tp-link switch comes with everything you need for a seamless installation, including the switch itself, a power adapter, installation guide, and rubber feet. It is certified for CE, FCC, and RoHS compliance, meeting international standards for safety and environmental impact. Its low energy consumption and green technology features make it an eco-friendly choice for businesses looking to reduce their carbon footprint.
