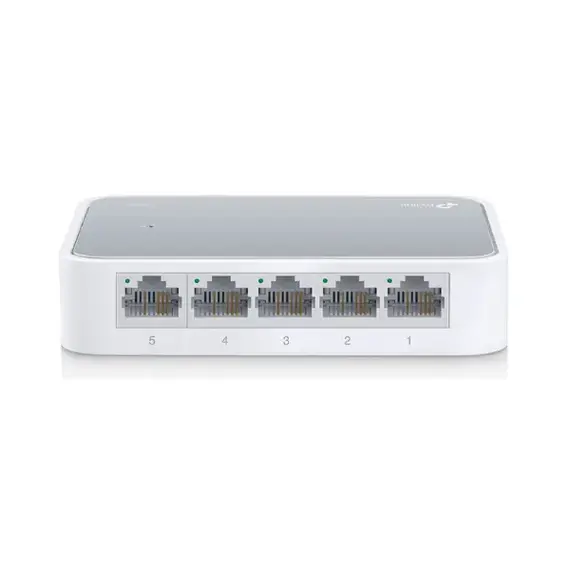

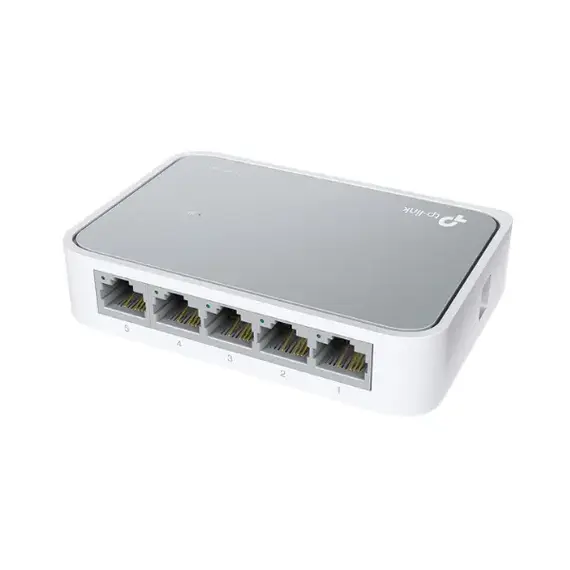

TP-Link TL-SF1005D
TP-Link TL-SF1005D 5-Port 10/100Mbps Desktop Switch
5 RJ45 auto-negotiation 10 / 100Mbps ports, auto-MDI / MDX support
Green Ethernet technology saves up to 68% energy.
The IEEE 802.3x flow controller ensures reliable data transmission
Plastic body, desktop design
Pin and play, no configuration required
What This Product Does:
The TL-SF1005D 5-Port 10 / 100Mbps Desktop Switch is an easy way to expand your wireless network. All five ports support auto-MDX, eliminating the hassle of deciding which type of cable to use. The full dual-capacity, high-performance TL-SF1005D is ideal for expanding your network. What's more, with innovative energy-saving technology, the TL-SF1005D can reduce energy consumption, making it an environmentally friendly solution for your home or office network.
High Performance:
The TL-SF1005D Fast Ethernet Switch has auto Rating of 5 RJ45 ports at 10/100 Mbps. All ports support automatic MDI / MDIX functionality, eliminating overhead cables or uplink ports. Unobtrusive converter architecture, TL-SF1005D transmission and wired large packet display for maximum output. Significant file transfer performance significantly improved with the 2K Jumbo platform. The IEEE 802.3x flow controller reduces traffic congestion for full duplex and half-duplex and ensures reliable operation of the TL-SF1005D.
Easy to Use:
The automatic functions of this Ethernet converter make installation easy and simple. No configuration required. Automatic MDI / MDIX eliminates the need for cable switching. The auto-negotiation feature on each port adjusts the network device speed (10, 100 megabytes per second) and cleverly for compatibility and optimized performance.
ٍSpecifications:
HARDWARE FEATURES | |
---|---|
Interface | 5 × 10/100Mbps RJ45 Ports Auto Negotiation / Auto MDI/MDIX |
Fan Quantity | Fanless |
External Power Supply | External Power Adapter(Output: 5.0VDC / 0.6A) |
Dimensions ( W x D x H ) | 104 × 70 × 22 mm |
Max Power Consumption | 1.9W |
Max Heat Dissipation | 6.4 BTU/h |
SOFTWARE FEATURES | |
---|---|
Transfer Method | Store and Forward |
Advanced Functions | Green Technology 802.3X Flow Control Back Pressure |
OTHERS | |
---|---|
Certification | FCC, RoHs |
Package Contents | 5-Port 10/100Mbps Desktop Switch Power Adapter Installation Guide |
Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~60℃ (-40℉~140℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
