TP-Link LS1005G

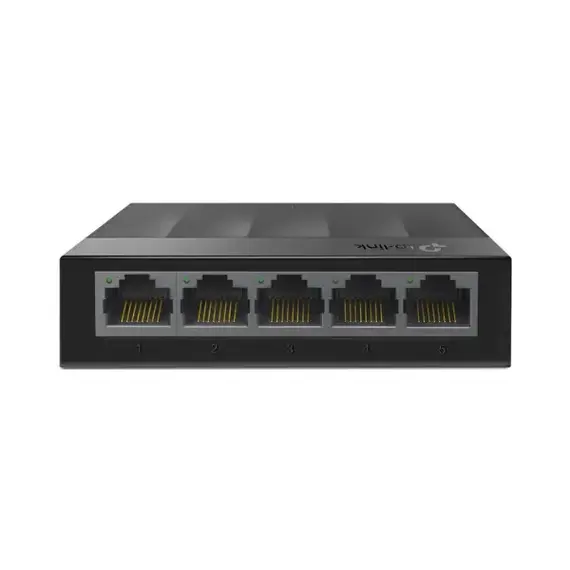

TP-Link LS1005G 5-Port 10/100/1000Mbps Desktop Switch
5 ports 10/100 / 1000MBos RJ45 Auto-negotiation, auto-MDI / MDX support
Green Ethernet technology saves energy
The IEEE 802.3X flow controller ensures reliable data transmission
Plastic film, desktop or wallpaper design
Pin and play, no configuration required
The fan design ensures a smooth operation
Let LiteWave Bring You Lighter Network Life:
TP-Link LiteWave Series Unmanaged Switches are an easy and affordable way to expand your network. It is easy and safe to use. With these plug-in and play adapters you can expand your network connections to multiple devices at the same time.
Plug and Play:
Go Green with Your Ethernet:
The LiteWave series supports energy-saving technologies that help you save energy and money. The power consumption is automatically adjusted according to the connection status and cable length, which allows you to expand your network and reduce your carbon footprint. Save the planet and reduce your energy costs, everyone is a winner!
Gigabit Ports For More Reliable Speeds:
Improve the reliability of devices connected to the LS1005G 5-port Gigabit Desktop Switch. Unrestricted 5 10/100 / 1000Mbps ports allow you to transfer large bandwidth files instantly without any interference.
Use Where You Need, However You Need:
The LS1005G is fully compatible with network devices such as computers, printers, webcams and IPTV. It has a wide range of applications and is ideal for communicating in school dormitories, monitoring, home and small business.
Specifications:
HARDWARE FEATURES | |
---|---|
Standards and Protocols | IEEE 802.3i/802.3u/ 802.3ab/802.3x |
Interface | 5× 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports |
Fan Quantity | Fanless |
External Power Supply | External Power Adapter (Output: 5VDC/0.6A) |
Dimensions ( W x D x H ) | 90 × 72 × 23 mm |
Max Power Consumption | 3.7W |
Max Heat Dissipation | 12.6 BTU/h |
PERFORMANCE | |
---|---|
Switching Capacity | 10 Gbps |
Packet Forwarding Rate | 7.4 Mpps |
MAC Address Table | 2K |
Packet Buffer Memory | 1.5 Mb |
Jumbo Frame | 16 KB |
SOFTWARE FEATURES | |
---|---|
Advanced Features | Green Technology 802.3X Flow Control Back Pressure |
Transfer Method | Store and Forward |
OTHERS | |
---|---|
Certification | FCC, RoHS |
Package Contents | 5-Port 10/100/1000Mbps Desktop Switch Power Adapter Installation Guide |
Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40℃~60℃ (-40℉~140℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing |
