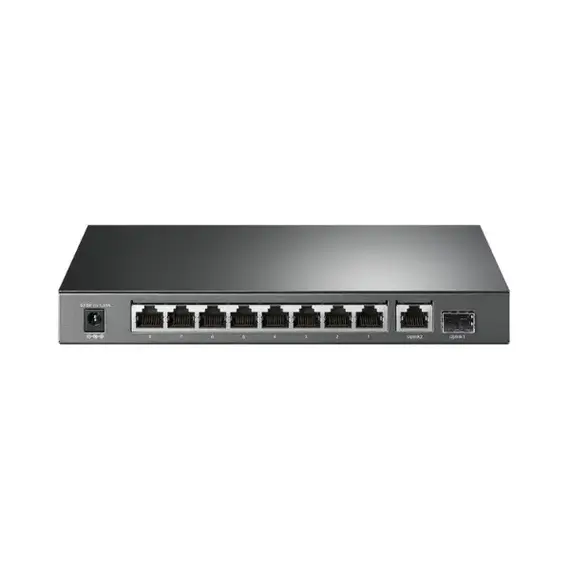

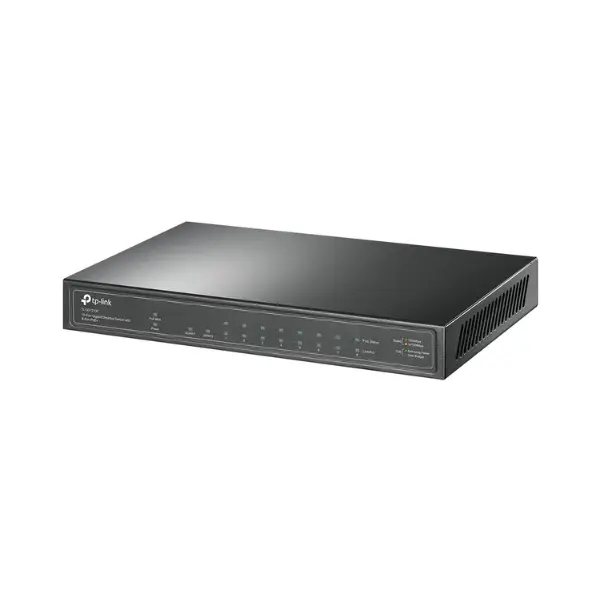

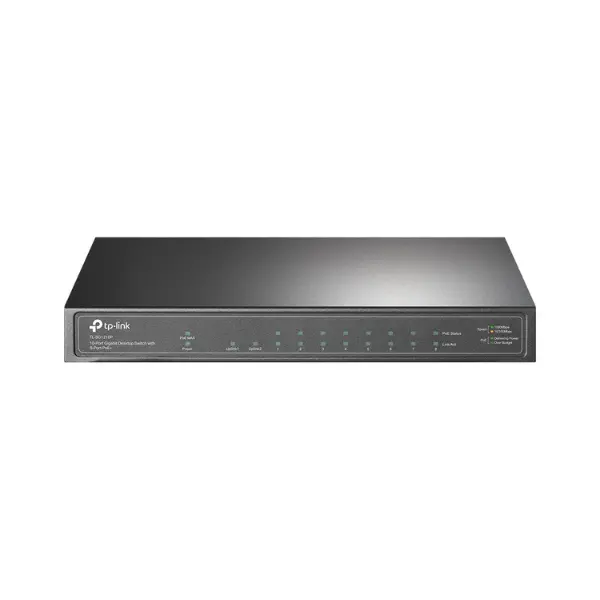

Tp-Link 10-Port Gigabit Desktop Switch 8-Port PoE+ TL-SG1210P
PoE Switches for Your Ultra Convenience 10-Port Gigabit Desktop Switch with 8-Port PoE+ TL-SG1210P.
Power over Ethernet
Port 1-8 of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PDs).
When total power consumption excels 63W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s
For Fluent Online Experience
Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.
Snooping
Traffic Optimization for IPTV
IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.

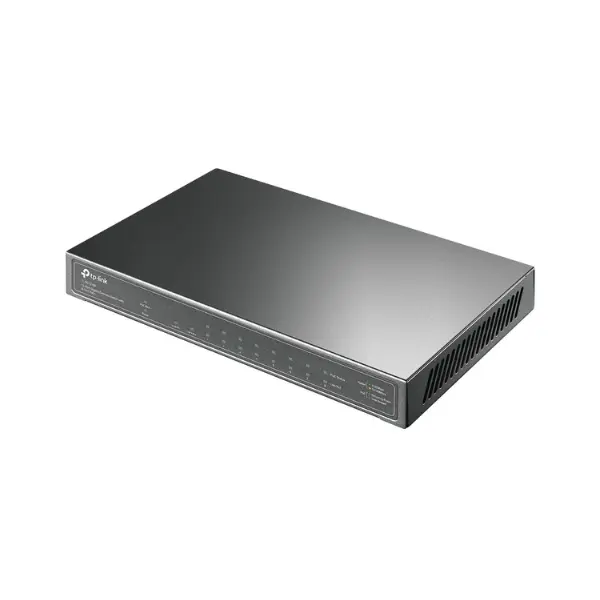

Sturdy, compact metal casing, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.
HARDWARE FEATURES | |
---|---|
Interface | 8 PoE+ 10/100/1000Mbps RJ45 Ports 1 10/100/1000Mbps RJ45 Port 1 Gigabit SFP Slot |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF, SMF |
Fan Quantity | Fanless |
Physical Security Lock | Yes |
Power Supply | External Power Adapter(Output: 53.5VDC / 1.31A) |
Backup Bandwidth | 20 Gbps |
Packet Forwarding Rate | 14.88 Mpps |
PoE+ Ports(RJ45) | Standard: 802.3at/802.3af compliant PoE Ports: Port1- Port 8 PoE Power Budget: 63W |
Mac Address Table | 4K |
Jumbo Frame | 16 KB |
Switching Capacity | 20 Gbps |
Dimensions ( W x D x H ) | 209 × 126 × 26 mm |
Max Power Consumption | 7.11 W (220/50Hz. no PD connected) 78.13 W (220/50Hz. with 63W PD connected) |
Max Heat Dissipation | 24.25 BTU/h (no PD connected) 266.42 BTU/h (with 63W PD connected) |
SOFTWARE FEATURES | |
---|---|
Advanced Features | Compatible With IEEE 802.3af/at Compliant PDs EEE802.3x Flow Control 802.1p/DSCP QoS IGMP Snooping |
Transmission Method | Store-And-Forward |
OTHERS | |
---|---|
Certification | CE, FCC, RoHS |
Package Contents | TL-SG1210P, Power Adapter, Installation Guide |
Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing |
