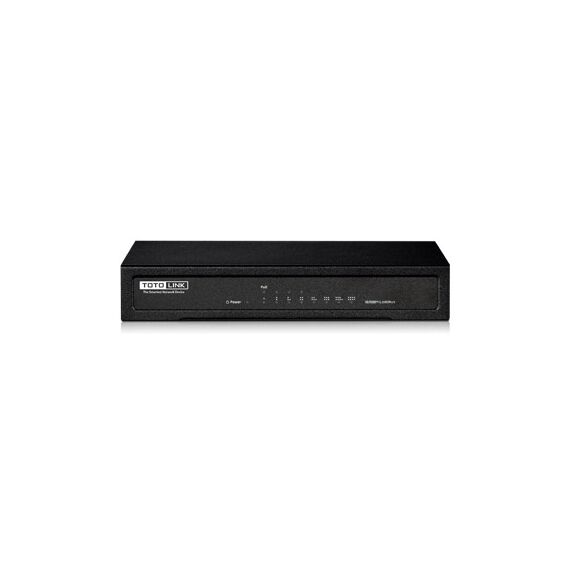

Totolink SW804P PoE Switch, 8-Port Fast Ethernet, 10/100Mbps

Totolink SW804P - Description

PoE Switch 8-Port Fast Ethernet, 10/100Mbps

High-Performance 8-Port PoE Ethernet Switch:

Totolink SW804P is an 8-port 10/100Mbps Ethernet switch designed to meet the networking needs of small businesses and home users requiring Power over Ethernet (PoE) functionality. Featuring four PoE ports compliant with IEEE 802.3af, this switch supports automatic device detection and power delivery via standard Ethernet cables. Each PoE port provides up to 15.4W, making it ideal for powering IP cameras, VoIP phones, and wireless access points without requiring separate power supplies.

Plug-and-Play with Seamless Compatibility:

Installation and setup are simple thanks to the plug-and-play design. The SW804P offers full compatibility with straight-through or crossover cables and can connect effortlessly to servers, hubs, or other switches. The auto-negotiation RJ45 ports ensure optimal data transfer rates for various network devices, supporting both 10BASE-T and 100BASE-TX media types using Cat 3 and Cat 5/5e cables respectively.

Reliable Design with Advanced Features:

Built with a durable metal case, the SW804P supports desktop or wall mounting and is equipped with essential LED indicators to monitor power, PoE status, overload protection, and link activity. With 6KV lightning protection and a 1K MAC address table, it ensures stable and safe performance. The 1.6Gbps backplane bandwidth and store-and-forward transmission method enhance data integrity and network efficiency.

Power Efficient and Environmentally Adaptable:

Operating efficiently with a DC 48V/1.25A power adapter, the switch consumes less than 63W even under full configuration, delivering a total PoE power budget of 58W. The device operates within a wide temperature range (0℃ to 50℃) and humidity (5% to 95% non-condensing), ensuring reliable performance in various environments. The package includes the switch, a power adapter, and a quick installation guide for hassle-free setup.
