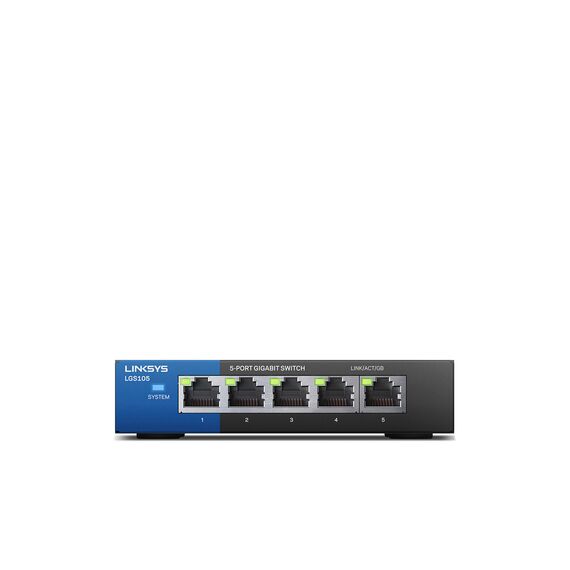

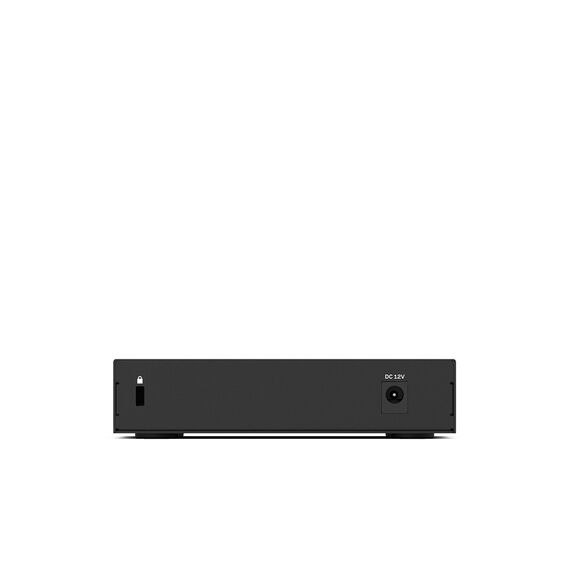

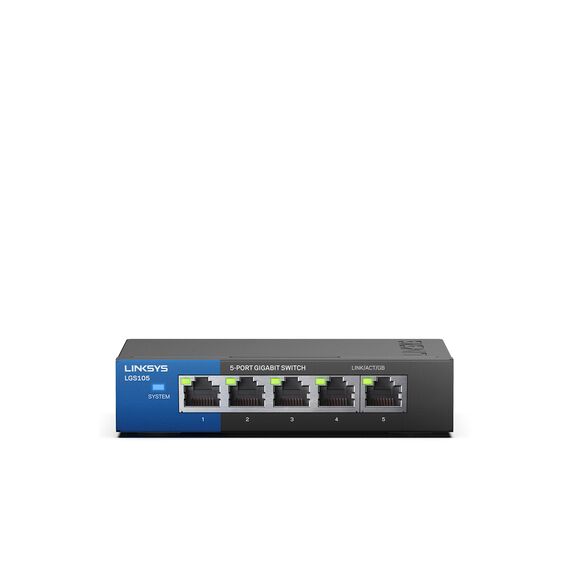

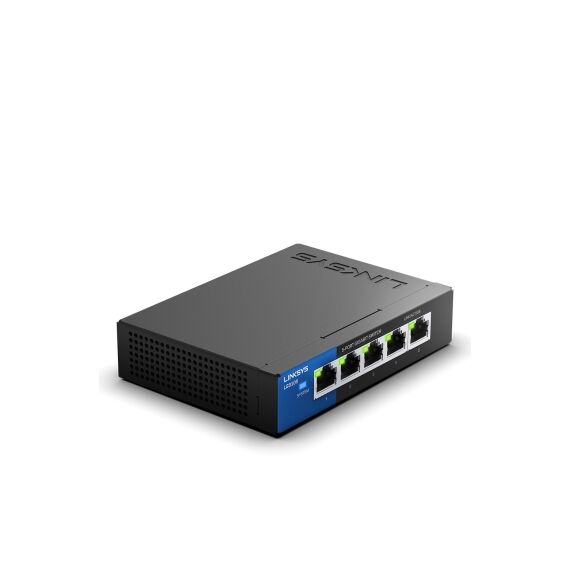

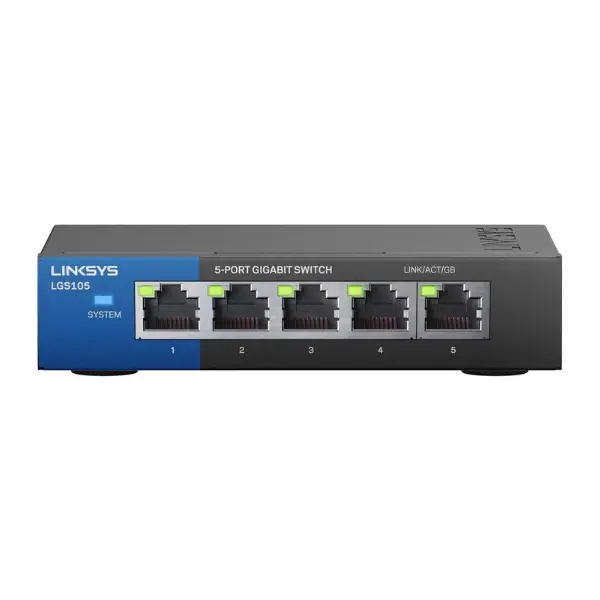

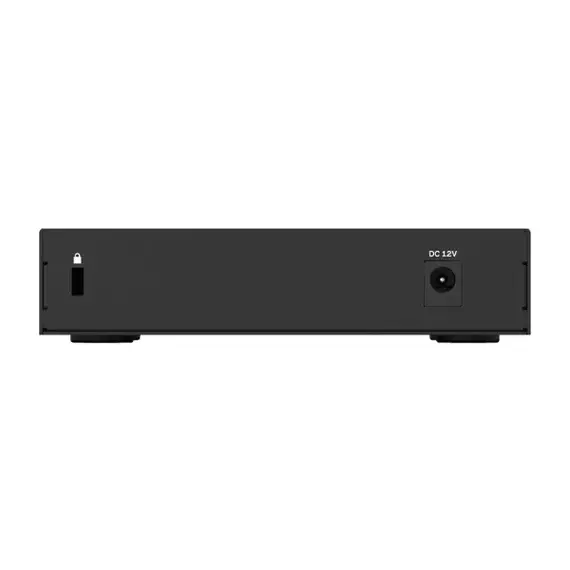

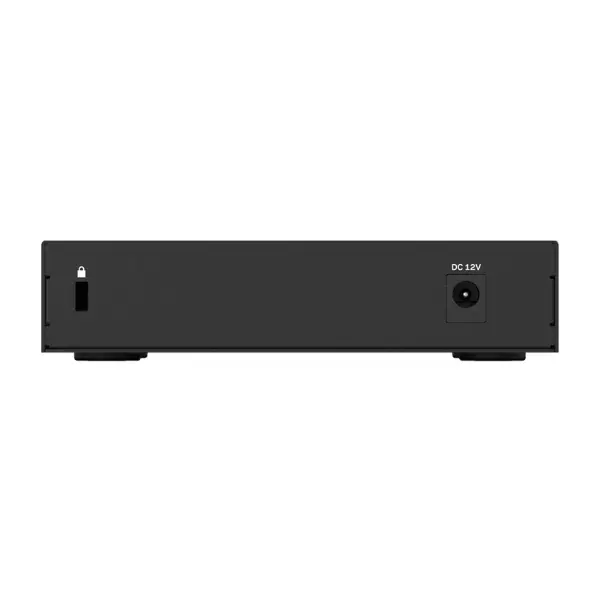

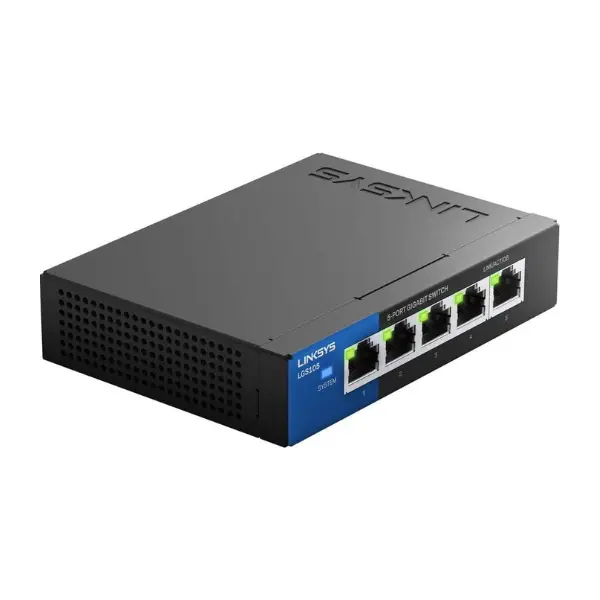

Linksys LGS105 Desktop Unmanaged Switch, 5-Port Gigabit Ethernet

Linksys LGS105 - Description

Desktop Unmanaged Switch, 5-Port Gigabit Ethernet

High-Speed Gigabit Performance for Business Networks:

Linksys LGS105 5-Port Business Desktop Gigabit Switch offers a reliable and high-speed wired networking solution ideal for small offices, home businesses, and workstations. With five auto-sensing Gigabit Ethernet ports, this unmanaged switch delivers speeds up to 1000 Mbps per port. This enables fast file transfers, smooth media streaming, and reduced network latency when accessing servers, printers, or shared drives. Its non-blocking 10 Gbps switching capacity ensures full line-rate forwarding for maximum performance across all ports.

Plug-and-Play Installation for Instant Expansion:

Designed for simplicity, the LGS105 requires no software installation or configuration. Its plug-and-play setup allows users to quickly expand their network by connecting additional devices, including PCs, printers, NAS units, or VoIP systems. Auto-sensing ports automatically adjust to the appropriate speed for each connected device, making it a hassle-free addition to any Ethernet-enabled environment.

Energy-Efficient and Eco-Friendly Operation:

The Linksys LGS105 switch features several built-in power-saving technologies. Compliant with the Energy Efficient Ethernet (EEE) 802.3az standard, it automatically reduces power consumption during low data activity periods. It also supports auto power-down to deactivate unused ports and smart power adjustment for short cable lengths, minimizing electricity usage without compromising performance. The device consumes as little as 0.42W when idle and up to 2.22W under load.

Durable Design with Silent Operation:

Encased in a compact, metal chassis, the LGS105 is built for long-term use. Its fanless design ensures completely silent operation, making it perfect for quiet office environments or desktop use. With dimensions of 120 x 88 x 26 mm and weighing only 0.252 kg, it’s small enough to fit on a desk or be wall-mounted for flexible installation.

Reliable Connectivity with Business-Grade Standards:

The switch complies with major IEEE networking standards including 802.3, 802.3u, 802.3x, 802.3ab, and 802.3az. It supports a MAC address table size of up to 2,000 entries and offers full duplex and flow control capabilities. LED indicators on each port provide real-time status for link and activity. Designed for stability, it operates within a temperature range of 0–50°C and is backed by a 1-year manufacturer’s warranty.
