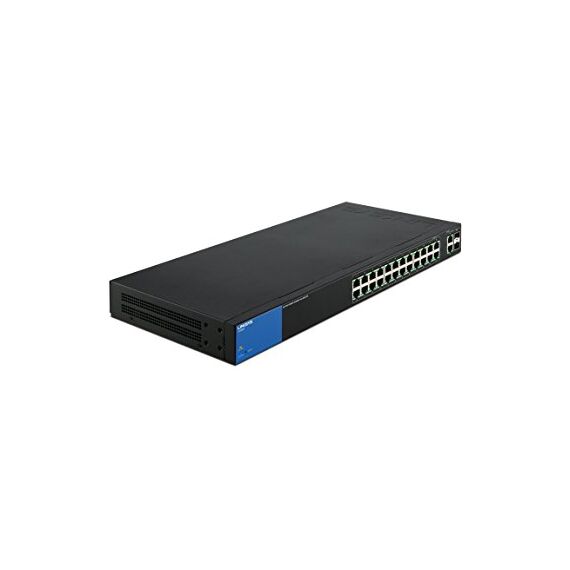

Linksys Switch 24 Port Gigabit PoE+ (192W) Smart Managed + 2x Gigabit SFP/RJ45 Combo Ports / LGS326P

Write a review
km5/3/2018MAE
7,139 EGP
linksys
Out of stock
Reward points: 3570 points
Get a quote
Call Us
Chat us on Whatsapp
Payment Methods

Designed for business-class management, security, speed, and quality of service.

  • Integrated Power Over Ethernet Plus
  • Proven Performance and Reliability
  • Easy Configuration and Management
  • Advanced Network Security
  • IPv6 Support
  • Enhanced QoS
  • Enhanced Security
  • Meets EEE (Energy Efficient Ethernet) 802.3az standard
Brand:
linksys

Linksys Switch 24 Port Gigabit PoE+ (192W) Smart Managed + 2x Gigabit SFP/RJ45 Combo Ports / LGS326P

Designed for business-class management, security, speed, and quality of service.

  • Integrated Power Over Ethernet Plus
  • Proven Performance and Reliability
  • Easy Configuration and Management
  • Advanced Network Security
  • IPv6 Support
  • Enhanced QoS
  • Enhanced Security
  • Meets EEE (Energy Efficient Ethernet) 802.3az standard

  • QUALITY OF SERVICE (QOS) TRAFFIC PRIORITIZATION

    Numerous QoS features prioritize traffic, ideal for real-time voice and video applications & high bandwidth graphic or video uploads and downloads.

  • INTEGRATED POWER OVER ETHERNET PLUS (POE+)

    Makes installation simple and inexpensive by eliminating the need for additional power cables and nearby power outlets. Backwards compatible with 802.3af (PoE) standard.

  • NETWORK EXPANSION FEATURES

    Build a mesh of switches easily with features like Spanning Tree Protocol (STP) and Storm Control. They help control planned or inadvertent cable loops so you can expand your network with confidence.

  • ADVANCED NETWORK SECURITY

    Ensure data passes to authorized clients only with Port authentication and MAC-based port security. Advanced DHCP snooping and IP-MAC binding functions assure network integrity and help prevent attacks.
  • Model Name:
    LGS326P
  • Network Standards:
    • IEEE 802.3
    • IEEE 802.3u
    • IEEE 802.3ab
    • IEEE 802.3z
    • IEEE 802.3x
    • IEEE 802.3ad
    • IEEE 802.3az
    • IEEE 802.3af
    • IEEE 802.3at
    • IEEE 802.1d
    • IEEE 802.1q/p
    • IEEE 802.1X
  • Number of Ports with PoE+ Support:
    24
  • Memory:
    128 MB
  • LEDs:
    System (blue), Link/Act/PoE (green/green)
  • System Power Consumption without PoE+:
    • 110V:28.58W,
    • 220V:26.67W
  • Forwarding Rate:
    38.69 Mpps
  • Switching Capacity:
    52 Gbps
  • MAC Address Table Size:
    8K
  • Jumbo Frame (FE, GE):
    9K
  • Fans:
    Two, 8,200 rpm
  • Dimensions (LxWxH):
    440 x 200 x 44 mm (17.3 x 7.9 x 1.7 in.)
  • Weight:
    3.096 kg (6.81 Ibs.)
  • Power Dedicated to PoE+:
    192 W
  • Power Input:
    • 100–240V
    • 50-60 Hz
    • (3.5A max)
  • Operating Temperature:
    0 to 50°C (32 to 122°F)
  • Storage Temperature:
    -40 to 70°C (-40 to 158°F)
  • Storage Humidity:
    10 to 90% RH (non-condensing)
  • Spanning Tree:
    IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree
  • Link Aggregation:
    IEEE 802.3ad LACP, up to 4 groups with up to 8 ports per group
  • VLAN:
    Port-based and 802.1q tag-based VLANs, Management VLAN, Guest VLAN support, Dynamic VLAN assignment via Radius server with 802.1x client authentication
  • Number of VLANs Supported:
    128 active VLANs (4,096 range)
  • Auto Voice VLAN:
    VLAN Voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels
  • IGMP Snooping:
    IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors; supports 256 multicast groups
  • HOL Blocking Prevention:
    Head of line (HOL) blocking prevention
  • Port Mirroring:
    Traffic on multiple ports can be mirrored to another port for analysis with a network analyzer
  • Security Features:
    • 802.1x Radius authentication
    • DHCP snooping
    • IP-MAC binding
    • Port security supports limited dynamic lock and locked MAC address
    • Management access control
  • Storm Control:
    Broadcast, flooding, and multicast
  • RMON:
    Embedded remote monitoring (RMON) software agent support for enhanced traffic management, monitoring, and analysis
  • Management Interface:
    • HTTP
    • HTTPS
  • Other Management:
    Telnet (Menu CLI), DHCP client, system log, configuration unload and backup via HTTP or TFTP, PING, dual images, SNTP
  • SNMP:
    • Version 1
    • Version 2c
  • Firmware Upgrade:
    • Web Browser (HTTP/HTTPS)
    • TFTP
  • QoS - Class of Service:
    Port-based, 802.1p priority-based, IPv4/v6 IP DSCP-based
  • Combo Ports (RJ45 + SFP):
    2 combo on ports g25, g26
  • Copper FE/GE Ports (RJ45):
    g01–g12, g13-g24
  • Green Power Mode:
    EEE+, Short Reach + Energy Detect
  • QoS - Priority Levels:
    4 hardware queues
  • QoS - Scheduling:
    Priority queuing and weighted round robin (WRR)
  • Total System Ports:
    26GE
