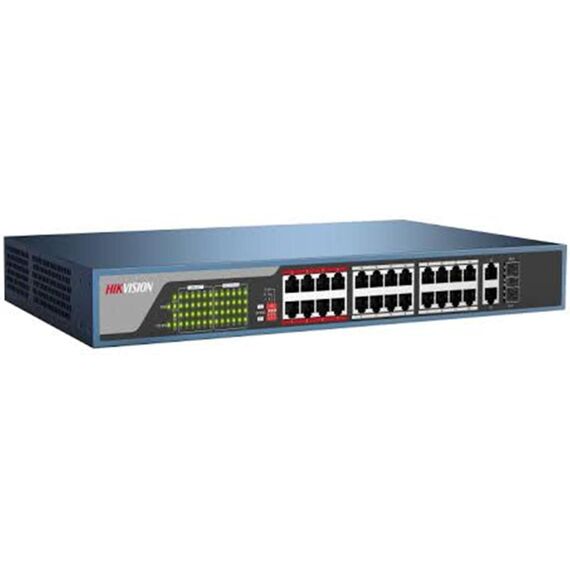

Hikvision DS-3E0326P-E(B) Unmanaged PoE Switch, 26 Port Fast Ethernet with 2 Port Gigabit combo
Hikvision DS-3E0326P-E(B) - Description
Unmanaged PoE Switch, 26 Port Fast Ethernet with 2 Port Gigabit combo
High-Performance PoE Switch for Surveillance and Networking:
Hikvision DS-3E0326P-E(B) is a robust 26-port unmanaged PoE switch designed to meet the demands of IP surveillance and other high-performance network applications. With 24 Fast Ethernet PoE ports and 2 Gigabit combo uplink ports, this switch offers an ideal balance of speed, scalability, and reliability. Supporting both IEEE 802.3af and 802.3at standards, each PoE port can deliver up to 30W of power, with a total PoE power budget of 370W, making it suitable for powering IP cameras, access points, and VoIP phones without additional power sources.
Intelligent PoE Management and Long-Range Transmission:
Equipped with Intelligent PoE Management, the switch automatically regulates power distribution when demand exceeds limits, ensuring system stability and extended lifespan. Its Long-Range PoE Transmission capability allows for distances up to 300 meters on ports 17 to 24 in Extend mode, ideal for large-area surveillance deployments. The 8-core power supply design ensures reduced power loss, delivering higher efficiency across longer distances and complex environments.
Reliable Operation in Harsh Environments:
Built with durability in mind, the Hikvision DS-3E0326P-E(B) features a metal shell for robust physical protection and 6KV surge protection to safeguard against lightning strikes and electrical surges. It operates reliably within a wide temperature range of -10°C to 55°C and up to 95% humidity, making it well-suited for both indoor and semi-outdoor installations. With a compact 1U rack-mountable design (440 mm × 44 mm × 220.8 mm), it's easy to integrate into standard network cabinets.
Optimized for Video Transmission and Traffic Prioritization:
This switch is engineered specifically for video transmission, with VIP ports (1–8) providing high-priority data processing to ensure uninterrupted video streaming during periods of network congestion. The store-and-forward switching mode and 8.8 Gbps switching capacity guarantee efficient packet forwarding, while the MAC address table of 4K entries and 2.75 Mbits internal cache ensure smooth and responsive network performance even under load.
Comprehensive Standards and Certifications:
Fully compliant with IEEE 802.3, 802.3u, and 802.3x standards, the DS-3E0326P-E(B) is certified for EMC, safety, and environmental regulations, including FCC, CE, UL, and RoHS. Its compliance ensures safe deployment across global markets while aligning with eco-friendly practices such as WEEE and REACH. This makes it a trusted and future-proof choice for integrators, installers, and businesses seeking scalable and efficient PoE networking solutions.
