Hikvision DS-3E0105P-E/M(B) Unmanaged PoE Switch, 5 Port Fast Ethernet
Hikvision DS-3E0105P-E/M(B) - Description
Unmanaged PoE Switch, 5 Port Fast Ethernet
Reliable and Intelligent Power over Ethernet (PoE) Management:

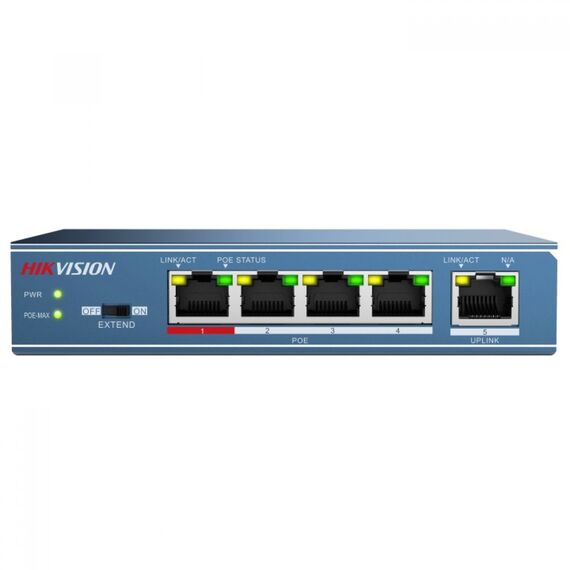

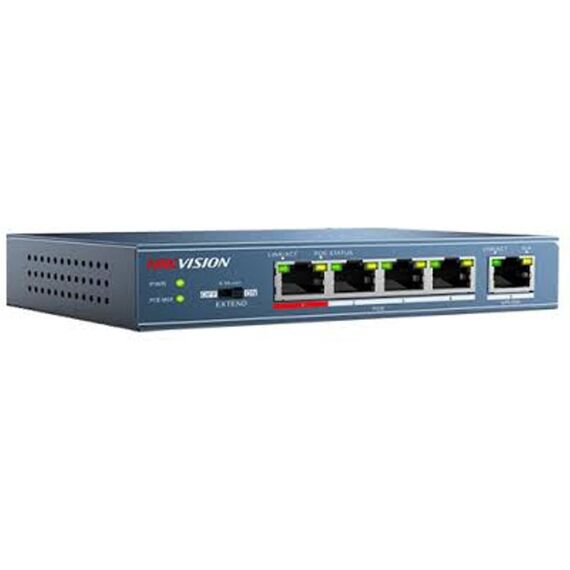

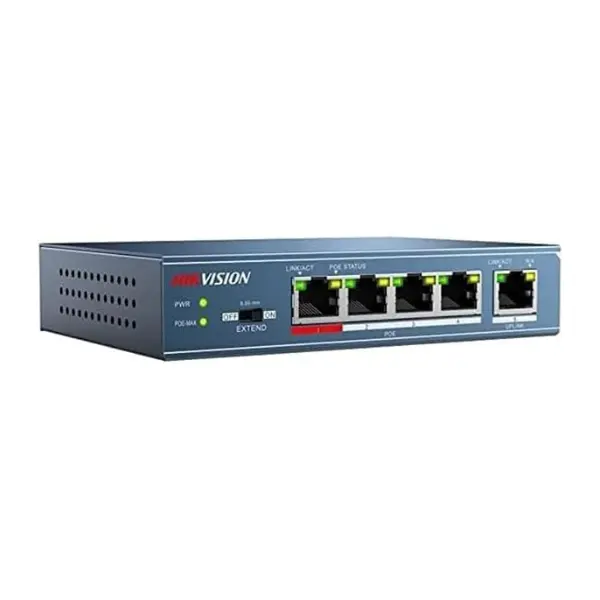

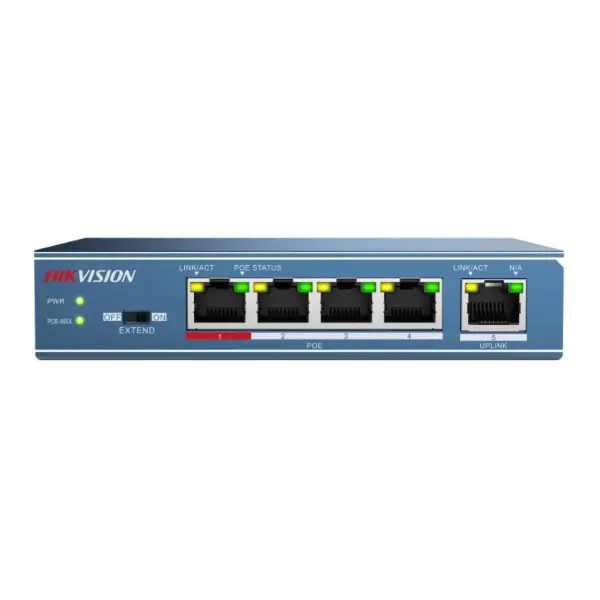

Hikvision DS-3E0105P-E/M(B) unmanaged PoE switch features 4 Fast Ethernet PoE ports and 1 uplink RJ45 port. Designed for simplicity and reliability, this switch offers intelligent PoE management, ensuring efficient power distribution. When the total power consumption exceeds the defined limit, the switch intelligently prioritizes ports, extending its lifetime and protecting connected devices. Supporting both IEEE 802.3af and 802.3at standards, each port can deliver up to 30W of power with a total PoE budget of 35W, making it ideal for powering IP cameras and other PoE-compatible devices.
Extended PoE Transmission Range Up to 300 Meters:
A standout feature of the DS-3E0105P-E/M(B) is its long-range PoE transmission capability. Ports 1 to 4 can support transmission distances up to 300 meters, well beyond the standard 100-meter Ethernet limit. This makes the switch particularly useful for video surveillance applications where cameras are located far from the network core. Long-range performance may vary based on the camera model and cable quality, but the switch is optimized to maintain stable and effective data and power delivery over extended distances.
Robust Surge Protection for Harsh Environments:
To ensure stable operation in industrial or outdoor environments, the switch includes 6KV built-in surge protection. This level of protection guards against lightning and power surges, significantly enhancing reliability in harsh weather or unstable electrical conditions. Its metal shell design adds an extra layer of durability and helps with heat dissipation, further increasing longevity.
Optimized for High-Priority Video Data Transmission:
This PoE switch is specifically designed for IP video surveillance. A designated VIP port ensures that critical data packets receive priority during times of high network traffic. This minimizes video lag, dropped frames, or delays in data transmission, ensuring uninterrupted surveillance streams when multiple devices are connected.
Compact, Versatile Design and Easy Installation:
Weighing just 0.2 kg with compact dimensions of 105 × 27.6 × 83.1 mm, this switch supports desktop and wall mounting options. Operating efficiently between 0°C to 40°C and in humidity levels from 5% to 95%, it's ideal for various deployment environments. Its internal cache of 768 Kbits, 2K MAC address table, and 1 Gbps switching capacity ensure stable and efficient network performance for small to medium installations.
