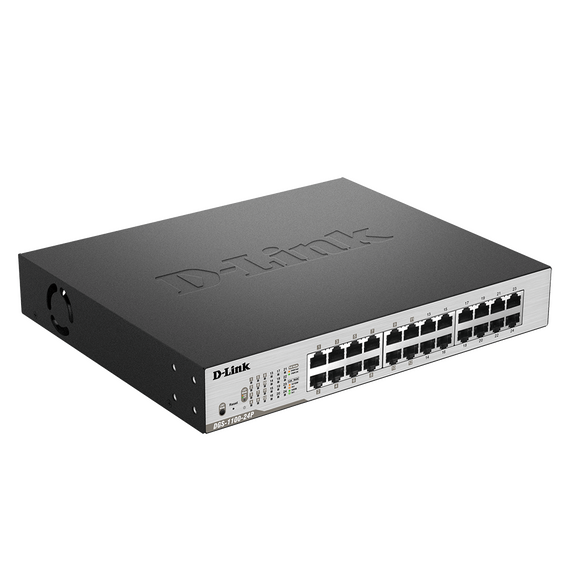

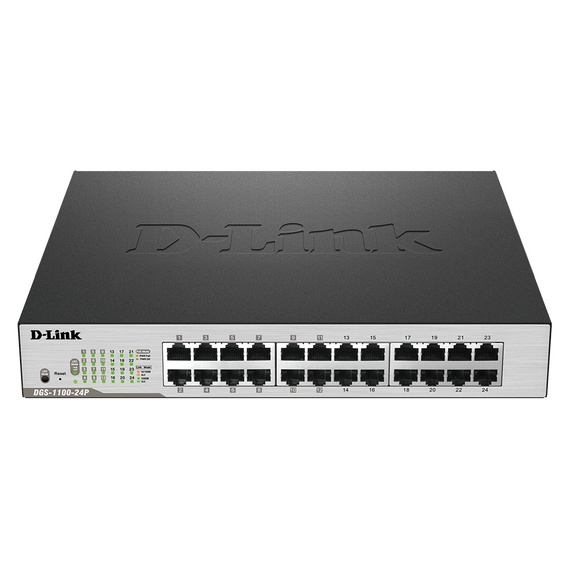

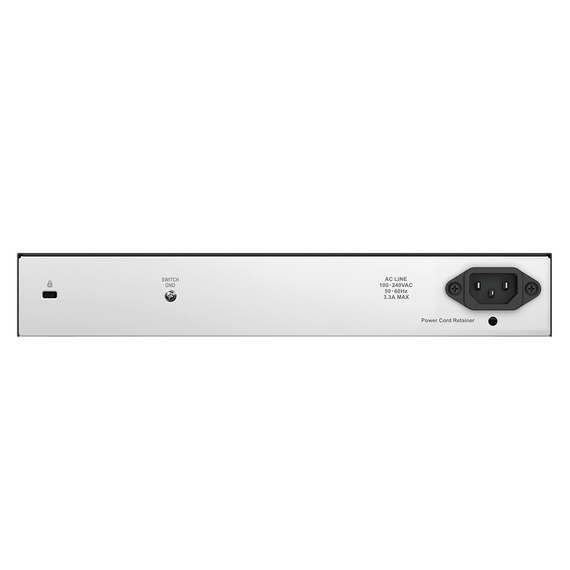

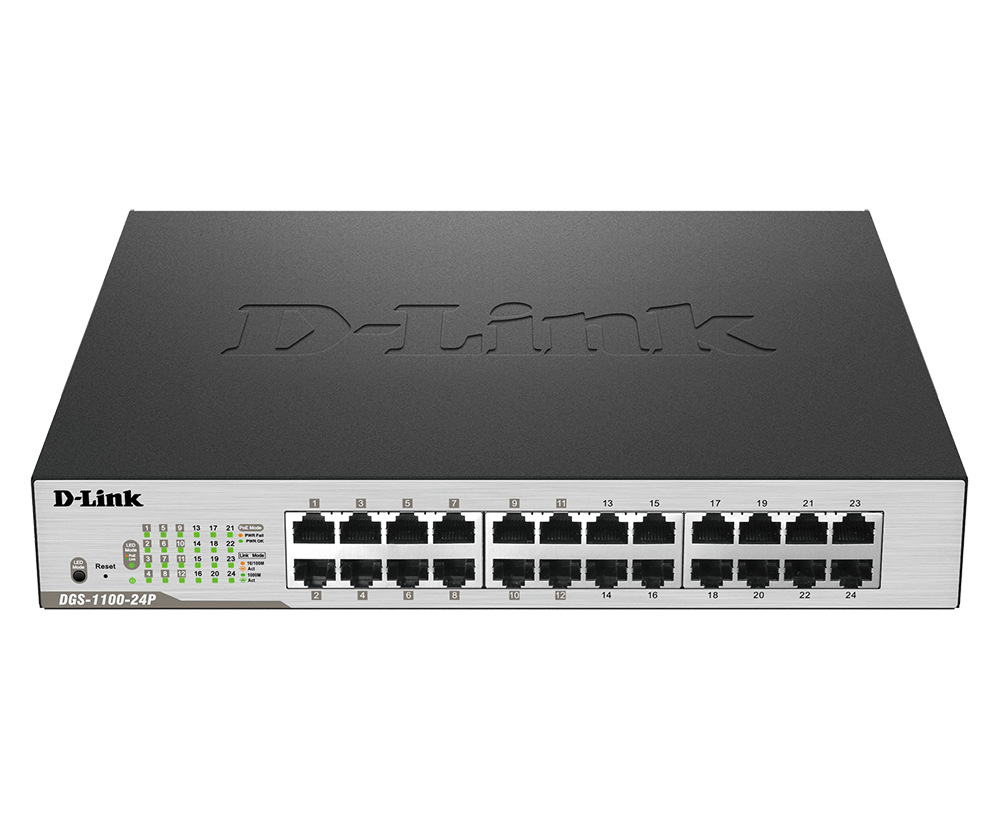

D-Link DGS-1100-24P

D-Link DGS-1100-24P 24-Port PoE Gigabit Smart Managed Switch

12 10/100/1000 Base-T Po
12 ports 10/100/1000Base-T
100W PoE power budget
It supports IEEE 802.3at PoE
D-Link Green innovative energy saving features
Complete web interface for general switch management

Web UI: Convenient web interface to access management functions.
VLANs: Divide your network into VLANs.
Surveillance Mode Interface: Get a snapshot of your security topology.

Advanced Security Features:

The DGS-1100 series web user interface provides administrators with an easy way to manage Layer 2 features such as VLANs, Spanning Tree Protocol (STP) and (static) link aggregation. With powerful security features, including IGMP snooping, static MAC addressing and storm control, these managed smart switches provide a one-stop solution for deployments that require simple feature configuration without added complexity.

Simplify Network Management:

The free D-Link Network Assistant displays all connected devices and simplifies initial setup. The free D-View 7 Network Management System comes with a 25-node license, two monitors, and a full set of management tools.

Full PoE Support:

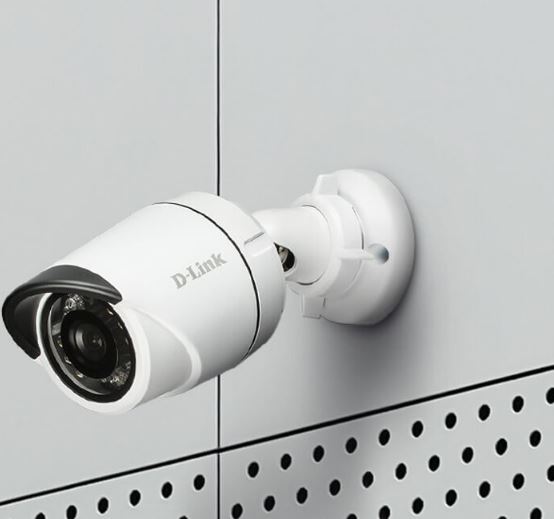

The DGS-1100 series support select models with Ethernet over copper access ports. Power over Ethernet greatly simplifies the installation of PoE-enabled devices such as VoIP phones and IP cameras at remote locations without going directly into a power outlet.

Easy Troubleshooting:

The DGS-1100 Series provides network administrators with loop detection and cable diagnostics to quickly and easily solve network problems.

Loopback Detection detects loops created on a specific port and automatically closes the affected port. Cable Diagnostics is designed to help network administrators quickly check the quality of copper cables, identify cable types, and identify cable defects.

Green Technology:

D-Link's green technology enables the DGS-1100 Smart Managed Switch to save energy without compromising performance. Most models in this series feature a fanless design for quiet and energy-efficient operation. All are IEEE 802.3az compliant and feature time-based link status detection and PoE (except DGS-1100-05PD and DGS-1100-08P).
