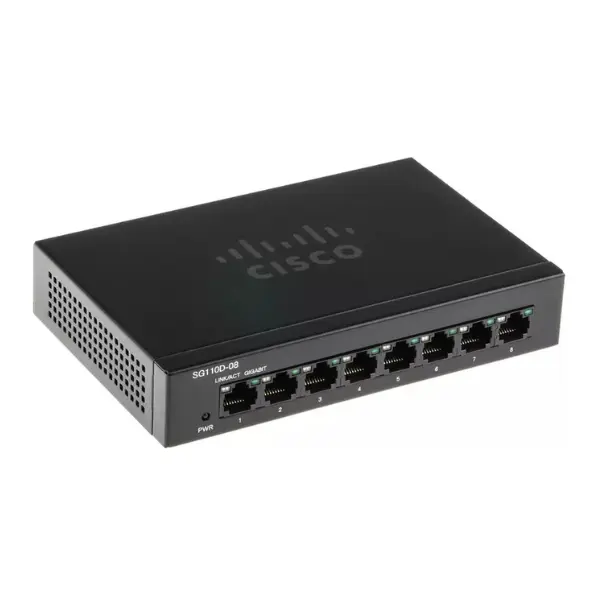

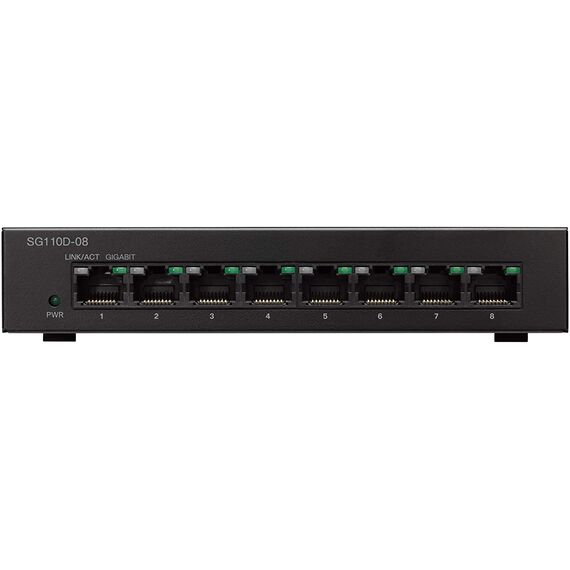

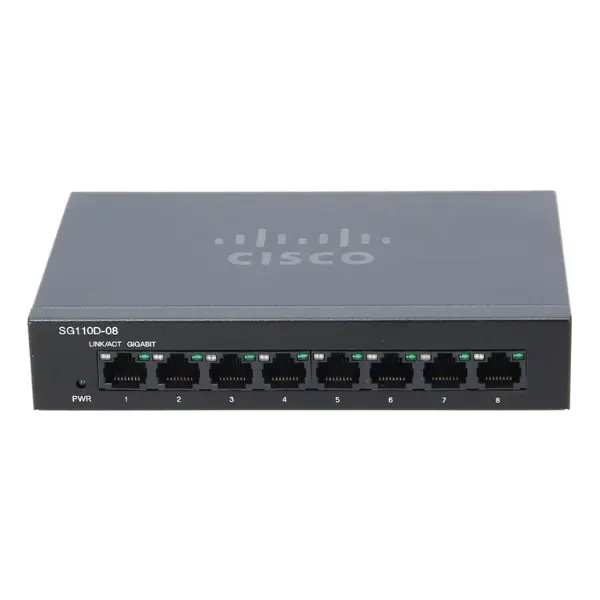

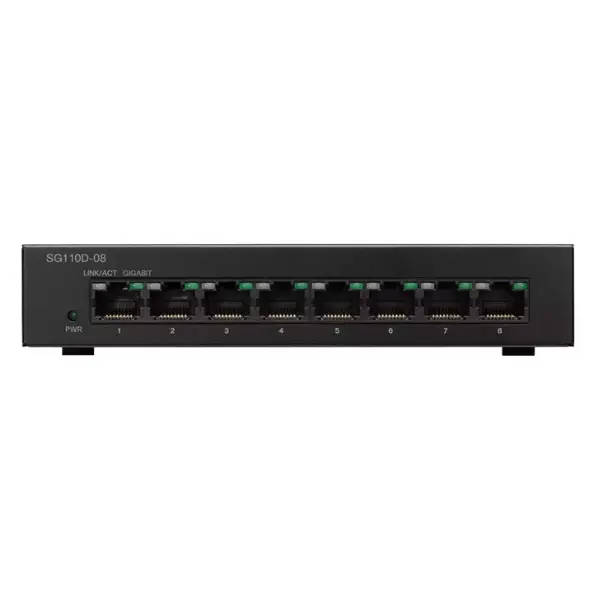

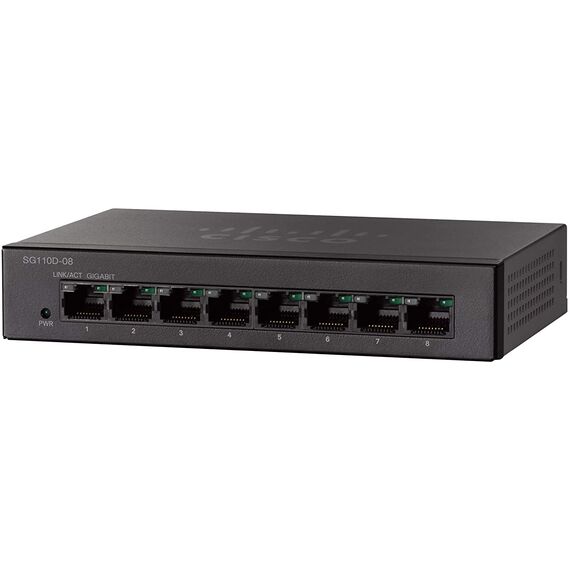

Cisco SG110D-08 Switch 8 Port Gigabit Desktop Switch
Please sign in so that we can notify you about a reply
Brand:
Cisco
Cisco, SG110D-08, Switch, 8 Port, Gigabit, Desktop, Switch,
| General | |
| Device type | Switch - 8 ports - unmanaged |
| Enclosure type | Desktop |
| Ports | 8 x 10/100/1000 |
| Power over Ethernet (PoE) | N/A |
| Performance | Switching capacity: 16 Gbps ¦ Forwarding performance (64-byte packet size) : 11.9 Mpps |
| MAC address table size | 4000 entries |
| Jumbo frame support | Yes |
| Features | Flow control, Layer 2 switching, auto-negotiation, auto-uplink (auto MDI/MDI-X), Weighted Round Robin (WRR) queuing, quality of service (QoS), cable diagnostics, loop detection, Energy Efficient Ethernet |
| Compliant standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3az, IEEE 802.1p, IEEE 802.3x |
| Status indicators | Power, link/activity, cable diagnostics, loop detection |
| Expansion and Connectivity | |
| Interfaces | 8 x 10Base-T/100Base-TX/1000Base-T - RJ-45 |
| Power | |
| Power device | Power adapter - external |
| Voltage required | DC 12 V |
| Electric current required | 1.00 Amps |
| Miscellaneous | |
| Width | 5.1 in |
| Depth | 5.1 in |
| Height | 1.1 in |
| Weight | 13.4 oz |
| Fanless | Yes |
| Compliant standards | CSA, UL, UL 60950, CSA C22.2, FCC CFR47 Part 15, FCC Part 15 A |
| Localization | North America |
| Software/System Requirements | |
| OS required | Linux, Apple MacOS X, Microsoft Windows |
| Manufacturer Warranty | |
| Service and support | Limited lifetime warranty |
| Service and support details | Limited warranty - replacement - lifetime ¦ Limited warranty - power supply and fans - 1 year ¦ Technical support - phone consulting - 1 year |
| Environmental Parameters | |
| Min operating temperature | 32 °F |
| Max operating temperature | 104 °F |
| Humidity range operating | 10 - 90% (non-condensing) |
| Min storage temperature | -4 °F |
| Max storage temperature | 158 °F |
| Humidity range storage | 10 - 90% (non-condensing) |
