D-Link NCB-6AUGRYR-305 Cat.6a U/UTP Cable, PVC Sheath, 305 M Roll, Grey

D-Link NCB-6AUGRYR-305 - Grey - Description

Cat.6a U/UTP Cable, PVC Sheath, 305 M Roll

High-Speed Data Transmission for Modern Networks:

D-Link NCB-6AUGRYR-305 Cat.6a U/UTP Cable is engineered to deliver superior network performance, making it ideal for high-speed data transfer, and digital and analog audio/video (RGB) signal transmission across Local Area Networks (LANs). With support for 10 Gigabit Ethernet (10GBase-T) and operation at a bandwidth of 500 MHz, this cable ensures consistent and efficient communication, even in high-traffic environments. Designed to meet and exceed ANSI/TIA-568-C.2 standards, it guarantees a reliable permanent link of up to 90 meters.

Durable Construction for Long-Term Performance:

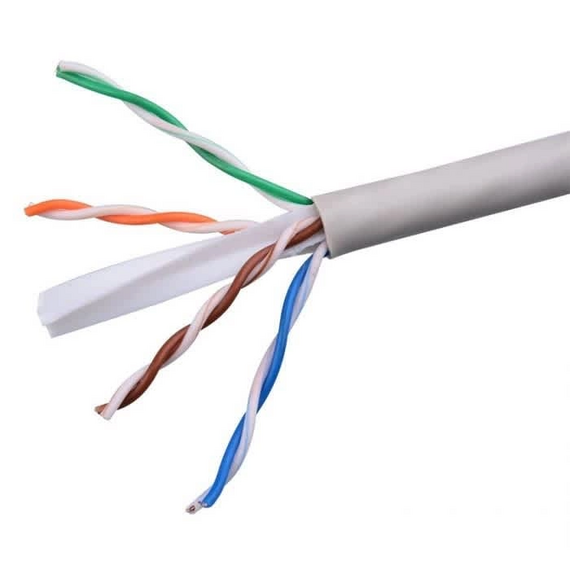

This Category 6a Unshielded Twisted Pair (U/UTP) cable features 23 AWG solid bare copper conductors, ensuring excellent conductivity and minimal signal loss. Each pair is insulated with High-Density Polyethylene (HDPE) and twisted together to minimize crosstalk. A central polyolefin separator enhances internal structure and performance. The outer sheath is made from FR PVC with a corrugated design, offering fire resistance and added flexibility. The cable’s nominal diameter is 6.5 ± 0.3 mm, providing robust protection against mechanical stress.

Reliable Electrical and Mechanical Properties:

Optimized for professional networking, this cable boasts a characteristic impedance of 100 ± 15Ω, a mutual capacitance below 5.6nF/100m, and a delay skew under 45ns. Its nominal velocity of propagation is 69%, ensuring data arrives on time without delay. With a pulling force of 11.5 kg and a bending radius of less than 4 times the cable diameter at –20°C, the cable is both rugged and installer-friendly. It is suitable for a temperature range of -20°C to +70°C (operation) and 0°C to +50°C (installation).

Ideal for Enterprise and Home Networks:

Packaged in a 305-meter pull-box, the D-Link NCB-6AUGRYR-305 is convenient for large-scale installations in data centers, offices, and smart home networks. The grey color ensures easy identification during cabling projects. Whether you're upgrading an existing infrastructure or building a new high-performance network, this cable is a future-proof solution that meets the demands of modern digital environments.
