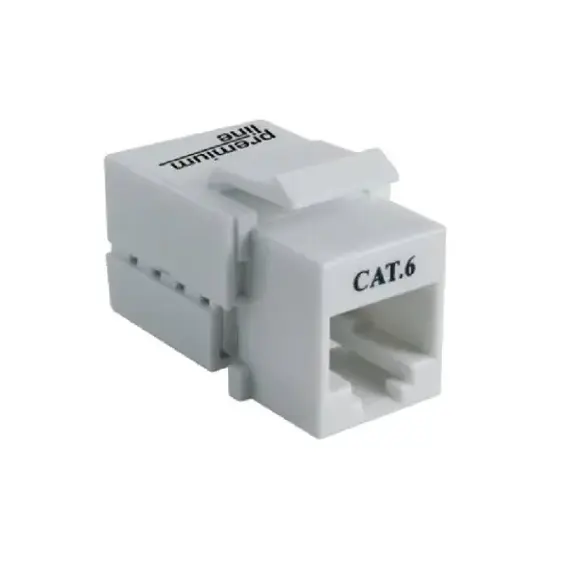

Premium-Line 106111010 Cat 6 90° Unshielded Keystone Jack - White
Premium-Line 106111010 - White - Description
Cat 6 90° Unshielded Keystone Jack
High-Quality Construction for Optimal Performance:
Premium-Line 106111010 Cat 6 90° Unshielded Keystone Jack is designed for high-performance networking solutions. Manufactured with durable materials like PC housing rated UL94 V-0 for flame resistance and phosphor bronze contacts with 50μ inch gold plating, this keystone jack ensures longevity and stable connections. The IDC contacts, plated with 100μ inch nickel over phosphor bronze, provide reliable termination with up to 250 re-terminations, making it an efficient choice for various installations.
Compliant with Industry Standards:
This keystone jack complies with TIA/EIA-568.2-D, ISO/IEC 11801-1, and EN50173-1 Cat 6 specifications, ensuring compatibility and reliable performance in data networking systems. It is ETL-verified and RoHS-compliant, meeting global standards for safety and environmental responsibility. These certifications guarantee that the jack performs well under challenging conditions and adheres to strict quality benchmarks.
Versatile Wiring and Easy Installation:
The dual IDC design of the Premium-Line Cat 6 keystone jack accommodates 22-26 AWG solid cables, supporting both T568A and T568B wiring standards. Its 90° angle design makes it easy to terminate using either 110 or Krone tools. This user-friendly feature reduces installation time and ensures secure connections in both patch panels and wall plates.
Enhanced Electrical Performance:
Engineered for superior electrical performance, the jack boasts a dielectric strength of 1000V RMS for one minute, a current rating of 1.5A max, and low contact resistance of just 2mΩ per contact. It provides an insulation resistance of 10MΩ minimum, ensuring a stable and interference-free connection. These characteristics make it suitable for high-speed and reliable data transmission in Ethernet networks.
Wide Range of Applications:
The Premium-Line Cat 6 keystone jack supports multiple Ethernet standards, including 1000BASE-TX Gigabit Ethernet, 1000BASE-T Gigabit Ethernet, 100BASE-TX Fast Ethernet, and 10BASE-T Ethernet. It is also ideal for voice, video, and other applications, making it a versatile solution for both residential and commercial networking needs.
Durability and Environmental Resistance:
Designed for long-term use, the jack operates in a temperature range of -10°C to 60°C with a humidity tolerance of 10% to 90% (non-condensing). Its robust design ensures consistent performance even in demanding environmental conditions. With a minimum of 750 insertions for the jack and 250 re-terminations for the IDC contacts, this product delivers durability and reliability for years to come.
