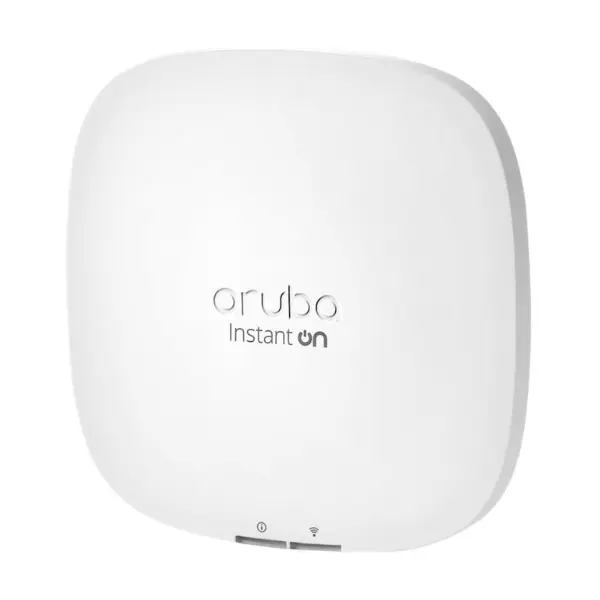

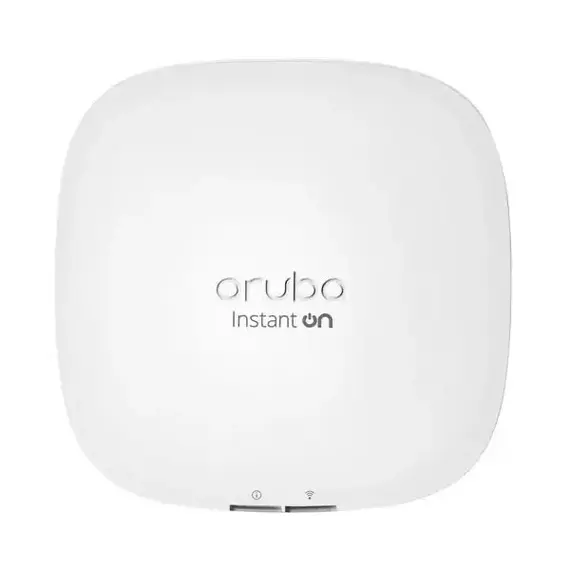

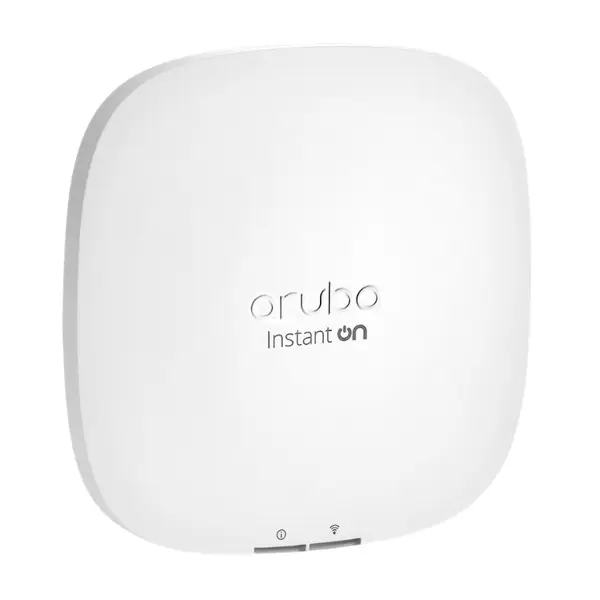

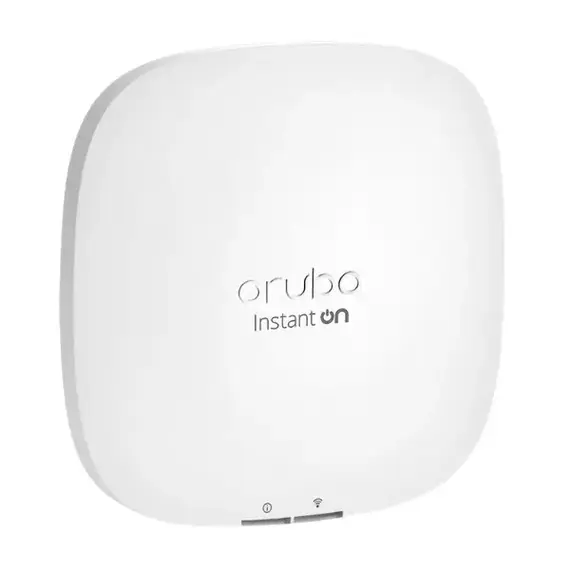

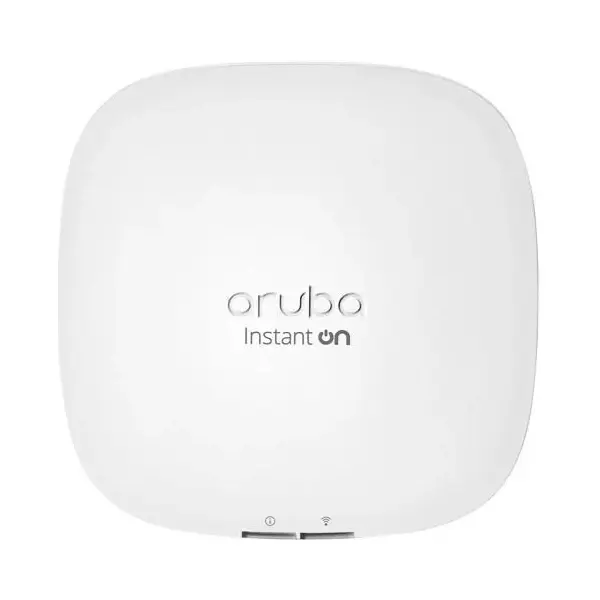

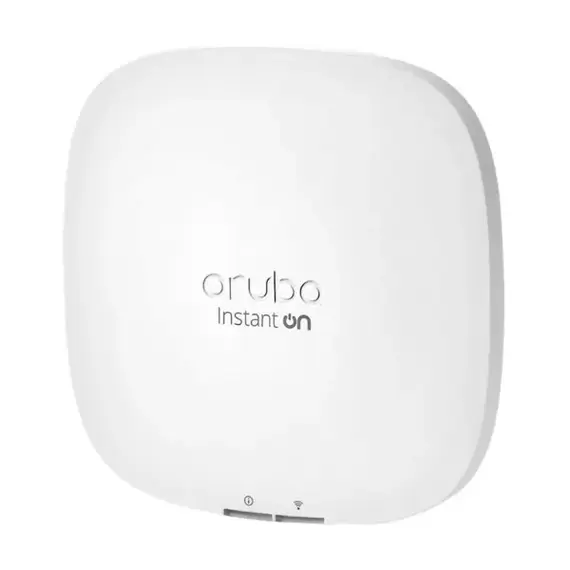

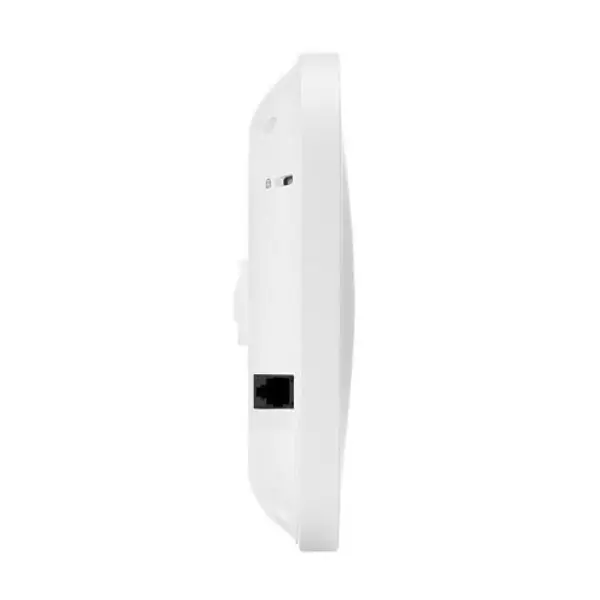

Aruba R4W01A Indoor Wireless Access Point, Wi-Fi 6

Aruba R4W01A - Description

Indoor Wireless Access Point, Wi-Fi 6

Powerful Wi-Fi 6 Connectivity for High-Density Environments:

Aruba R4W01A, also known as the HPE Networking Instant On AP22, is a high-efficiency indoor Wireless Access Point designed to meet the needs of small business environments. Supporting the latest Wi-Fi 6 (802.11ax) standard, this access point delivers exceptional performance with features like orthogonal frequency-division multiple access (OFDMA), bi-directional MU-MIMO, and Target Wake Time (TWT). With the ability to support up to 75 concurrent clients and a maximum data rate of 1.2 Gbps, the AP22 is ideal for environments with increasing demands from mobile, IoT, and cloud applications.

Easy Deployment and Flexible Management:

The AP22 offers a simple, user-friendly setup through a web-based GUI and mobile app, making deployment fast and hassle-free. All management tools and features are included at no additional cost—eliminating the need for external controllers or complex IT infrastructure. Whether you’re adding Wi-Fi to a startup office, a small retail shop, or a café, the intuitive interface ensures that your network is operational within minutes.

Cost-Effective Wireless Mesh and Wide Coverage:

One of the standout features of the Aruba R4W01A is its built-in wireless mesh capabilities. This allows the AP to extend Wi-Fi coverage without the need for additional cabling, helping reduce installation costs and expand connectivity to hard-to-wire areas. Whether in multi-room offices or large open spaces, the mesh support helps eliminate dead zones and maintain reliable performance throughout the environment.

Advanced Security and Traffic Control:

Security is built-in with support for WPA2/WPA3 protocols and Enhanced Open, providing robust protection for both employee and guest networks. The AP22 also acts as a router, gateway, and firewall, giving administrators tools to block unwanted applications and manage bandwidth—all without external gateways. With support for up to eight SSIDs, you can segment your network for different users and departments to keep data safe.

Customizable Guest Experience and Analytics Integration:

Small businesses can easily create a professional guest access portal using the included landing page customization tools. The AP22 supports integration with third-party captive portal providers like Skyfii, Purple, and Wavespot, helping you engage visitors and gather customer insights. This makes it an excellent solution for hospitality businesses, retail stores, and service venues that value customer interaction and branding.

Compact, Energy-Efficient Design with Quality Assurance:

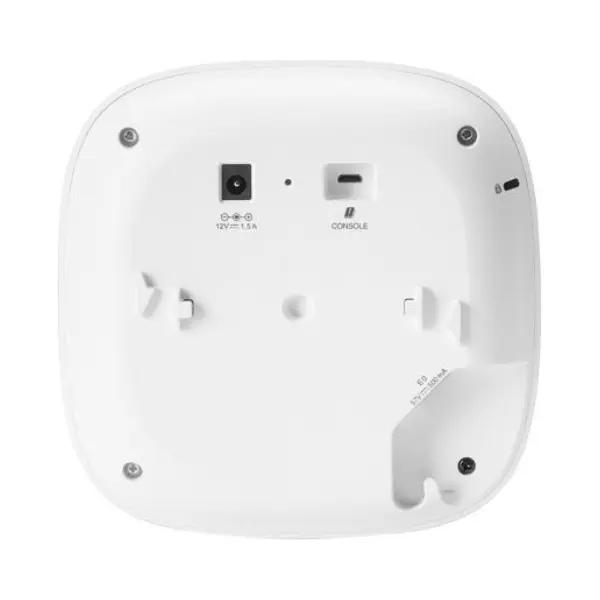

The Aruba R4W01A features a sleek, compact design (160 x 160 x 37 mm, 500g) with a ceiling/wall mount clip included. It supports PoE (802.3af) and DC power input, consuming a maximum of just 10.1W. The dual-band 2x2 MIMO antennas offer excellent coverage with antenna gains of 4.9 dBi (2.4 GHz) and 5.7 dBi (5 GHz). Backed by a 2-year warranty, with 24/7 phone support for the first 90 days and lifetime community support, the AP22 offers long-term value and peace of mind for your network investment.
