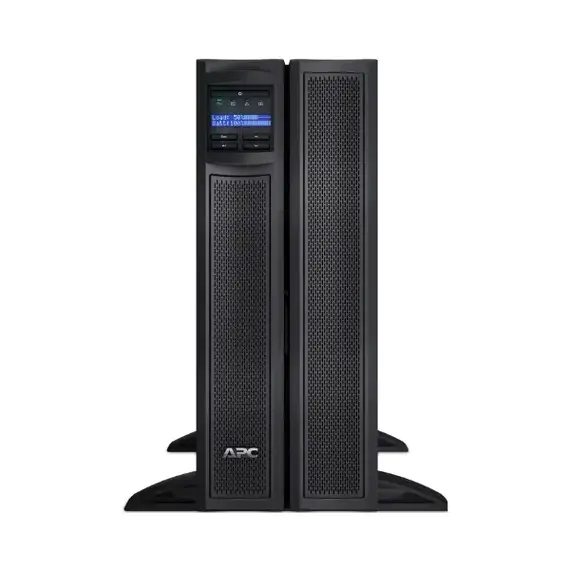

APC SMX2200HV Line Interactive Smart-UPS X, 2200VA/1980W, Rack/tower convertible 4U, 200V-240V, SmartSlot, Extended runtime, Short depth

APC SMX2200HV Line Interactive Smart-UPS X - Description

2200VA/1980W, Rack/tower convertible 4U, 200V-240V, 8x C13+2x C19 IEC, SmartSlot, Extended runtime, Short depth

Reliable Power Protection for Critical Equipment:

APC SMX2200HV Line Interactive Smart-UPS X is a high-performance uninterruptible power supply (UPS) designed to provide reliable and intelligent network power protection. This UPS is ideal for servers, point-of-sale systems, routers, switches, hubs, and other network devices, ensuring they remain powered during outages and fluctuations. With a capacity of 2200VA/1980W, this UPS is suitable for both small and medium-sized IT infrastructures, offering scalable runtime options.

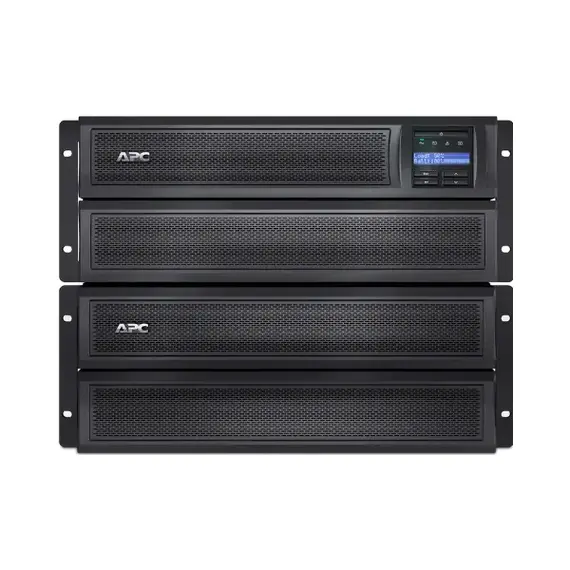

For extended runtime, up to 10 external battery packs (SMX120BP) can be added.

Key Features and Compatibility for Efficient Power Management:

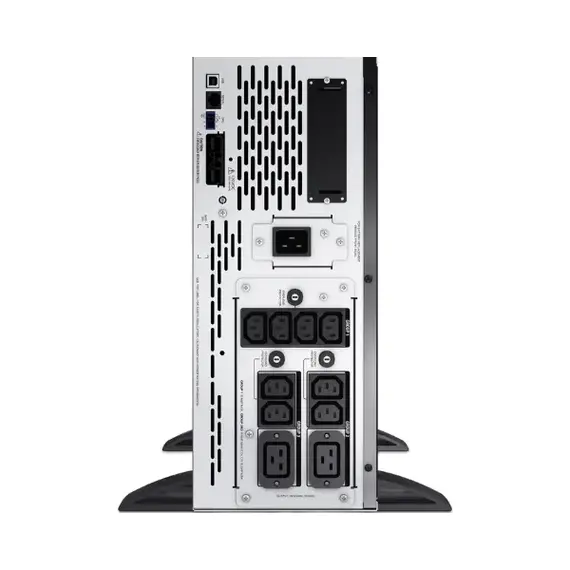

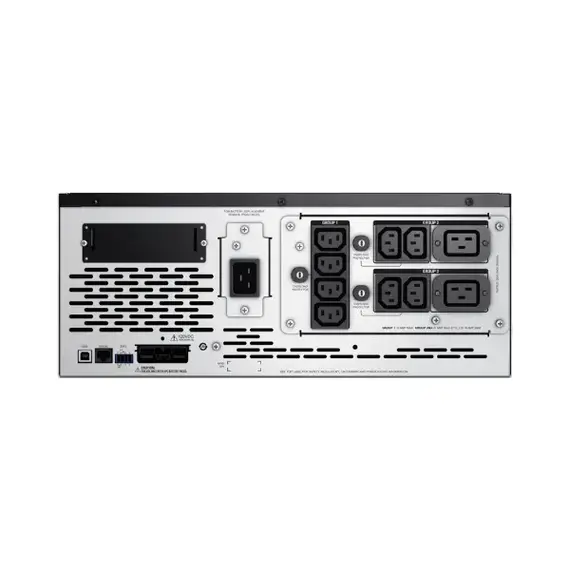

This UPS offers versatile connectivity options, featuring 8 IEC 320 C13 outlets and 2 IEC 320 C19 outlets, providing ample room for various devices. The SmartSlot allows for additional customization with compatible accessories such as sensors and service bypass panels. The unit’s compact design supports both rack and tower configurations, with a short depth of 48.3 cm, making it suitable for space-constrained environments. It also comes with mounting support rails for easy installation.

Input and Output Specifications for Seamless Operation:

The APC SMX2200HV is designed for operation with a range of input voltages, including 208V, 220V, and 240V. Its output also supports the same voltage range, ensuring compatibility with various devices. With an input connection type of IEC 320 C20 and an output of 8x C13 and 2x C19, the UPS guarantees flexible connectivity for different power needs. The UPS ensures clean and stable power through its line-interactive design, which reduces harmonic distortion to under 5% and supports both 50Hz and 60Hz frequencies.

Efficient Battery Management and Extended Runtime:

The APC Smart-UPS X is equipped with a lead-acid battery (SMX120BP) that offers a 3-5 year lifespan, with a 3-hour recharge time. The extended runtime option allows for uninterrupted power to connected devices during longer outages, ensuring minimal downtime. The UPS’s battery life is enhanced by its efficient power charger, which operates at a 233W rated capacity. The unit comes with a user-friendly LCD display for monitoring battery status, power usage, and system performance.

Environmentally-Friendly and Certified for Safety Standards:

Designed with energy efficiency in mind, the APC SMX2200HV complies with international safety certifications such as CE, EAC, and IRAM. It also meets environmental standards with noise suppression and low harmonic distortion, ensuring minimal interference with other devices. The UPS operates effectively in a wide temperature range from 0°C to 40°C and can be stored in conditions as low as -15°C. Additionally, it operates at altitudes up to 10,000 feet, making it suitable for various environments.

Compact and Robust Design for Heavy Duty Performance:

With a net weight of 38.56 kg and a height of 43.2 cm, the APC SMX2200HV is a sturdy and compact solution for demanding IT infrastructure. It is designed for both rack-mounted and two-post installations, offering flexible mounting options for diverse setups. The device also features surge protection, filtering, and noise suppression, making it a reliable choice for sensitive electronic equipment in both commercial and industrial settings.

Warranty and Long-Term Value for Your Investment:

APC backs the SMX2200HV with a 2-year warranty, providing peace of mind and long-term support for your investment. This UPS unit ensures that your critical equipment remains operational, protecting against power disruptions and improving overall reliability for your network infrastructure.
