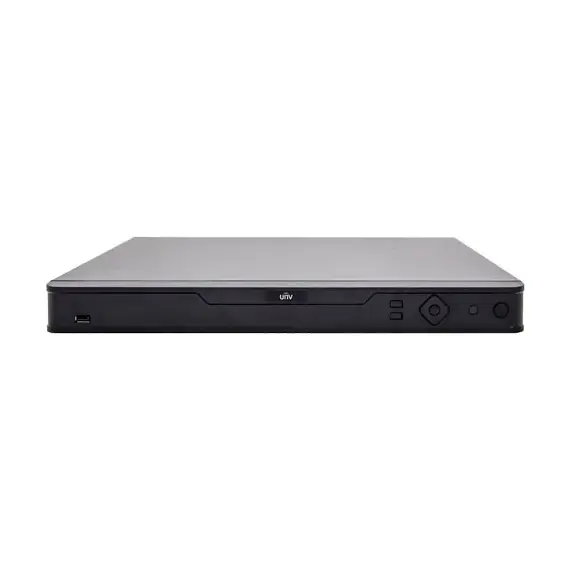

UNV NVR304-32E-B

32 Channel 4 HDDs 4K NVR

 Support Ultra 265/H.265/H.264 video formats

 16/32-channel input

 Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T

 Support 2-ch HDMI, 1-ch VGA, HDMI2 at up to 4K (3840x2160) resolution

 HDMI1/VGA and HDMI2 independent outputs provided

 Up to 12 Megapixels resolution recording

 4 SATA HDDs, Up to 10TB for each HDD(the environment temperature should be below 30℃ for 8TB~10TB disk)

 Various fisheye dewarping modes for live view and playback for both web interface and GUI ANR technology to enhance the storage reliability when the network is disconnected

 Support cloud upgrade

 Support Live view, playback, PTZ Control, Camera setting via local network

 Support Real-time Smart Function

 Support Day and Night time Smart Function

Model NVR304-16E-B/ NVR304-32E-B

Video/Audio Input

IP Video Input 16-ch 32-ch

Two-way Audio Input 1-ch, RCA

Network

Incoming Bandwidth 320Mbps

Outgoing Bandwidth 320Mbps

Remote Users 128

Protocols IPv4, IPv6, HTTP, SMTP, SNMP, RTSP, P2P, UPnP, NTP, DHCP, PPPoE

General Function IP Address Filtering, ARP Protection, Cyber Security Data Protection

Video/Audio Output

HDMI/VGA Output HDMI1/VGA:

1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

HDMI2:

4K (3840x2160)/60Hz, 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Audio Output 1-ch, RCA

Synchronous Playback 16-ch

Corridor Mode Screen 3/4/5/7/9/10/12/16 3/4/5/7/9/10/12/16/32

Decoding

Decoding format Ultra 265, H.265, H.264

Live view/Playback 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Capability 3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, 16 x 1080p@30 3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, 16 x 1080p@30, 32 x 960p@25

Hard Disk

SATA 4 SATA interfaces

Capacity up to 10TB for each HDD(the environment temperature should be below 30℃ for 8TB~10TB disk)

Smart

VCA Detection Face detection, Intrusion detection, Cross line detection, Object removal, Object abandon, Audio

detection, Defocus detection, Scene change detection, Auto tracking

VCA Search Face search, Behavior search

Statistical Analysis People counting

External Interface

Network Interface 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces

Serial Interface 1 x RS485

USB Interface Front panel: 1 x USB2.0

Rear panel: 1 x USB2.0, 1 x USB3.0

Alarm In 16-ch

Alarm Out 4-ch

General

Power Supply 12V DC

Power Consumption: ≤ 12W (without HDD)

Working Environment -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)

Dimensions (W×D×H) 440mm × 344mm× 50mm (17.3" × 13.5"×2.0")

Weight (without HDD) ≤ 3.14Kg (6.92lb)
