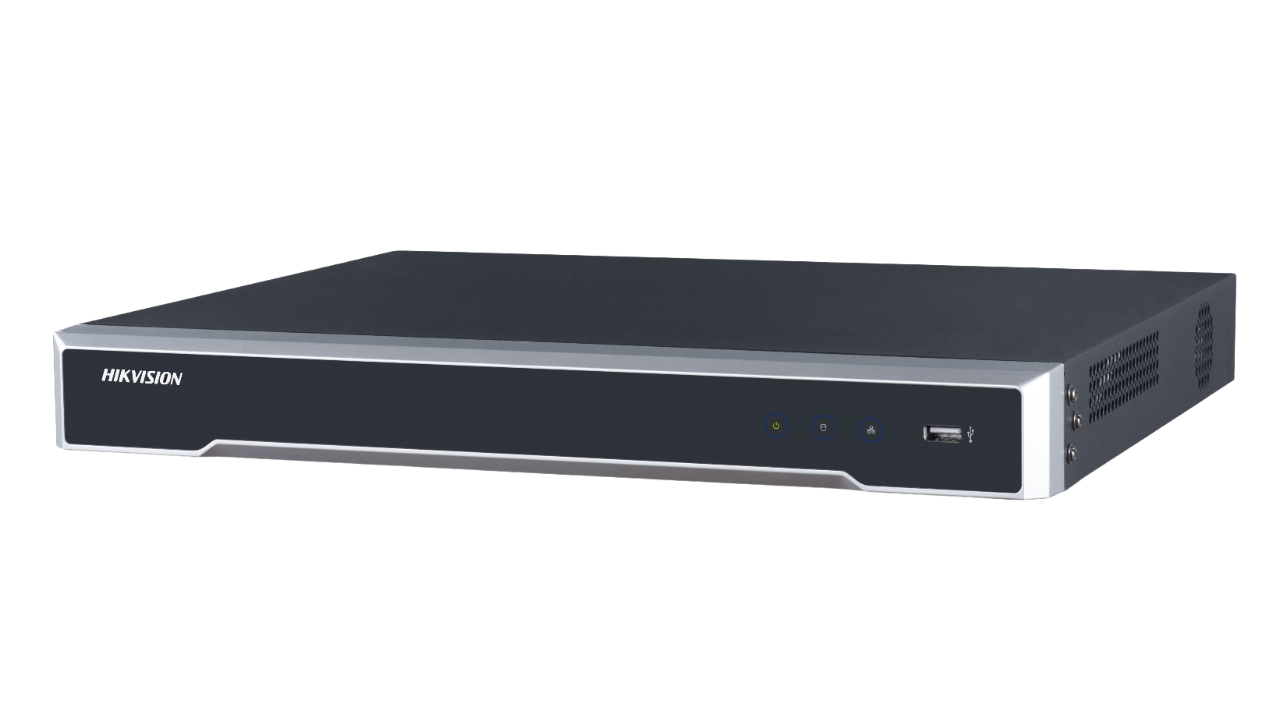

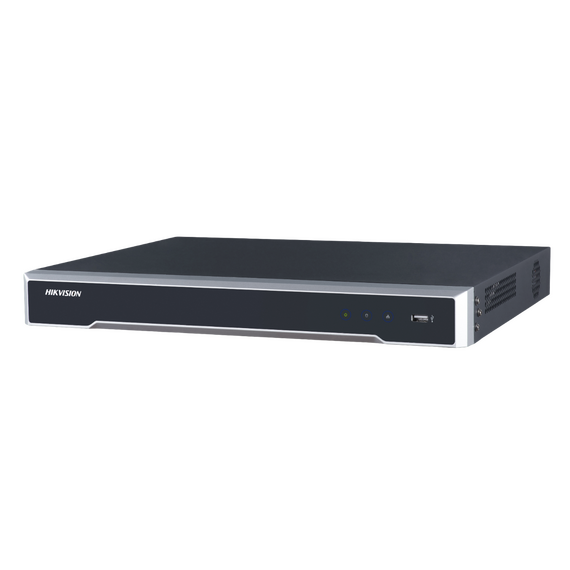

Hikvision DS-7608NI-Q2

8-ch 1U 4K NVR

Up to 8-ch IP camera inputs

H.265+/H.265/H.264+/H.264 video formats

Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity

Up to 80 Mbps incoming bandwidth

Motion Detection 2.0

Human/Vehicle Analysis

4-ch

Video And Audio

IP Video Input

8-ch

Incoming Bandwidth

80 Mbps

Outgoing Bandwidth

80 Mbps

HDMI Output

1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz

VGA Output

1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

Audio Output

1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 k Ω)

Video Output Mode

HDMI/VGA simultaneous output

Decoding

Decoding Format

H.265+,H.265,H.264+,H.264

Recording Resolution

8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

Synchronous Playback

8-ch

Decoding Capability

1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)

Stream Type

Video, Video & Audio

Network

Remote Connection

32

Network Protocol

TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

Network Interface

1, RJ-45 10/100 Mbps self-adaptive Ethernet interface

Auxiliary Interface

SATA

2 SATA interfaces

Capacity

Up to 8 TB capacity for each disk

Alarm In/Out

N/A (4/1 is optional)

USB Interface

2 × USB 2.0

General

Power Supply

12 VDC, 3.33 A

Consumption

≤ 15 W (without HDD)

Working Temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working Humidity

10 to 90 %

Chassis

1U chassis

Dimension (W × D × H)

385 × 315 × 52 mm (15.2"× 12.4" × 2.0")

Weight

≤ 1.8 kg (without HDD, 4.0 lb.)
