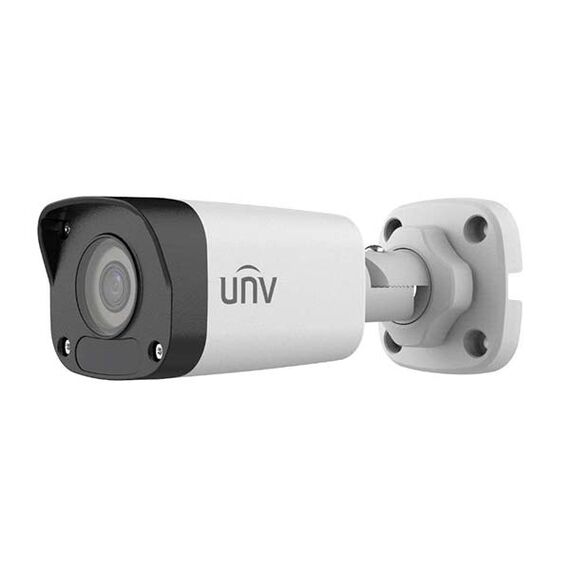

UNV IPC2122LB-SF40-A

2MP 4mm Mini Fixed Bullet Network Camera

High quality image with 2MP, 1/2.8"CMOS sensor

2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps

Ultra 265, H.265, H.264

Smart IR, up to 30m (98ft) IR distance

Day/night functionality

2D/3D DNR (Digital Noise Reduction)

IP67 protection

Support PoE power supply

3-Axis

Camera

Lens [email protected]

DORI Distance   Observe (m) Recognize (m) Identify (m)

17.4 8.7 4.3

24.8 12.4 6.2

Angle of View (H) 87.5°

Angle of View (V) 46.3°

Angle of View (O) 92.4°

Adjustment angle Tilt: 0° ~ 90° Rotate: 0° ~ 360°

Shutter Auto/Manual, 1 ~ 1/100000s

Minimum Illumination Colour: 0.01Lux (F2.0, AGC ON)

0Lux with IR on

Digital noise reduction 2D/3D DNR

Day/Night IR-cut filter with auto switch (ICR)

S/N >52dB

IR Range Up to 30m (98ft) IR range

Wavelength 850nm

IR On/Off Control Auto/Manual

Defog Digital Defog

WDR DWDR

Video

Video Compression Ultra 265, H.265, H.264

H.264 code profile Baseline profile, Main profile, High profile

Frame Rate Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps

Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max
30fps;

Video Bit Rate 128 Kbps~16 Mbps

OSD Up to 4 OSDs

Privacy Mask Up to 4 areas

ROI Up to 8 areas

Motion Detection Up to 4 areas


White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Digital noise reduction 2D/3D DNR

Smart IR Supported

Flip Normal/Vertical/Horizontal/180°

Dewarping N/A

HLC Supported

BLC Supported

Network

Protocols IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP

Compatible Integration API

Client EZStation

EZView

EZLive

Web Browser Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+

Interface

Network 10/100M Base-TX Ethernet

Certifications

Certifications CE: EN 60950-1

UL: UL60950-1

FCC: FCC Part 15

General

Power DC 12V±25%, PoE (IEEE 802.3af)

Power consumption: Max 5.5W

Dimensions (L × W × H) 161 × 63 ×62mm (6.4” × 2.5” × 2.4”)

Net Weight 0.27kg (0.60lb)

Material Metal + Plastic

Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Surge Protection 4KV

Ingress Protection IP67

Reset Button N/A
