يو ني فيو IPC2122LB-SF40-A كاميرا مراقبه 2 ميجا بكسل 4 مم
الرجاء تسجيل الدخول حتى نتمكن من إخطارك بالرد
الماركة
UNV
Part Number
IPC2122LB-SF28(40)-A
Camera Technology
IP CAMERA
Indoor / outdoor
OUTDOOR
مواصفات الدي في ار
Model
IPC2122LB-SF40-A
Camera
Sensor
1/2.8", 2.0 megapixel, progressive scan, CMOS
Lens
DORI Distance Lens (mm)
4.0
DORI Distance Detect (m)
62.1
DORI Distance Identify (m)
6.2
DORI Distance Observe (m)
24.8
DORI Distance Recognize (m)
12.4
Angle of View (H)
87.5°
Angle of View (O)
92.4°
Angle of View (V)
46.3°
Adjustment angle
Rotate: 0° ~ 360° , Tilt: 0° ~ 90°
Shutter
Auto/Manual, 1 ~ 1/100000s
Minimum Illumination
Colour: 0.01Lux ( F2.0, AGC ON) 0Lux with IR
Day/Night
IR-cut filter with auto switch (ICR)
Digital noise reduction
2D/3D DNR
IR Range
Up to 30m (98ft) IR range
Wavelength
850nm
IR On/Off Control
Auto/Manual
Defog
Digital Defog
WDR
DWDR
Video
Video Compression
Ultra 265, H.265, H.264
H.264 code profile
Baseline profile, Main profile, High profile
Frame Rate
Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate
128 Kbps~16 Mbps
OSD
Up to 4 OSDs
Privacy Mask
Up to 4 areas
ROI
Up to 8 areas
Motion Detection
Up to 4 areas
White Balance
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction
2D/3D DNR
Smart IR
Supported
Flip
Normal/Vertical/Horizontal/180°
Dewarping
N/A
HLC
Supported
BLC
Supported
Network
Protocols
IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP
Compatible Integration
API
Client
EZStation, EZView, EZLive
Web Browser
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+
Interface
Network
10/100M Base-TX Ethernet
General
Power
DC 12V±25%, PoE (IEEE 802.3af)
Power consumption
Max 5.0W
Dimensions (Ø x H)
Φ109 x 81mm (Ø4.3” x 3.2”)
Net Weight
0.35kg (0.77lb)
Material
Metal + Plastic
Working Environment
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection
4KV
Ingress Protection
IP67
Vandal Resistant
IK10
Reset Button
N/A
IPC2122LB-SF28(40)-A

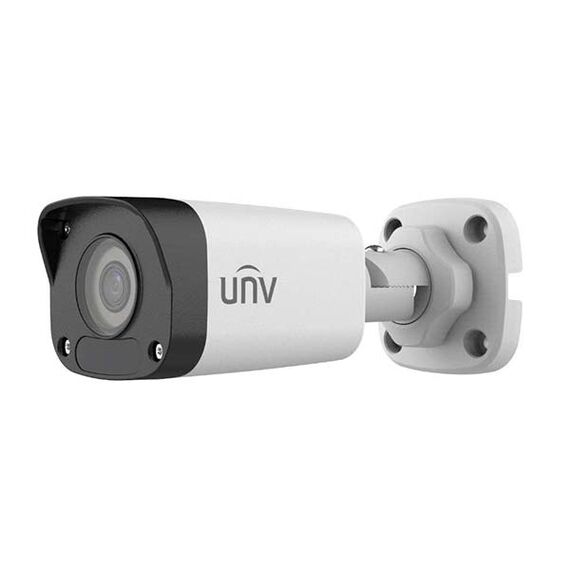

2MP Mini Fixed Bullet Network Camera UNV
- High quality image with 2MP, 1/2.8"CMOS sensor
- 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
- Ultra 265, H.265, H.264
- Smart IR, up to 30m (98ft) IR distance
- Day/night functionality
- 2D/3D DNR (Digital Noise Reduction)
- IP67 protection
- Support PoE power suppl
- 3-Axis
