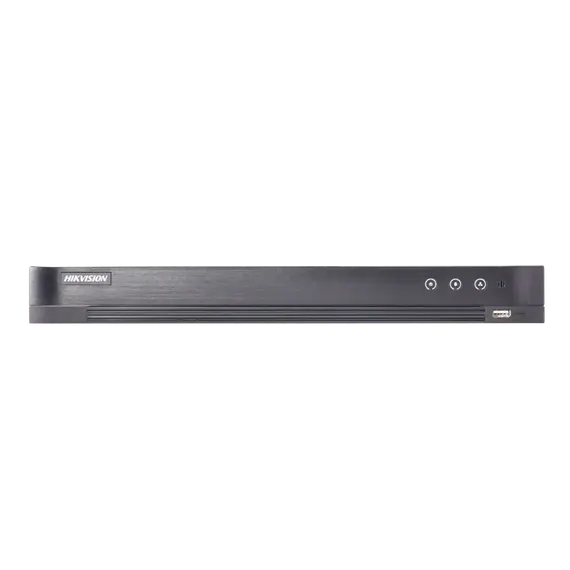

HikVision DS-7216HUHI-K2

16-ch 5 MP 1U H.265 DVR

16 channels and 2 HDDs 1U DVR

Efficient H.265 pro+ compression technology

Encoding ability up to 8 MP @ 8 fps, 5 MP @ 12 fps

5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)

Up to 32 network cameras can be connected

Recording

Video Compression

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution

8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF

Frame Rate

Main stream: ,8 MP@8fps/5 MP@12fps/4 MP@15fps/3 MP@18fps,1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF/CIF@25fps (P)/30fps (N)

Video Bit Rate

32 Kbps to 10 Mbps

Dual Stream

Support

Stream Type

Video, Video & Audio

Audio Compression

G.711u

Audio Bit Rate

64 Kbps

Video And Audio

IP Video Input

16-ch (up to 32-ch) Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input

16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

AHD Input

5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30

HDCVI Input

4 MP, 1080p25, 1080p30, 720p25, 720p30

CVBS Input

PAL/NTSC

Audio Input

4-ch, RCA (2.0 Vp-p, 1 KΩ)

Audio Output

1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Synchronous Playback

16-ch

HDTVI Input

8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25

VGA/HDMI Output

VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,HDMI: 1-ch, 4K (3840 × 2160)/30Hz, ,2K (2560 × 1440)/60Hz,,1920 × 1080/60Hz, 1280 × 1024/60Hz,
,1280 × 720/60Hz, 1024 × 768/60Hz

CVBS Output

1-ch, BNC (1.0 Vp-p, 75 Ω),

Network

Remote Connections

128

Network Protocols

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

Network Interface

1, RJ45 10M/100M/1000M self-adaptive Ethernet interface

Auxiliary Interface

SATA

2 SATA interfaces

Capacity

Up to 10 TB capacity for each disk

Alarm In/Out

16/4

USB Interface

Front panel: 1 × USB 2.0,Rear panel: 1 × USB 3.0

Serial Interface

RS-485 (half-duplex)

General

Power Supply

12 VDC

Working Temperature

-10 °C to +55 °C (+14 °F to +131 °F)

Working Humidity

10% to 90%

Dimensions (W × D × H)

380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)

Consumption (Without HDD)

≤ 25 W

Weights (Without HDD)

≤ 2 kg (4.4 lb)
