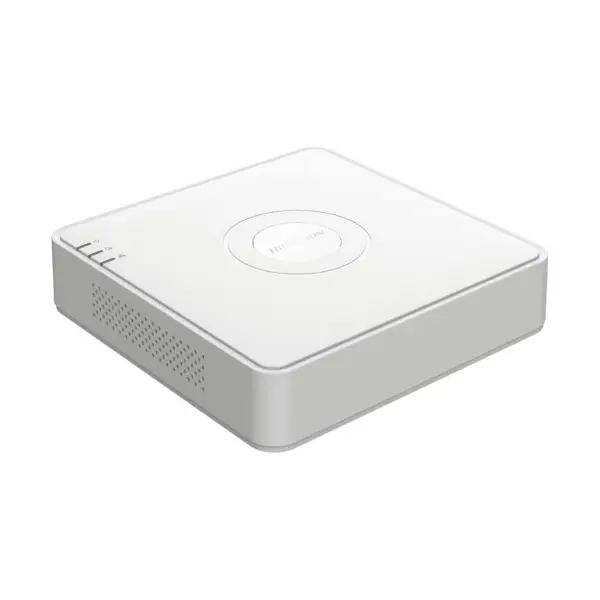

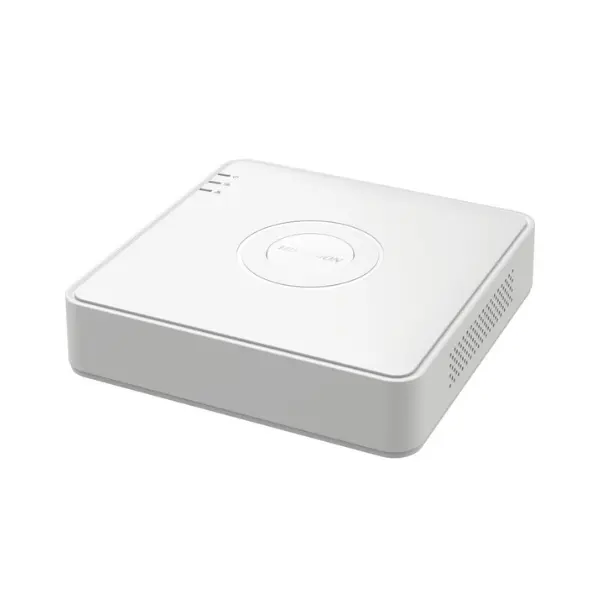

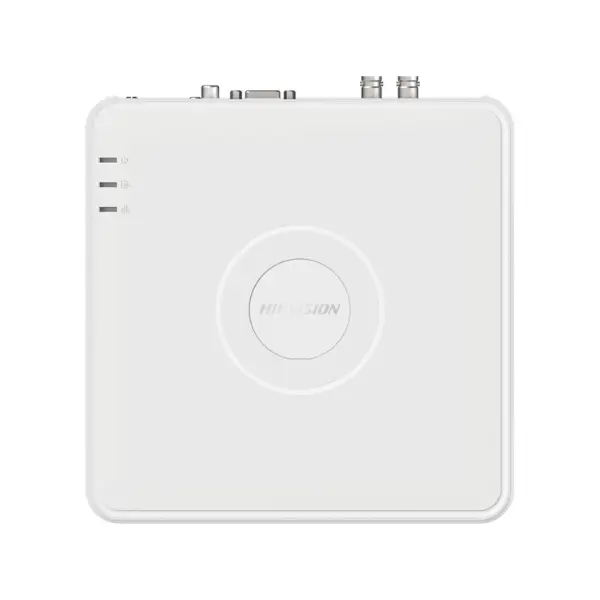

Hikvision DS-7104HGHI-M1/T 4-ch 1080p Lite Mini 1U H.265 DVR

Hikvision DS-7104HGHI-M1/T - Description

4-ch 1080p Lite Mini 1U H.265 DVR

Compact 4-Channel DVR with Versatile Video Input Compatibility:

The Hikvision DS-7104HGHI-M1/T is a powerful yet compact 4-channel DVR designed for efficient video surveillance in homes, shops, and small businesses. Supporting HDTVI, AHD, CVI, CVBS, and IP video formats, this DVR offers flexible integration with various camera types. It can handle up to 4 analog cameras and 1 IP camera by default, extendable to 5 IP channels, allowing seamless hybrid recording solutions.

Advanced H.265 Pro+ Compression for Efficient Storage:

This DVR utilizes H.265 Pro+ video compression technology, which significantly reduces storage and bandwidth usage without compromising video quality. Compared to traditional H.264, H.265 Pro+ delivers up to 75% more efficiency, enabling longer recording times and better overall system performance. This makes it ideal for systems that need to operate continuously while minimizing storage costs.

Enhanced Motion Detection 2.0 with Human and Vehicle Classification:

Equipped with Deep Learning-based Motion Detection 2.0, the DS-7104HGHI-M1/T can intelligently differentiate between humans, vehicles, and irrelevant motion such as animals or swaying branches. This technology reduces false alarms and helps you focus on real security threats. Users can also quickly search recordings by object or event type, improving playback efficiency.

High-Definition Video Output with Audio Over Coax:

The DVR offers HDMI and VGA outputs supporting up to 1080p resolution, delivering crisp visuals on monitors and TVs. It also features audio over coaxial on all analog channels, and supports two-way audio via the first channel, making it perfect for remote communication and real-time monitoring environments.

Flexible Recording & Playback with Multi-Resolution Support:

The DS-7104HGHI-M1/T supports multiple recording resolutions, including 1080p Lite, 720p, and CIF, with flexible frame rates up to 30fps. Users can enjoy synchronous playback of 4 channels, making it easy to review multiple views simultaneously. Bitrates range from 32 Kbps to 4 Mbps, allowing for granular control over storage and quality.

Reliable Connectivity and Storage Expansion Options:

Featuring a 10/100 Mbps Ethernet port, this DVR supports remote access via Hik-Connect, DDNS, and HTTPS, among other protocols. It has one SATA port supporting up to 4TB of HDD storage and two USB 2.0 ports for backup or mouse connectivity. Its fanless design and low power consumption (<10W) ensure quiet, efficient operation.

Durable, Space-Saving Design Built for Versatility:

Measuring just 200 x 200 x 48 mm, this mini 1U DVR is ideal for environments where space is limited. Operating in temperatures from -10°C to 55°C and humidity up to 90%, it’s built to perform reliably across a range of conditions. With a weight of just 0.8 kg, it’s also easy to install in tight or discreet spaces.
