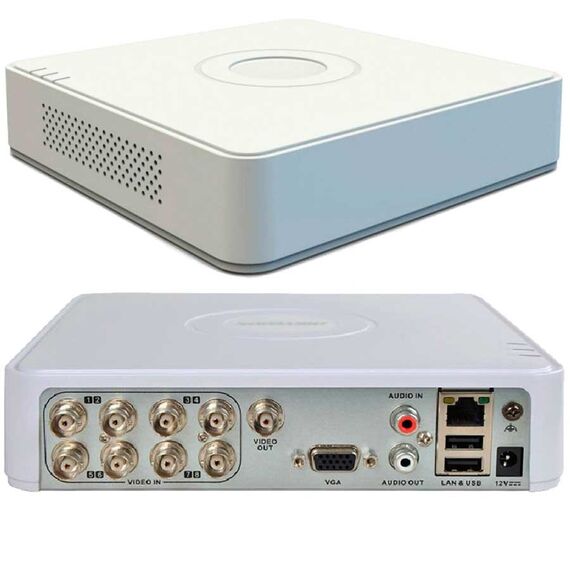

HikVision DS-7108HQHI-K1 8-ch 1080p Mini 1U H.265 DVR

HikVision DS-7108HQHI-K1 -Description

8-ch 1080p Mini 1U H.265 DVR

HikVision DS-7108HQHI-K1 Overview:

The HikVision DS-7108HQHI-K1 8-Channel Mini DVR is a compact yet powerful video recording solution designed for professional and residential surveillance systems. Supporting up to 8 analog cameras and additional IP cameras, this Mini 1U DVR delivers reliable performance in a small footprint. With support for multiple signal formats including HDTVI, AHD, HDCVI, CVBS, and IP, it offers excellent flexibility for upgrading or expanding existing CCTV installations.

Advanced Video Compression and Recording Performance:

Equipped with H.265 Pro+ compression technology, the DS-7108HQHI-K1 significantly reduces storage usage and bandwidth consumption without compromising video quality. It supports encoding up to 1080p at 15 fps, ensuring smooth and clear video recording. The DVR supports multiple resolutions up to 4 MP Lite and 3 MP, with adaptive frame rates optimized for both PAL and NTSC systems. This makes it ideal for long-term recording with efficient disk usage.

Multi-Signal and IP Camera Compatibility:

This HikVision DVR supports five adaptive signal inputs, allowing seamless integration of different camera types. In enhanced IP mode, users can connect up to 12 network cameras with resolutions up to 6 MP, making it a versatile hybrid solution. With an incoming bandwidth of 48 Mbps and total network bandwidth of 96 Mbps, it ensures stable and high-quality video streaming across all channels.

Audio, Display, and Playback Capabilities:

The DS-7108HQHI-K1 supports 8-channel synchronous playback, allowing users to review multiple camera feeds simultaneously. Audio support includes RCA audio input/output, two-way audio, and coaxial audio transmission. For display, it features HDMI and VGA outputs supporting up to 1920 × 1080 resolution, ensuring crisp and clear monitoring on modern displays.

Storage, Network, and System Reliability:

The DVR includes one SATA interface supporting hard drives up to 6 TB, providing ample storage for continuous recording. Network connectivity is handled via a 10/100 Mbps Ethernet port, supporting protocols such as ONVIF, Hik-Connect, HTTPS, DDNS, and NTP for secure remote access. With low power consumption (≤12 W), a durable metal housing, and reliable operation in temperatures from -10°C to +55°C, the HikVision DS-7108HQHI-K1 is a dependable and efficient surveillance recording solution ideal for homes, offices, and small to medium-sized businesses.
