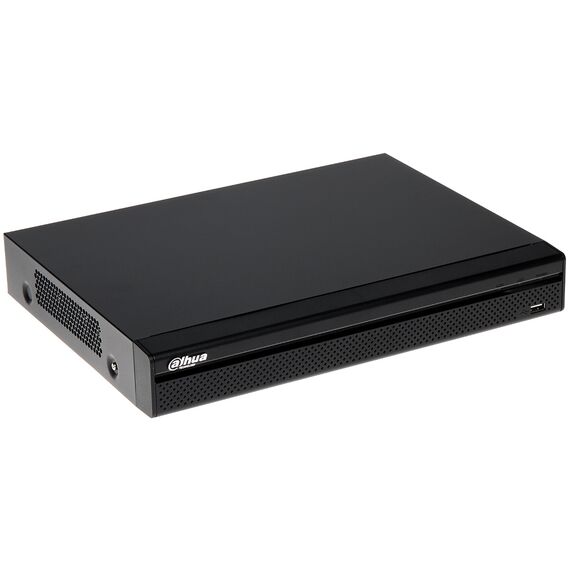

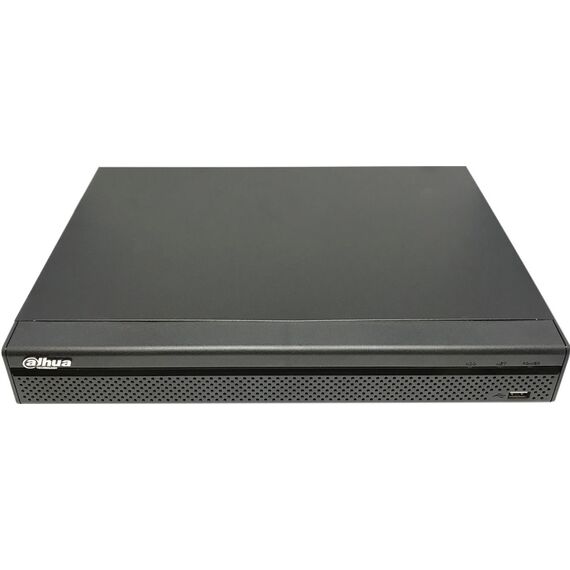

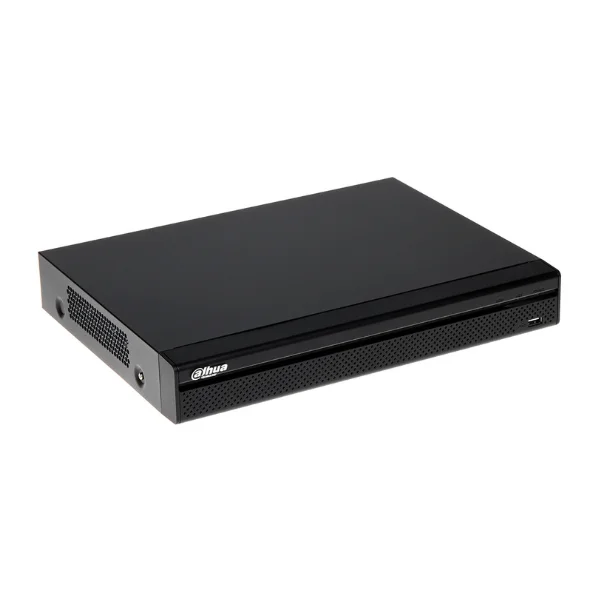

Dahua DH-XVR5104HE-X 4-Channel 1080P Mini 1U DVR

Dahua DH-XVR5104HE-X - Description

4-Channel 1080P Mini 1U DVR

High-Performance 4-Channel Penta-brid DVR:

The Dahua DH-XVR5104HE-X 4-Channel DVR is a powerful and cost-effective video recording solution designed for small to medium surveillance systems. Built with Dahua’s advanced technology, this digital video recorder supports HDCVI, AHD, TVI, CVBS, and IP cameras, making it a flexible choice for upgrading existing analog security systems without replacing current cameras. Its compact Mini 1U design makes it ideal for desktop installations while still delivering reliable performance and efficient video management.

Advanced Smart H.265+ Video Compression:

Equipped with Smart H.265+ and H.265 compression technology, the DVR significantly reduces bandwidth and storage requirements while maintaining excellent video quality. Compared to traditional H.264 compression, Smart H.265+ can reduce the bit rate and storage usage by up to 90%, allowing users to store more footage without increasing hard drive capacity. This technology helps lower operational costs while supporting high-resolution surveillance environments.

Multi-Format Camera Compatibility:

One of the key advantages of this DVR is its penta-brid compatibility, allowing it to work with multiple camera technologies. The system automatically detects camera signals including HDCVI, AHD, TVI, and CVBS, making installation simple and user-friendly. It supports up to 4 analog channels and can expand to 6 IP camera channels, with each IP channel supporting resolutions up to 6MP. This versatility makes the device suitable for both analog and hybrid surveillance systems.

Intelligent Video Analytics and Smart Search:

The Dahua DH-XVR5104HE-X DVR includes built-in intelligent video analytics to improve monitoring efficiency. Features such as Tripwire detection, abandoned object detection, and missing object detection help security teams identify suspicious activities quickly. Additionally, the Smart Search function allows users to draw a region during playback to quickly locate motion events, saving valuable time when reviewing recordings.

POS Integration and Face Detection:

This DVR also includes POS (Point of Sale) integration, which overlays transaction data directly onto recorded video. This feature is especially useful in retail environments where businesses need to verify transactions or investigate discrepancies. Furthermore, Face Detection technology enables the system to identify and capture facial information from video streams, enhancing security monitoring in commercial and public spaces.

Long Distance Transmission and Reliable Operation:

The HDCVI technology allows video transmission over long distances without signal degradation. The system supports up to 700 meters for 4MP/4K cameras, 800 meters for 1080P cameras, and 1200 meters for 720P cameras using coaxial cable. Additionally, the DVR features a smart fan design that automatically adjusts based on CPU temperature, reducing noise and improving overall device longevity.

Flexible Storage and Remote Access:

The DVR supports one SATA hard drive with up to 10TB capacity, allowing long-term video storage. It also provides remote monitoring through smartphones, tablets, and computers using network protocols such as HTTP, RTSP, and DDNS. With support for up to 128 simultaneous users, security administrators can easily manage surveillance systems from multiple locations.
