Msi MAG Z390 Tomahawk LGA1151 DDR4 ATX Motherboard

Msi MAG Z390 Tomahawk - Description

LGA1151 DDR4 ATX Motherboard

Powerful Processor Support:

MSI MAG Z390 Tomahawk motherboard is built to deliver exceptional performance for gamers, creators, and power users. Designed with the Intel® Z390 chipset, it supports Intel® Core™ 9000 Series processors as well as 8th Gen Intel® Core™, Pentium® Gold, and Celeron® CPUs for the LGA 1151 socket. With this wide compatibility, users can choose from a variety of processors to match their performance needs, making it a reliable foundation for high-end gaming rigs or productivity systems.

High-Speed DDR4 Memory Performance:

This motherboard comes with four DDR4 memory slots, supporting up to 128GB of system memory. It is optimized for extreme memory speeds, ranging from 2133MHz up to 4400MHz (OC), ensuring smooth multitasking, faster load times, and enhanced gaming performance. Dual-channel architecture and Intel® Extreme Memory Profile (XMP) support allow for easy overclocking and stable operation even at high speeds.

Expandability and Multi-GPU Support:

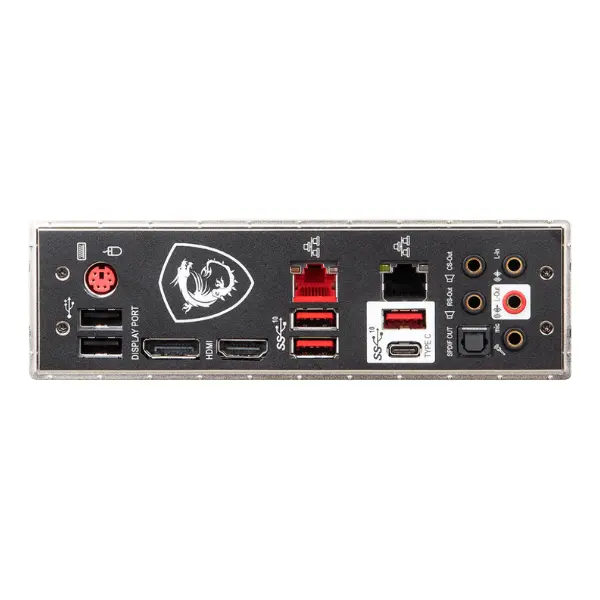

Equipped with three PCIe 3.0 x16 slots and two PCIe 3.0 x1 slots, the MSI Z390 Tomahawk gives users plenty of options for graphics cards and expansion cards. It supports 2-Way AMD® CrossFire™ technology, allowing multiple GPUs for enhanced gaming visuals and faster rendering. Additionally, the onboard graphics outputs include HDMI™ 1.4 and DisplayPort 1.2, supporting resolutions up to 4K, ideal for high-quality visuals when using Intel® integrated graphics.

Fast Storage and Intel® Optane™ Ready:

Storage flexibility is a major highlight of this motherboard. It features six SATA 6Gb/s ports and dual M.2 slots that support both PCIe 3.0 x4 and SATA SSDs. With Intel® Optane™ Memory support, users can accelerate system performance for faster boot times and application launches. RAID 0, 1, 5, and 10 configurations are supported for SATA storage, while RAID 0 and 1 are available for PCIe-based M.2 drives, offering both speed and data redundancy.

Advanced Connectivity and Networking:

The MSI MAG Z390 Tomahawk offers an impressive selection of USB connections, including four USB 3.1 Gen2 ports (featuring one Type-C and three Type-A), four USB 3.1 Gen1, and six USB 2.0 ports. Networking is powered by dual Intel® Gigabit LAN controllers (I219-V and I211-AT), ensuring stable, fast, and low-latency online gaming or streaming experiences.

Premium Audio and Customization Features:

Audio is delivered through the Realtek® ALC892 codec, supporting 7.1-channel high-definition sound with optical S/PDIF output for a rich audio experience. For customization, the motherboard includes multiple 4-pin RGB and 3-pin addressable LED connectors, giving users control over lighting effects to match their build aesthetics.

Durable Design and User-Friendly Layout:

Built in a standard ATX form factor (24.3 cm x 30.4 cm), the MSI MAG Z390 Tomahawk offers nine mounting holes for secure installation. It is designed with multiple fan headers, including dedicated connectors for CPU and water pumps, ensuring efficient cooling for overclocked builds. Compatible with Windows® 10 64-bit, this motherboard is a reliable choice for building a high-performance gaming or professional PC.
