لوحه ام (ام اس اي) زد 390 توماهوك

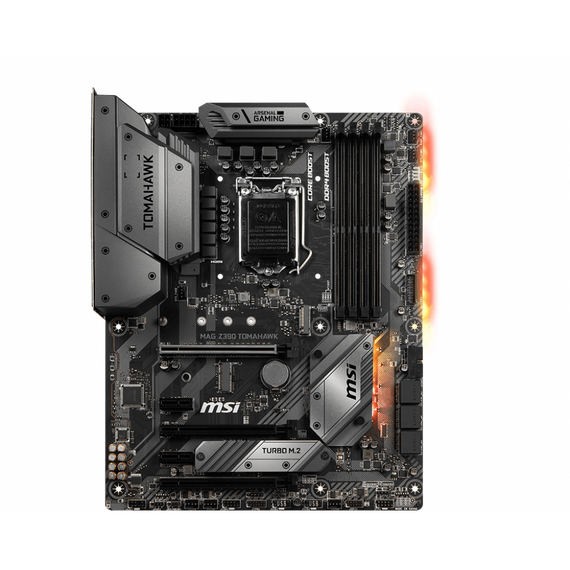

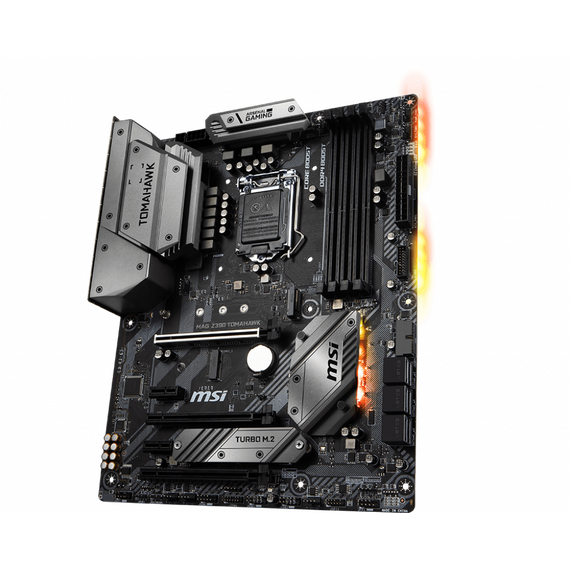

Model Name MAG Z390 TOMAHAWK
CPU Support Supports 9th/ 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors
CPU Socket LGA 1151
Chipset Intel® Z390 Chipset
Graphics Interface 3 x PCI-E 3.0 x16 slots Supports 2-way AMD® CrossFire™ Technology
Display Interface HDMI, DisplayPort – Requires Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR4-4400(OC)
USB Ports 4 x USB 3.1 (Gen2, A+C) + 4 x USB 3.1 (Gen1) + 6 x USB 2.0
LAN Intel® I219-V Gigabit LAN + Intel® I211-AT LAN
Audio 8-Channel (7.1) HD Audio with Audio Boost
Pre-installed I/O Shielding Better EMI protection and more convenience for installation
Dual LAN Dual premium network solution for both Intranet and Internet, offering a smooth gaming experience for effective network connection Intel® CNVi Ready Supports Intel® CNVi Wi-Fi, IEEE 802.11 AC wave2.
M.2 SHIELD FROZR Onboard M.2 thermal solution to keep M.2 SSDs safe while preventing throttling, making them run cooler & faster.
Intel Turbo USB 3.1 Gen2 Powered by Intel, ensure an uninterrupted connection with more stability and fastest USB speeds.
Extended Heatsink Design MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
Core Boost With premium layout and fully digital power design to support more cores and provide better performance.
DDR4 Boost Advanced technology to deliver pure data signals for the best gaming performance and stability.
