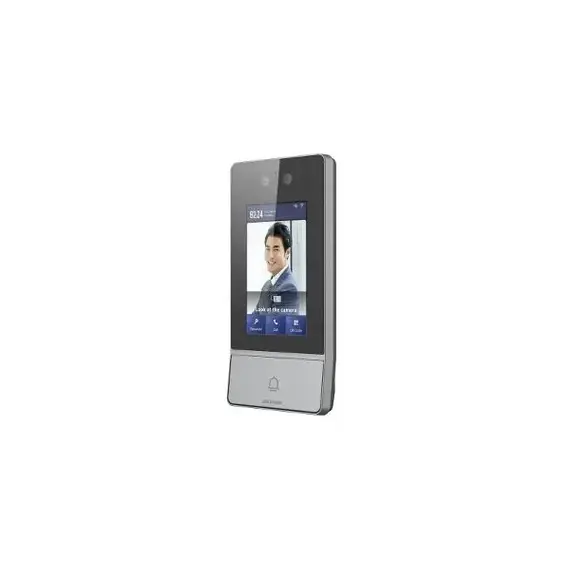

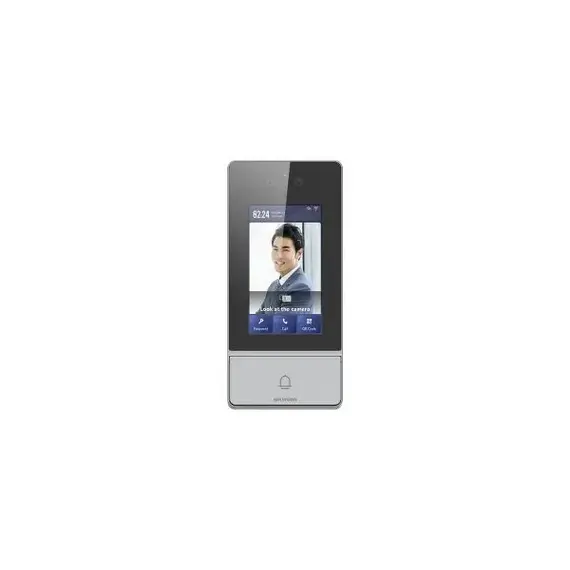

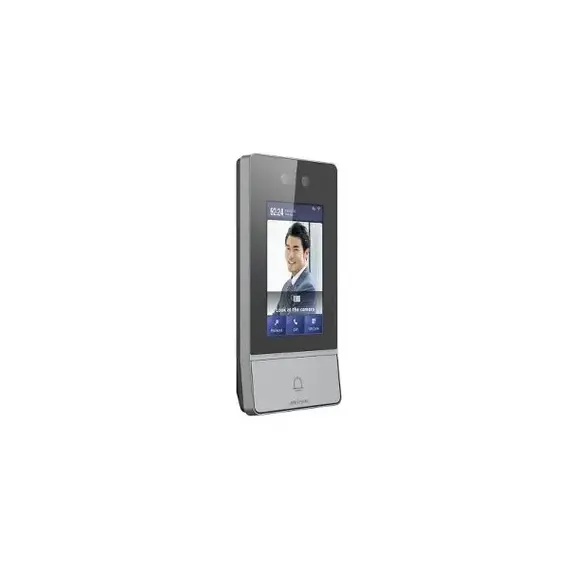

Hikvision DS-KV9503-WBE1

 Metal Vandal-resistant Facial Recognition IP Villa Door Station

Advanced Industrial Design and Robust Build:

The Hikvision DS-KV9503-WBE1 Villa Door Station features a modern industrial design with a robust metal build, ensuring durability and vandal resistance. It boasts an IK08 and IP65 rating, providing high protection against physical impacts and harsh weather conditions. This makes it an ideal choice for outdoor installations in various settings such as villas, apartments, and offices.

High-Resolution Display for Enhanced User Experience:

Equipped with a 4.3-inch colorful LCD screen with an 800 × 480 resolution, the access control offers a vibrant and clear display. The capacitive touch screen allows for easy operation and user-friendly interaction, enhancing the overall user experience. The high brightness of 425 cd/m² ensures visibility even in bright daylight conditions.

Efficient Video and Audio Capabilities:

The door station features dual 2 MP lenses with a wide field of view, offering comprehensive coverage with horizontal and vertical angles of 88° and 44°, respectively. The device supports 120 dB wide dynamic range (WDR) and IR light supplementation up to 3 meters, ensuring clear video in various lighting conditions. Audio-wise, it includes a built-in omnidirectional microphone and loudspeaker with noise suppression and echo cancellation, delivering clear and crisp sound.

Multiple Authentication Methods for Enhanced Security:

The Hikvision DS-KV9503-WBE1 supports multiple authentication methods, including face recognition, PIN code, card, QR code, and Bluetooth (reserved). The face recognition system is highly accurate with a recognition rate of over 99% and can identify individuals within 0.2 seconds from a distance of 0.3 to 2 meters. The card reading frequency is 13.56 MHz, ensuring compatibility with various access cards.

Extensive Capacity and Connectivity:

The facial recognition device boasts a substantial capacity, supporting up to 20,000 users, 10,000 faces, and 100,000 cards. It can be linked to up to 500 indoor stations and 16 sub door stations, providing a comprehensive access control solution for large facilities. Network connectivity is ensured through TCP/IP and RTSP protocols, with Wi-Fi support for IEEE802.11b/g/n standards. A 10/100 Mbps RJ-45 network interface ensures reliable and fast data transmission.

User-Friendly Features and Customization Options:

Designed with user convenience in mind, the hikvision access control includes a one-touch physical button for quick and easy calls. The device offers a customizable advertising interface, allowing property managers to display important messages or advertisements. This feature adds a layer of versatility to the device, making it suitable for commercial applications.

Easy Installation and Versatile Application Scenarios:

Thefacial recognition door station is designed for surface mounting, making it easy to install in various locations. Its robust construction and high protection ratings ensure reliable performance in outdoor environments. The device is well-suited for a range of application scenarios, including residential villas, apartment complexes, and office buildings, providing a secure and efficient access control solution.

Reliable Power Supply and Low Power Consumption:

The hikvision access control operates on a 12 VDC, 1.5 A power supply and supports standard PoE (IEEE802.3af), ensuring a reliable power source. With a power consumption of ≤ 6 W, the device is energy-efficient, contributing to lower operational costs. This makes it an environmentally friendly option for long-term use.

Multilingual Support and Wide Application Range:

The door station supports multiple languages, including English, French, Spanish, Russian, German, and more, catering to a diverse range of users. This multilingual support enhances its usability in various regions worldwide. Whether for residential or commercial use, the hikvision access control provides a robust and versatile solution.

the Hikvision DS-KV9503-WBE1 Metal Vandal-resistant Facial Recognition IP Villa Door Station is a state-of-the-art access control device designed for durability, efficiency, and user convenience. With its advanced features and robust construction, it offers a reliable and versatile solution for securing various types of properties.
